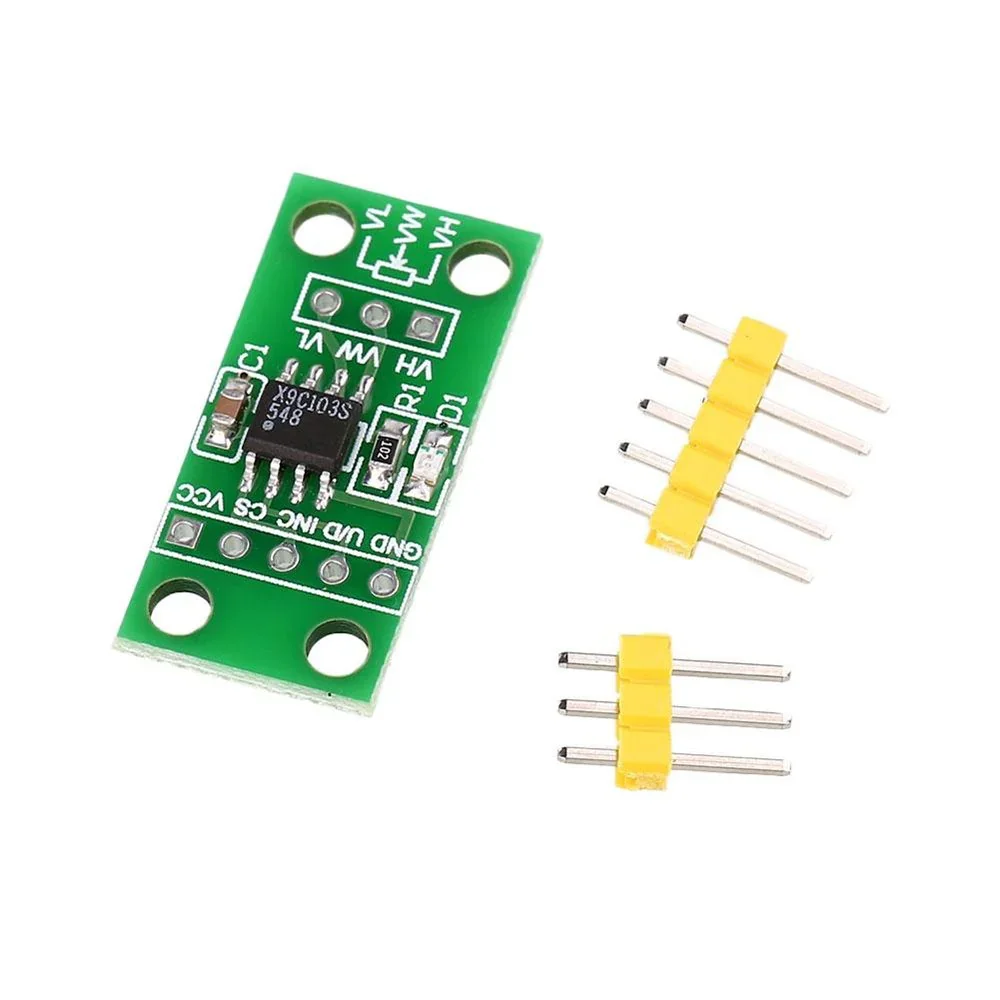

X9C103S DC 3-5V Digital Potentiometer Module

X9C103S DC 3-5V Digital Potentiometer Board offers a precise and electronically controllable method for resistance adjustment, serving as a modern replacement for bulky mechanical potentiometers. This board centers around the X9C103S IC, which utilizes a 100-tap array of resistors to provide a total end-to-end resistance of 10 kΩ. Consequently, digital control allows microcontrollers to remotely adjust voltage division or current limits with high accuracy. The X9C103S communicates via a simple 3-wire interface (CS, INC, U/D), making it exceptionally easy to integrate into embedded systems like Arduino and Raspberry Pi. Therefore, designers frequently use this board in automated calibration systems, volume controls, and programmable filters where electronic precision is critical.

Key Features:

• Digital Control: Provides 100 non-volatile wiper settings, offering fine control over the resistance value via a simple up/down counter interface.
• Total Resistance: The end-to-end resistance (R_total) is 10 kΩ, making it suitable for standard voltage divider and filter circuit configurations.
• Non-Volatile Memory: The wiper setting is automatically stored in non-volatile EEPROM memory, ensuring the resistance value remains set even after power-down.
• Low Power Consumption: Designed for low-voltage operation (3V to 5V), the IC minimizes power draw in battery-operated and portable applications.
• Simple Serial Interface: The 3-wire serial interface simplifies programming and minimizes the required I/O pins on the host microcontroller.

Technical Specifications:

• Total Resistance (R_AB): 10 kΩ (±20% tolerance)
• Number of Taps: 100 Taps (0 to 99)
• Wiper Resolution: ≈ 100 Ω per step
• Supply Voltage (V_CC): 3 V to 5 V DC
• Maximum Wiper Current (I_W): 4.4 mA (The current the wiper terminal can safely handle)
• Bandwidth: ≈ 5 MHz at R_W = 0 kΩ
• Operating Temperature Range: −40°C to +85°C

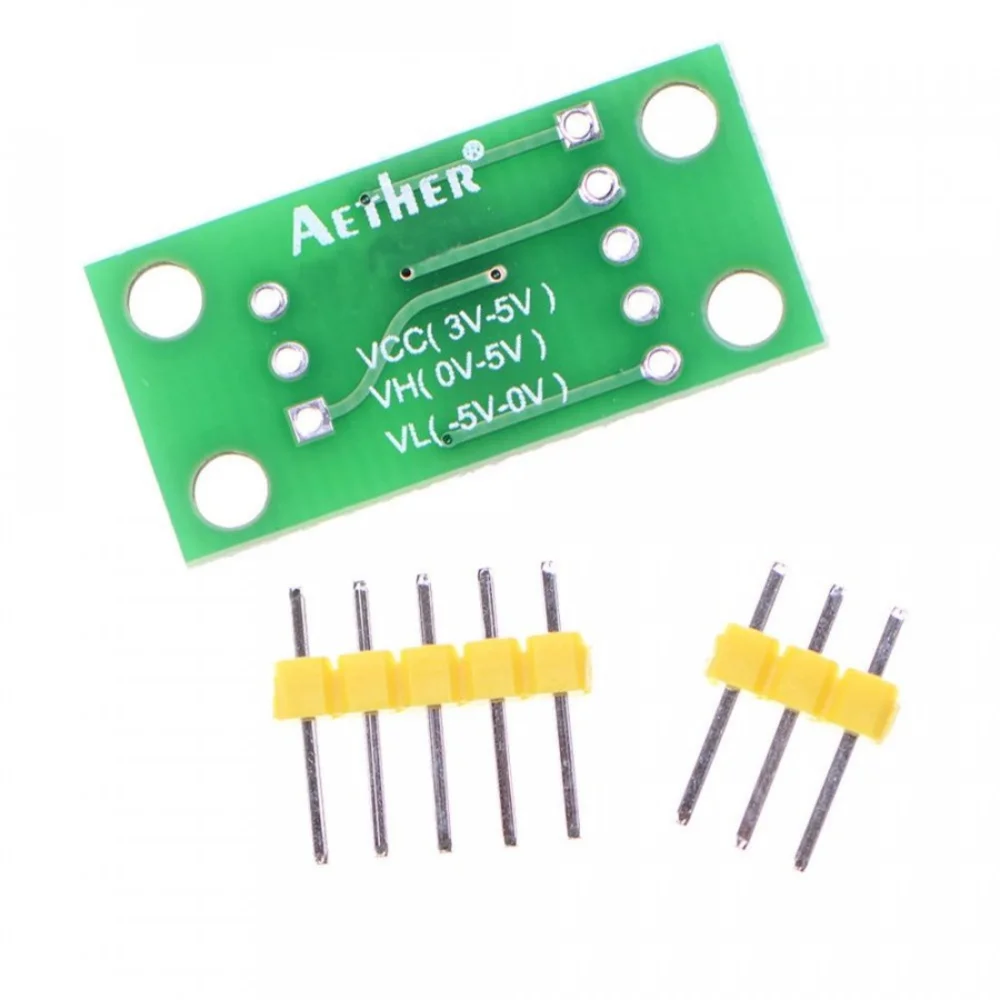

Mechanical Specifications:

• Component IC: Intersil/Renesas X9C103S
• Module Type: PCB Breakout Board
• Pin Interface: Standard 2.54 mm (0.1 in) pitch male headers
• Wiper Material: Low-resistance resistive element array.

Dimensions:

• Board Length: ≈ 27 mm
• Board Width: ≈ 13 mm
• Pin Pitch: 2.54 mm
• Mounting Holes: Includes two small mounting holes for secure installation.

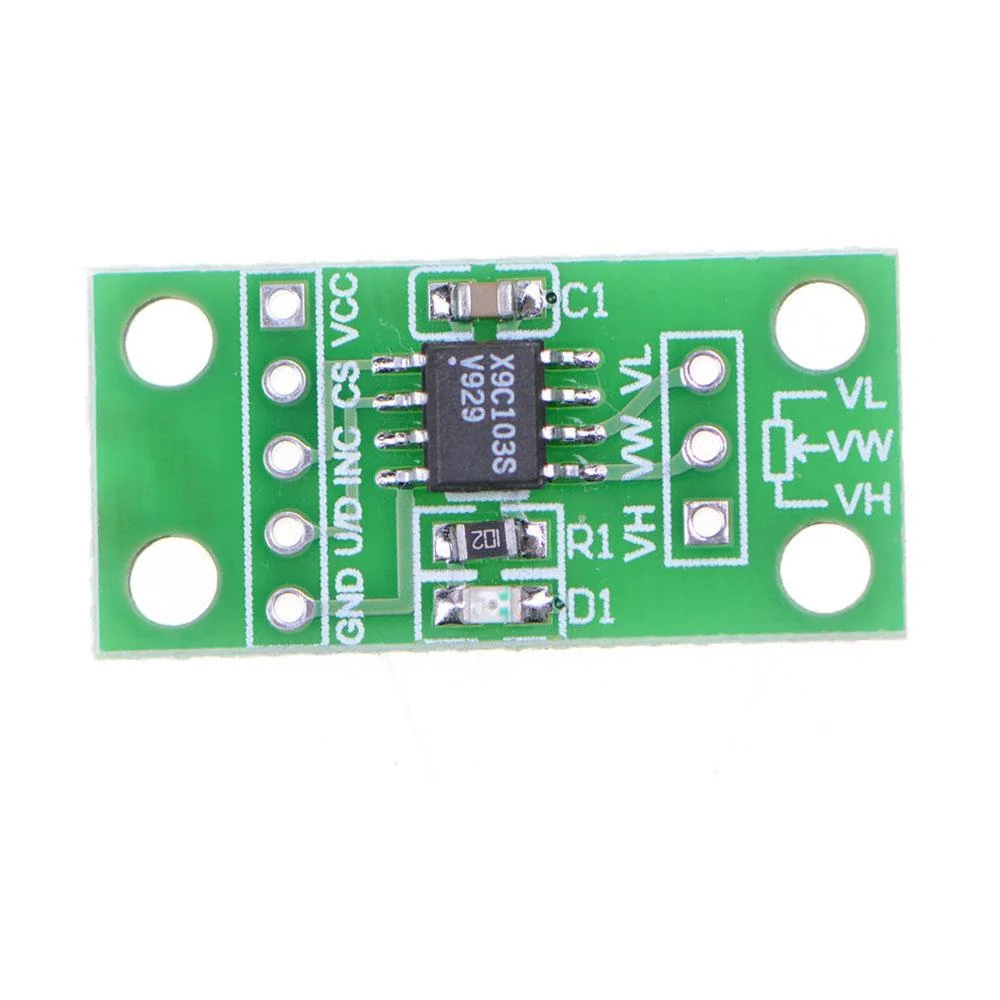

Pinout and Wiring:

• VCC: Connect to the 3V or 5V power supply.
• GND: Connect to the circuit ground reference.
• CS (Chip Select): Drive low to enable communication with the IC. Furthermore, drive high to latch the wiper position into non-volatile memory.
• INC (Increment): Provides the clock pulse that moves the wiper one tap position.
• U/D (Up/Down): Digital input that determines the direction of the wiper movement (High = Up, Low = Down).
• RH (High Terminal): The high end of the resistor array (equivalent to terminal A).
• RW (Wiper Terminal): The adjustable output terminal (equivalent to the wiper contact).
• RL (Low Terminal): The low end of the resistor array (equivalent to terminal B).

Datasheet Reference:

• Download Intersil X9C103S Digital Potentiometer Datasheet

Commonly Used in:

• Microcontroller Projects: Ideal for projects needing adjustable parameters controlled by digital logic.
• Audio Equipment: Serving as digitally controlled volume and tone adjustment circuits.
• Automated Test Equipment (ATE): Used for precision setting of reference voltages or calibration points.

Applications:

• Programmable Filters: Adjusting corner frequencies by changing the resistance in RC circuits.
• Sensor Calibration: Fine-tuning the gain or offset of analog sensor amplifiers (e.g., strain gauge bridges).
• LED Brightness Control: Setting the current limit for high-power LED drivers.
• Power Supply Regulation: Providing digital feedback to regulate output voltage levels.

Equivalent Models:

• MCP41010 (Microchip): A single, 10 kΩ digital pot with 256 taps, however, it uses a SPI interface instead of the 3-wire INC/U/D interface.
• AD5220 (Analog Devices): Another 10 kΩ digital pot offering 1024 taps for higher resolution control.
• X9C104S: A higher resistance version (100 kΩ) within the same Intersil family, often used in similar applications requiring larger resistance values.

Package Includes:

• 1 x X9C103S DC 3-5V Digital Potentiometer Board
