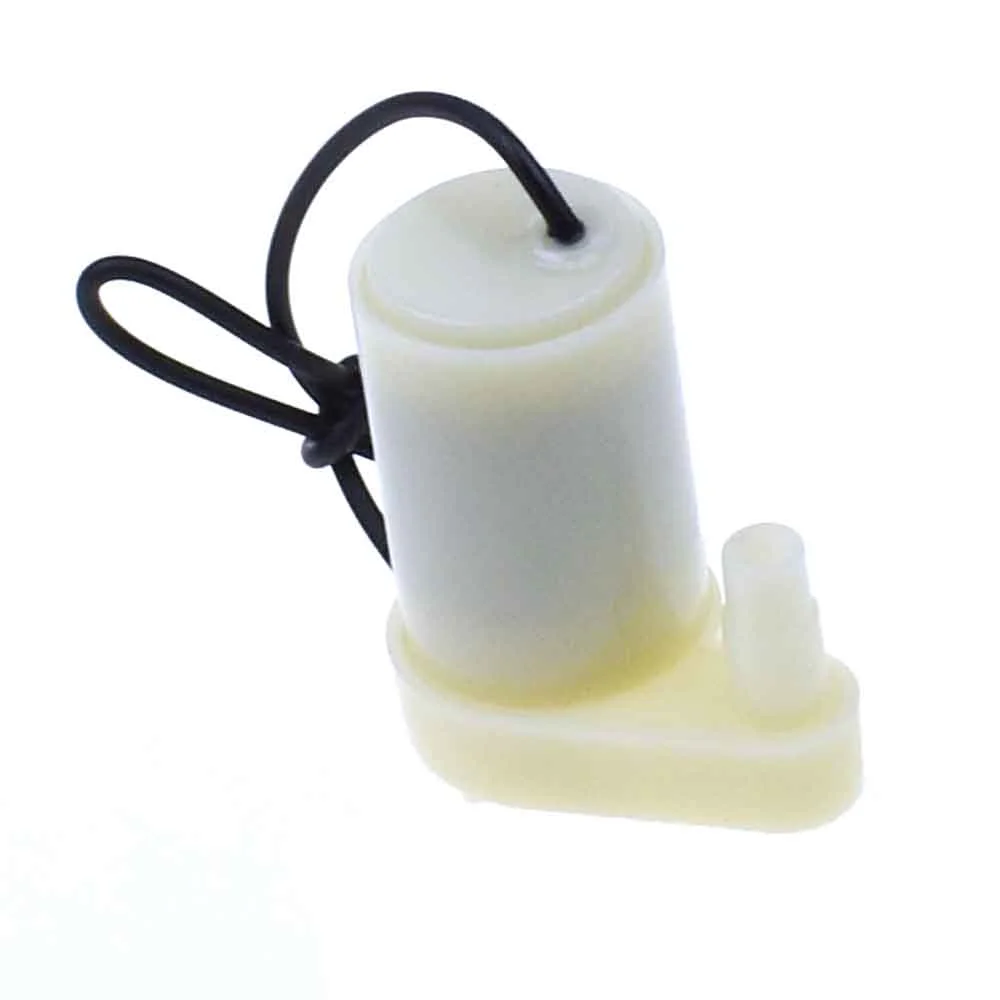

Vertical Mute Sounds 80-100L/H Mini Submersible Pump DC 3V-5V

Vertical Mute Sounds 80-100L/H Mini Submersible Pump DC 3V-5V offers an exceptionally compact and quiet solution for fluid transfer in small-scale projects. Designed to operate efficiently within a low-voltage range of 3V to 5V DC, this pump is perfectly compatible with common power sources like USB ports, power banks, and microcontroller boards such as Arduino or Raspberry Pi. Its submersible nature makes it ideal for tasks requiring water circulation, cooling, or controlled flow, delivering a steady rate of 80 to 100 liters per hour (L/H). Hobbyists and designers frequently integrate this miniature pump into desktop fountains, pet water dispensers, and specialized cooling systems where noise reduction is a critical factor.

Key Features:

• Ultra-Low Noise Operation: Engineered with a magnetic drive and mute technology, the pump generates minimal sound, making it suitable for indoor and quiet environments.
• Wide Operating Voltage: Works reliably across a DC range of 3V to 5V, providing flexibility for power supply options, including 5V USB power.
• Submersible Design: Constructed for full immersion in water, ensuring direct, efficient fluid intake and transfer.
• High Flow Rate for Size: Achieves a powerful flow of 80-100 L/H despite its miniature footprint.
• Long-Life Performance: Utilizes a brushless design that minimizes wear and tear, extending the operational life of the unit.

Technical Specifications:

• Operating Voltage (V_DC): 3V – 5V (Optimal performance at 4.5V)
• Rated Current: ≈ 100 mA (at 5V)
• Maximum Flow Rate: 80 L/H to 100 L/H
• Maximum Head (Lift): ≈ 0.5 meter (Meters of vertical lift)
• Waterproof Rating: IP68 (Fully submersible)

Mechanical Specifications:

• Motor Type: DC Brushless Motor
• Working Medium: Water (or non-corrosive liquids)
• Outlet Diameter: Typically 7.5 mm (Outer Diameter)
• Working Temperature: 0°C to 60°C

Dimensions:

• Body Size: ≈ 40 mm x 38 mm x 27 mm
• Outlet Pipe Diameter: ≈ 7.5 mm (OD)
• Cable Length: ≈ 15 cm to 40 cm
• Weight: ≈ 30 g

Pinout and Wiring:

• Red Wire: Connect to the positive (+) terminal of the 3V-5V DC power source (V_CC).
• Black Wire: Connect to the negative (-) or ground terminal (GND).
• Control: For advanced flow control, use a MOSFET or relay driven by a microcontroller to switch the V_CC line. Note that this pump is not typically speed-controlled via PWM.

Datasheet Reference:

• Download Mini Submersible Pump Specification

Commonly Used in:

• Microcontroller Projects: Integrated into Arduino, ESP32, or Raspberry Pi fluid management systems.
• Educational Demos: Used for demonstrating fluid dynamics and hydraulic principles in STEM kits.
• DIY Electronics: Incorporated into automated systems requiring liquid handling.

Applications:

• Desktop Water Features: Creating small, quiet indoor fountains and waterfalls.
• Aquarium and Terrarium Circulation: Providing low-volume water movement for small aquatic setups.
• Liquid Cooling Systems: Circulating coolant for miniature electronic components or prototypes.
• Automated Plant Watering: Delivering water in micro-irrigation or hydroponic setups.

Equivalent Models:

• Mini Air Pumps: Used when circulating air, not liquid, is necessary.
• Higher Head Pumps (12V): Similar flow rate pumps that achieve greater vertical lift using a higher voltage.
• Peristaltic Pumps: Non-submersible, precise-dosing pumps often used for laboratory or chemical applications.

Package Includes:

• 1 x Vertical Mute Sounds Mini Submersible Pump DC 3V-5V
