220V AC to 5V 1A USB Isolated Switching Power Supply Step-Down Module

₹130.00

In stock ?

In stock

SKU: 999-1-25 Category: Brand:

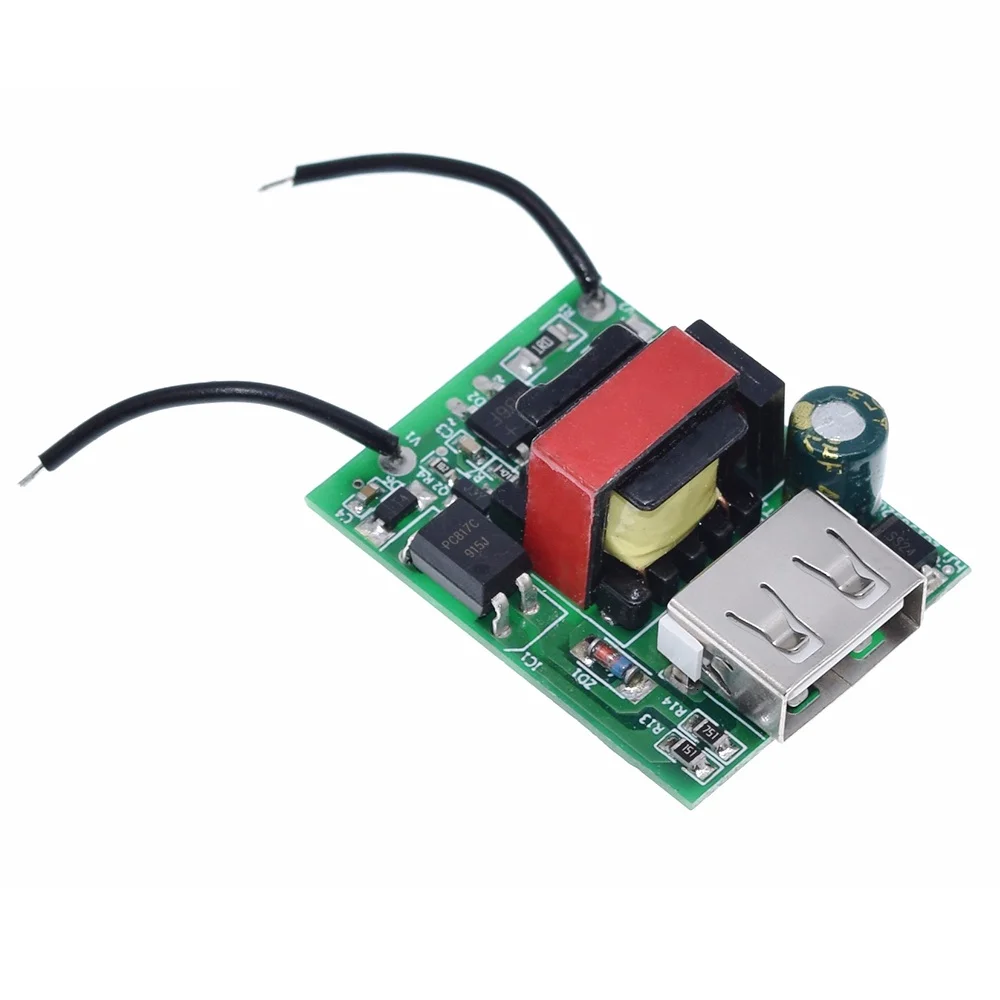

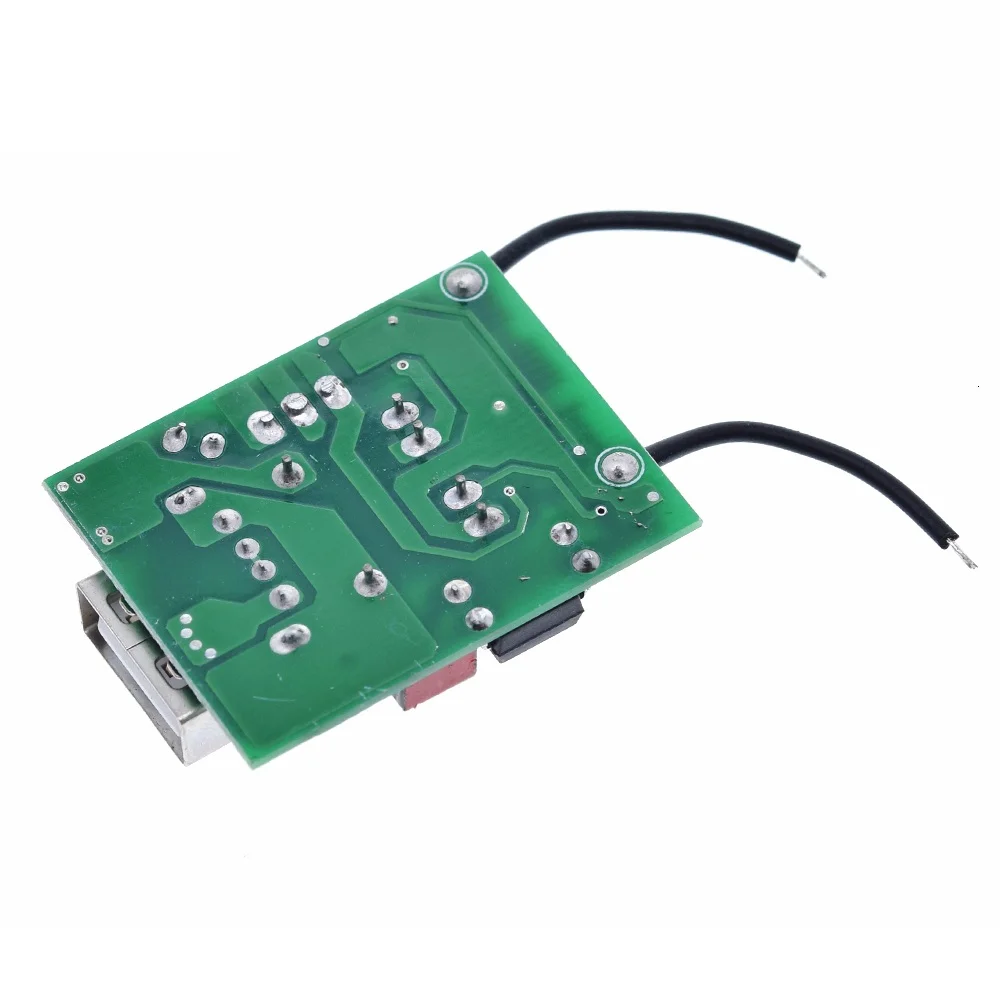

220V AC to 5V 1A USB Isolated Switching Power Supply Step-Down Module is a compact open-frame AC-to-DC flyback converter board with an onboard female USB Type-A socket that steps down 100V–240V AC household mains directly into an isolated, regulated 5V DC 1A (5W) USB output. Engineered with a high-frequency isolation transformer, primary bridge rectifier, optocoupler feedback, and output filter capacitor, it serves as an embedded 5V USB power supply for smart wall sockets, microcontroller enclosures, and DIY charger repairs.

Key Features:
  • Direct 220V AC to 5V 1A USB Output: Converts 100V–240V AC mains directly into a regulated 5.0V DC 1A output delivered through an onboard USB Type-A female port.
  • Galvanic Transformer Isolation: High-frequency flyback isolation transformer separates lethal AC primary voltage from the 5V USB output side.
  • Built-In Short-Circuit & Overload Protection: Automatically limits current and enters hiccup mode during output shorts or thermal overload.
  • Low Standby Consumption: Efficient primary switching regulator keeps no-load power draw below 0.15W.
  • Compact Bare-Board Design: Fits inside modular wall switch boxes, extension power strips, and embedded IoT appliance housings.
Technical Specifications:
  • Input Voltage Range: 100V to 240V AC (50Hz / 60Hz)
  • Output Voltage: 5.0V DC ± 5% Regulated
  • Maximum Output Current: 1.0A (1000 mA)
  • Rated Output Power: 5.0W
  • Output Interface: Standard USB Type-A Female Receptacle (+ Solder Pads)
  • Operating Temperature Range: -20°C to +70°C
Mechanical Specifications:
  • PCB Material: Flame-Retardant FR-4 Single-Sided / Double-Sided Fiberglass Board
  • Input Terminals: AC-L and AC-N Through-Hole Solder Pads
  • Output Connector: Vertical/Horizontal PCB-Mounted USB-A Female Jack

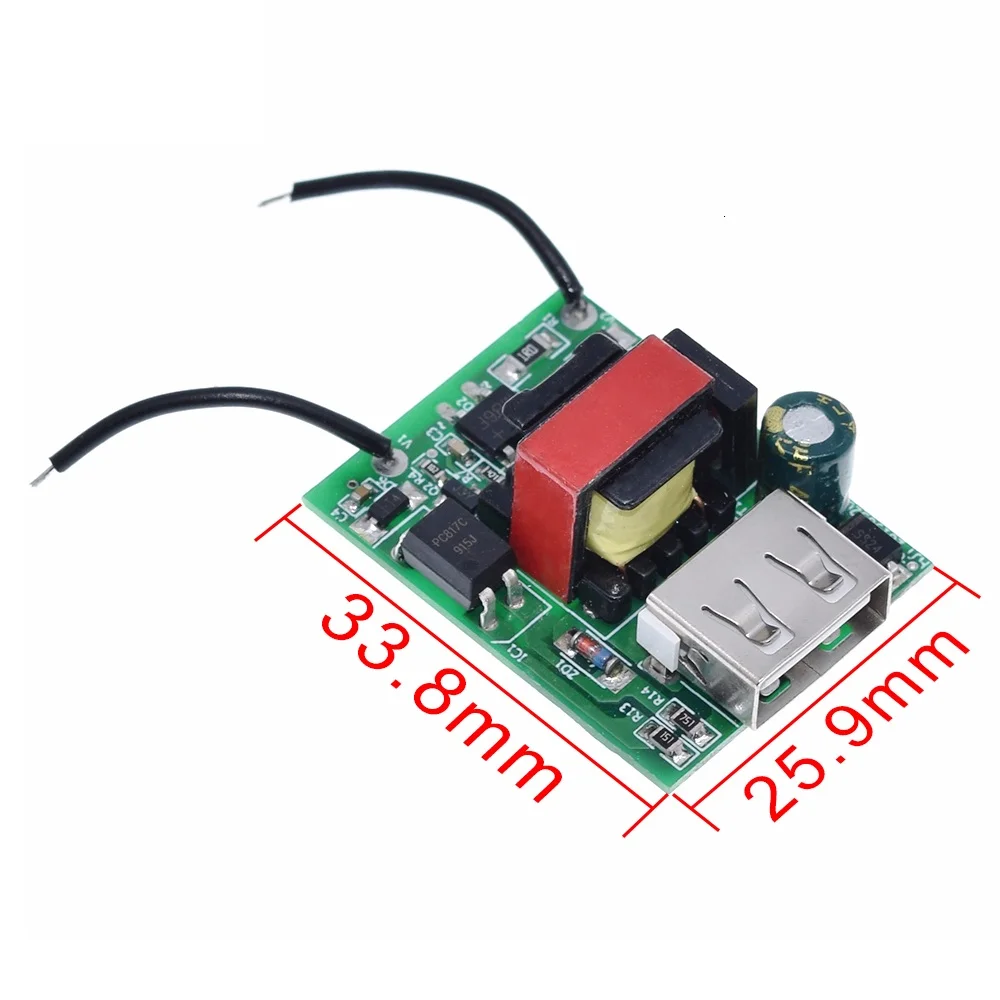

Dimensions:
  • Length: 42 mm
  • Width: 25 mm
  • Height: 18 mm
  • Weight: ~16 g
Pinout and Wiring:
  • AC Input Pads (L / N): Solder 100V–240V AC mains Live and Neutral wires (include an external 1A fuse for safety).
  • USB Type-A Female Socket: Standard 5V DC USB output (Pin 1 = +5V, Pin 4 = GND) ready for any USB power cable.
Datasheet Reference:
  • Topology: Off-Line Isolated PWM Flyback AC-DC Switching Power Supply
  • Safety Precaution: Never touch the PCB while connected to 220V AC mains; always mount inside an insulated plastic enclosure.
Commonly Used in:
  • Wall Socket & Extension Strip USB Charger Retrofits
  • Mains-Powered ESP8266, ESP32, and Arduino Enclosures
  • 5V USB LED Lamp and Smart Home Gateway Power Supplies
  • Replacement Board for 5V 1A Mobile Charger Adapters
Applications:
  • Adds a built-in 5V 1A USB charging port inside custom desk lamps, power strips, or bedside control panels.
  • Powers 5V microcontrollers and USB-powered sensors directly from 230V AC mains using a standard USB cable.
  • Replaces burnt internal PCBs inside 5V 1A USB wall adapters and smart home hubs.
Equivalent Models:
  • 5V 1A AC-DC Switching Power Supply Bare Board 220V AC to 5V DC: Solder-pad output version without the USB-A connector.
  • HLK-PM01 Hi-Link 5V 3W AC to DC Isolated Power Supply Module: Fully potted PCB-mount 5V 600mA AC-DC module.
Package Includes:
  • 1 × 220V AC to 5V 1A USB Isolated Switching Power Supply Step-Down Module
Weight 10 g
