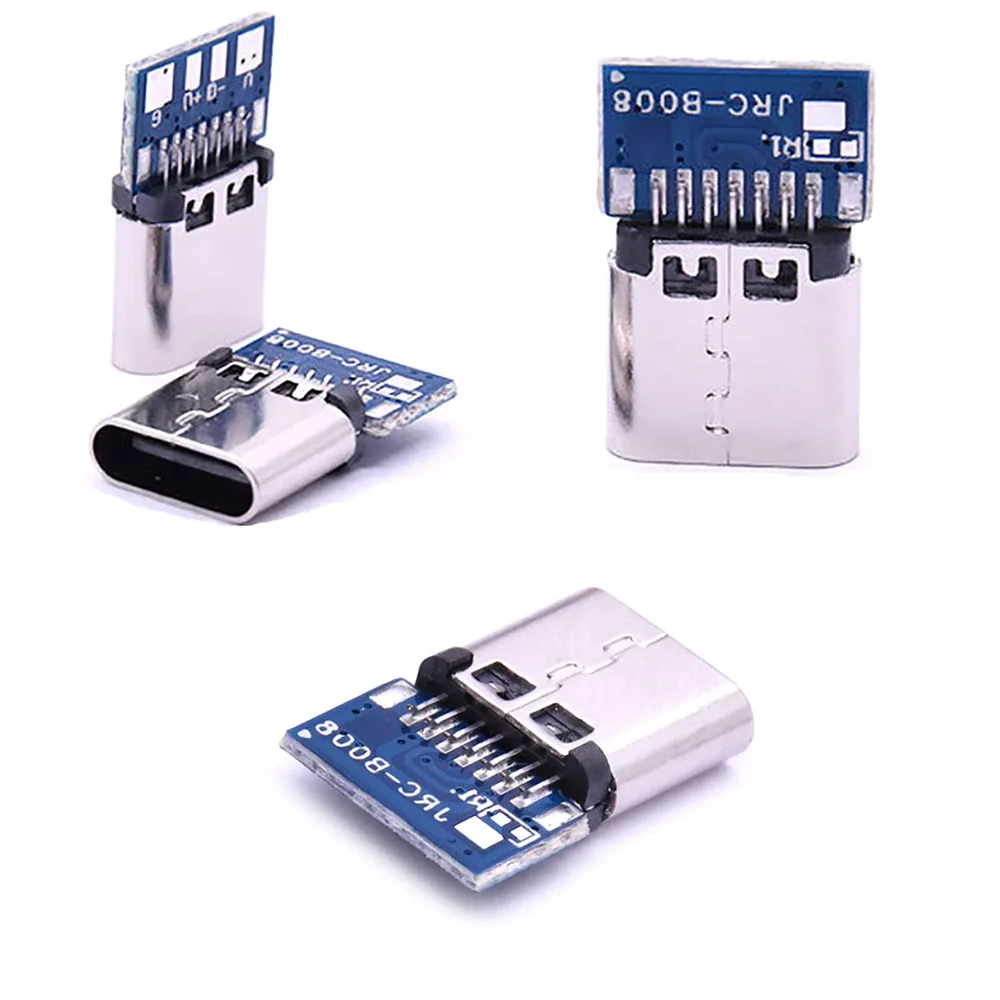

USB 3.1 Type-C Female Socket with Board

USB 3.1 Type-C Female Socket with Board is a compact breakout module designed to easily integrate USB Type-C connectivity into custom electronics, DIY projects, or embedded systems. This module allows fast and reliable connections for power and data through a standardized USB Type-C port.

Key Features:

• Connector: USB Type-C Female Socket
• Breakout Type: Solderable 6-pin PCB breakout board
• Data Support: USB 2.0/3.1 (D+/D− lines exposed)
• Power Supply: Supports 5V power delivery (VBUS/GND)
• Durability: Reversible plug-in, robust mechanical design
• Convenience: Ideal for charging or USB communication with Type-C interface
• Mounting: Breadboard-compatible or wire-soldering

Technical Specifications:

• USB Version: USB 3.1 compatible (limited to USB 2.0 D+/D− on breakout)
• Operating Voltage: 5V (VBUS)
• Current Rating: Up to 3A (depends on power source)
• Exposed Pins: VBUS, GND, D+, D−, CC1, CC2
• PCB Dimensions: Approx. 11mm x 15mm
• Connector Type: 24-pin Type-C Female (only basic lines broken out)

Mechanical Characteristics:

• Connector Orientation: Vertical Type-C socket
• Mounting: PCB with through-hole and SMD pads
• Material: Gold-plated contacts with metal shielding
• Weight: ~2 grams

Schematic Pinout:

• VBUS – Power (5V)
• D+ – Data Plus
• D− – Data Minus
• GND – Ground
• CC1 – Configuration Channel 1
• CC2 – Configuration Channel 2

Applications:

• DIY USB Chargers
• Custom USB Devices
• USB-Powered Embedded Projects
• Microcontroller USB Interfaces
• Power Supply Modules
• USB Cable Prototyping

Equivalent Models and Alternatives:

• CJMCU Type-C Breakout Board
• Adafruit USB-C Breakout Board
• SparkFun USB-C Breakout

Datasheet / Reference:

• USB Type-C Specification (Official PDF)

Keywords:

• USB Type-C Female Board
• USB-C Breakout Module
• USB 3.1 Socket Board
• Type-C DIY Connector
• Type-C Power Module

Package Includes:

• 1 x USB 3.1 Type-C Female Socket with PCB Breakout Board
