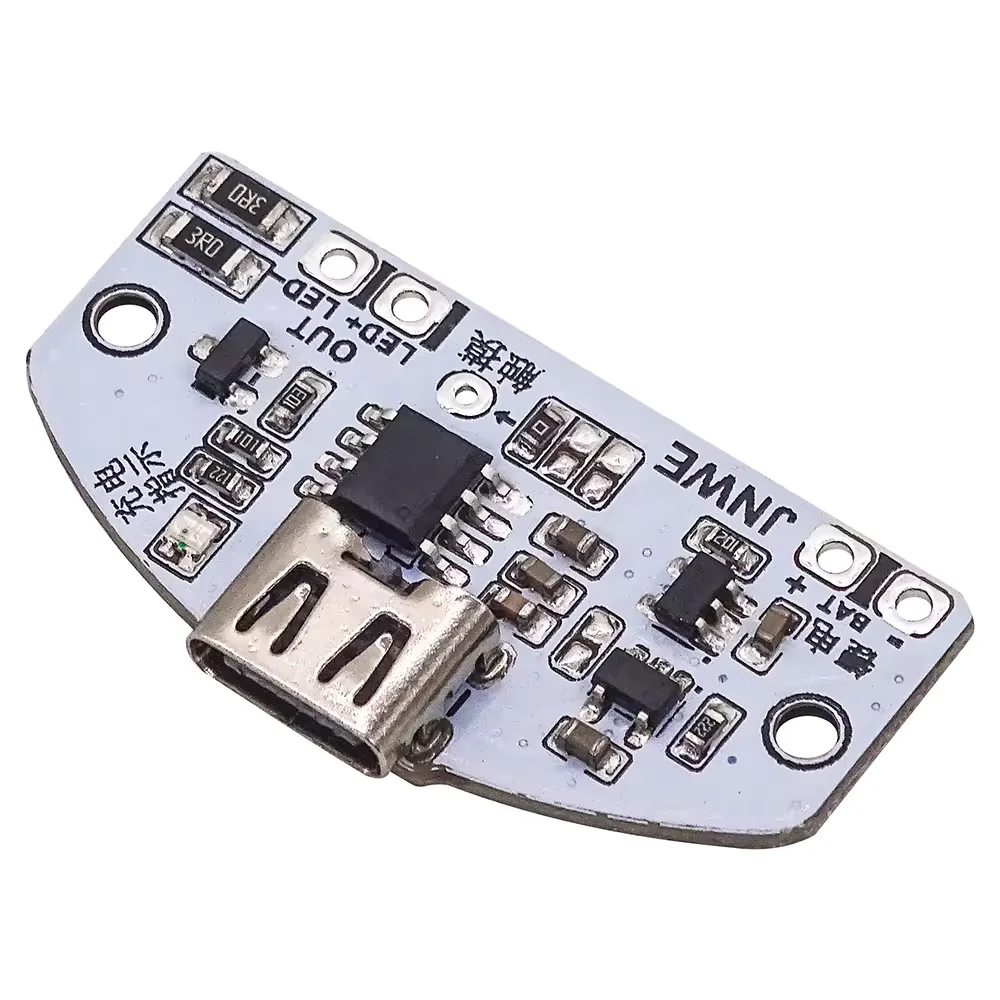

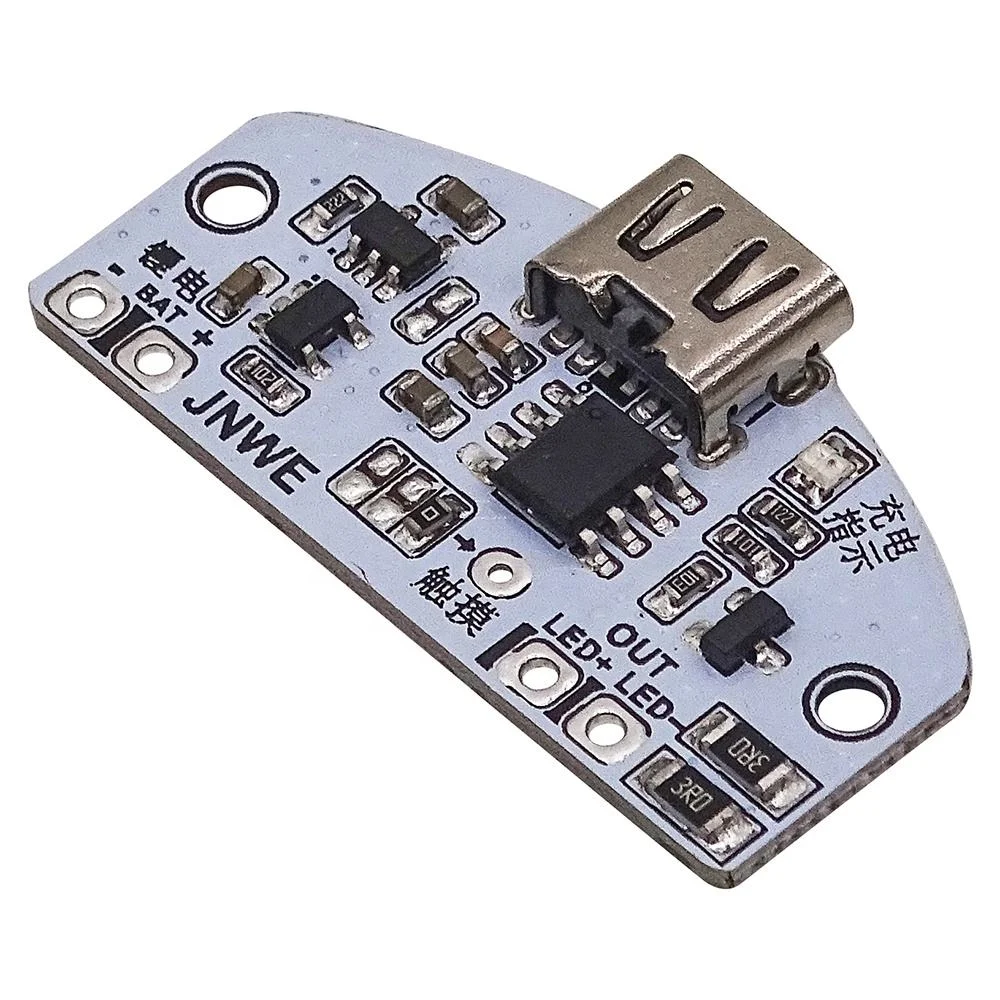

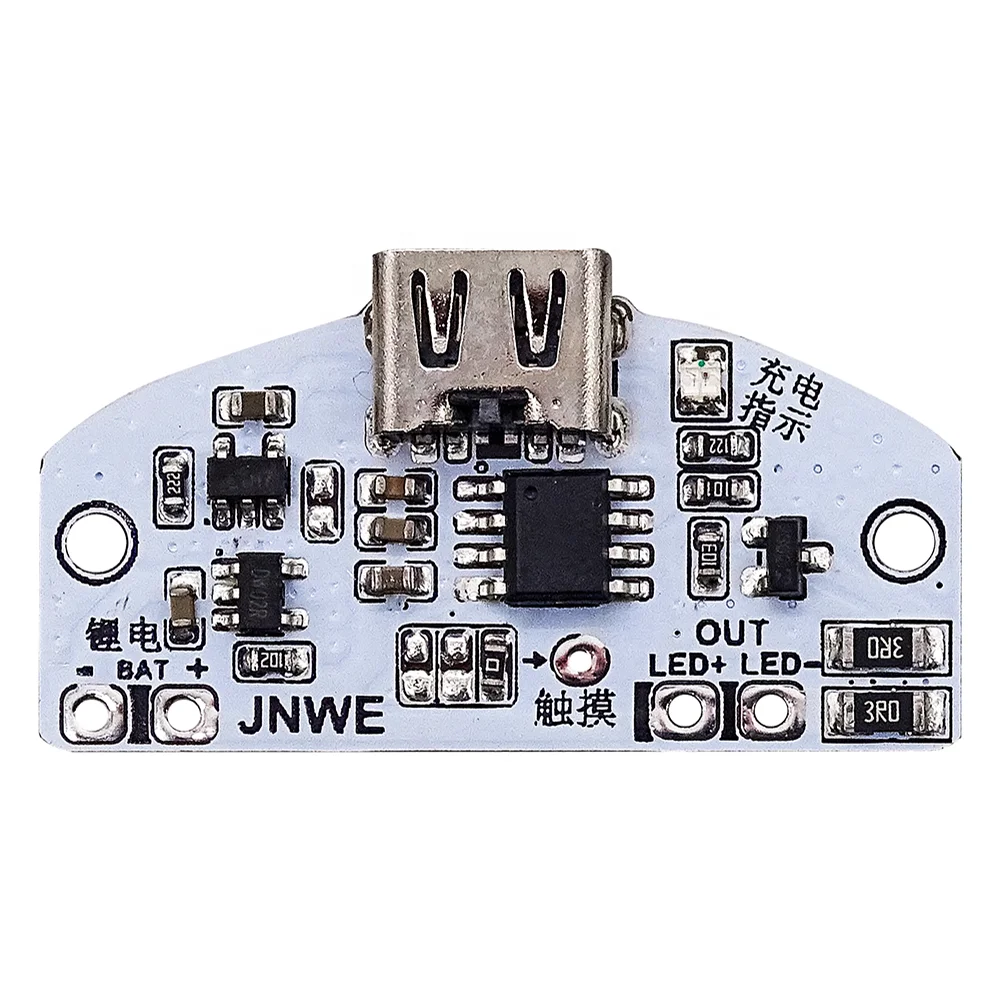

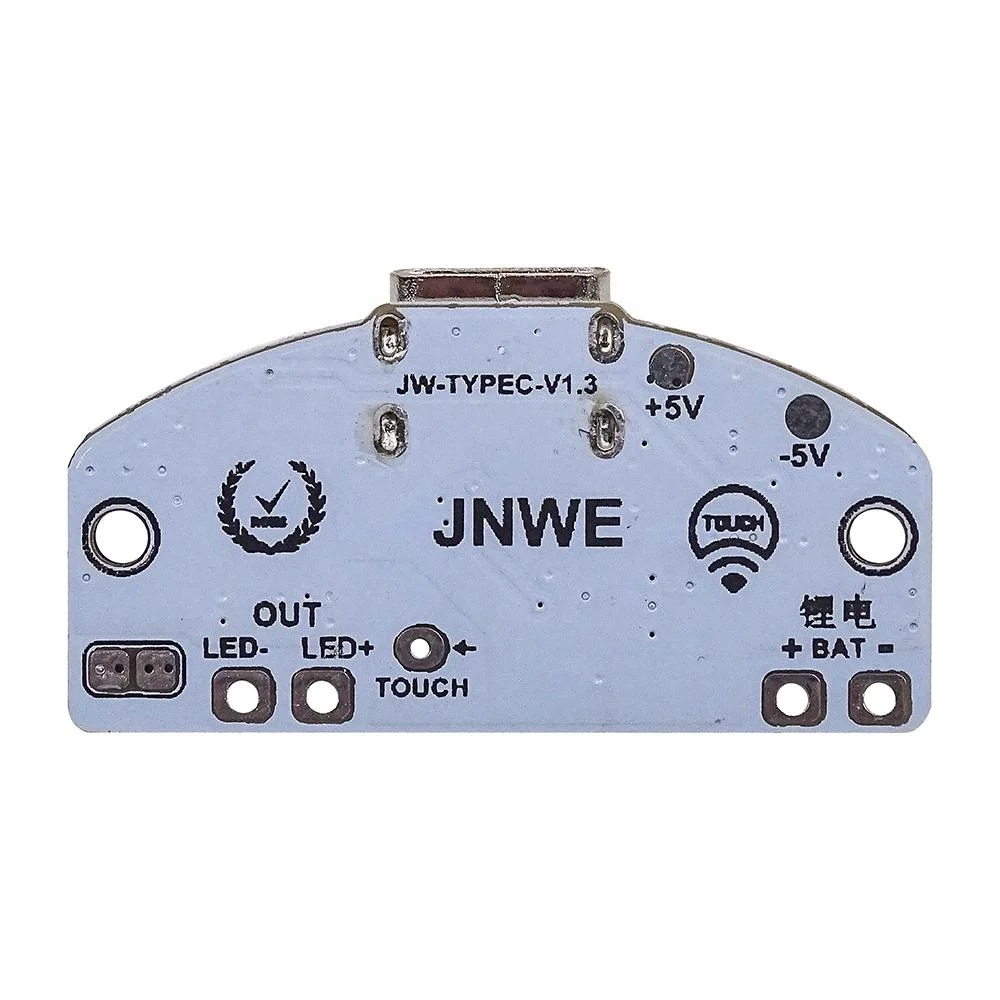

The new type-C desk lamp circuit board is charged with 3.7V lithium battery and has its own overcharge and discharge protection. It supports switch / stepless and three-level dimming mode. It is small in size and can be used for the production, installation and use of all kinds of touch desk lamps, small night lights, touch decorative crafts, etc. Eye protection without stroboscopic; The charging current is 0.5A, and three working modes can be selected.
Key Features:
-
- Output channel: 1 channel
- Load current: output current limit is about 3W (adjustable)
- Charging current: ~ 500mA
- Lithium battery input: connected to 3.7V polymer or single 18650 lithium battery
- Dimming range: 1-100%
- Induction mode: capacitive human touch induction
- Product size: 35mm × 17mm
- Inductive penetration: 0-3mm (customizable sensitivity)
Package Includes:
-
- 1 x TYPE-C Eye Protection Touch Dimming Module
