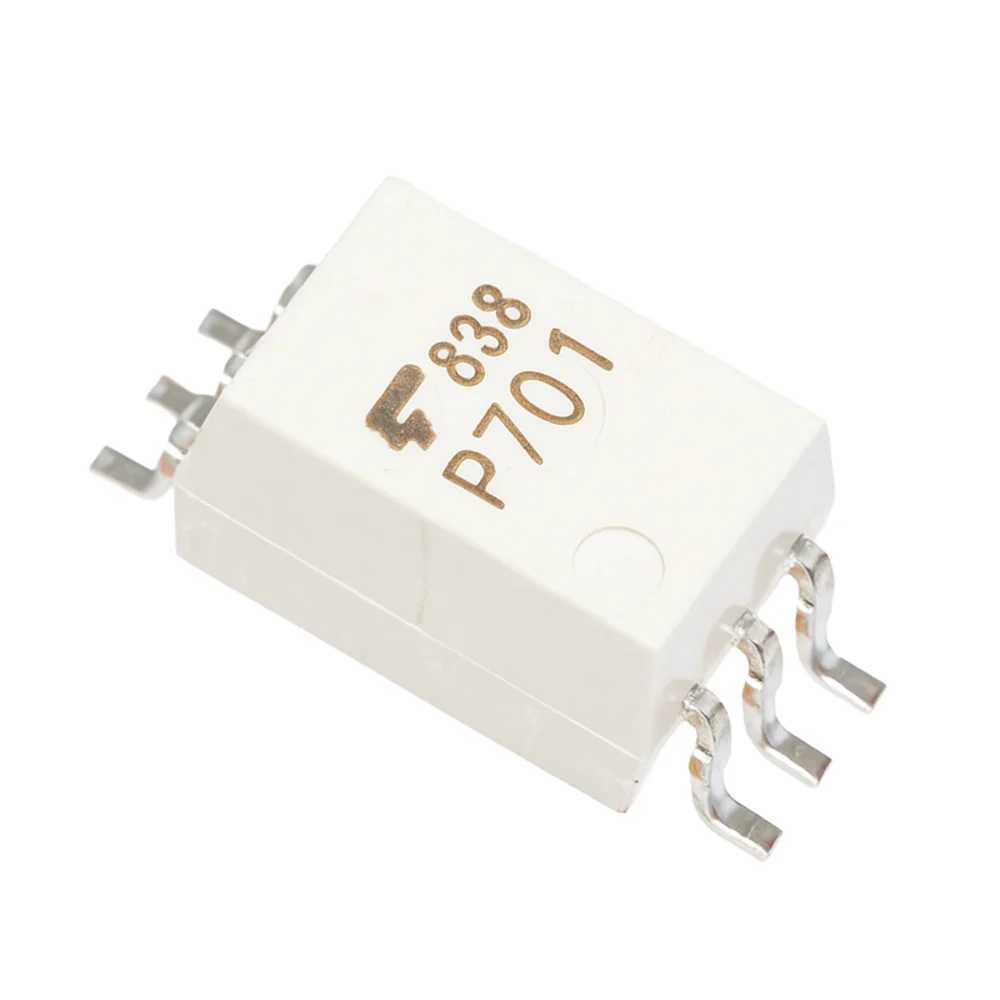

TLP701 Optocoupler IGBT Drive Isolator SOP-6

TLP701 Optocoupler IGBT Drive Isolator SOP-6 is a high-speed, high-isolation gate drive optocoupler specifically engineered for driving the gates of power devices, primarily Insulated Gate Bi-polar Transistors (IGBTs) and power MOSFETs. This device integrates an infrared LED on the input side with a high-gain, high-speed driver circuit on the output side, providing robust electrical separation between low-voltage control circuitry and the high-voltage power stage. The TLP701 delivers the critical high peak output current and fast switching speed necessary for efficient power conversion systems, such as motor control and inverters. Consequently, it prevents dangerous ground loops and protects sensitive controller ICs from high-voltage transients. Therefore, designers rely on this SOP-6 isolator to ensure reliable and safe switching performance in demanding industrial environments.

Key Features:

• High Isolation Voltage: Provides superior electrical insulation, typically 3750 V_RMS, which is essential for protecting logic circuits from high-side voltages.
• High Peak Output Current: Delivers a peak output current of ±0.5 A, easily driving the large gate capacitance of medium-power IGBTs and power MOSFETs.
• Fast Switching Speed: Features high-speed switching characteristics (low propagation delay) to minimize dead-time and optimize efficiency in high-frequency applications.
• Under Voltage Lockout (UVLO): Includes an integrated UVLO protection circuit that prevents the IGBT from turning on with insufficient gate voltage, avoiding damage due to weak drive.
• Wide Operating Supply Voltage: Operates efficiently across a wide V_CC range (15 V to 30 V), accommodating the typical gate drive requirements of most IGBTs.

Technical Specifications:

• Peak Output Current (I_{O, Peak}): ±0.5 A maximum
• Isolation Voltage (V_ISO): 3750 V_RMS minimum
• Maximum Supply Voltage (V_CC): 30 V
• UVLO Threshold: Typically 11.5 V (rising), 10.5 V (falling)
• Propagation Delay (t_PHL / t_PLH): Typically 0.25 μs maximum
• LED Forward Voltage (V_F): Typically 1.6 V
• Operating Temperature Range: −40°C to +100°C

Mechanical Specifications:

• Package Type: SOP-6 (Surface Mount Technology)
• Isolation Material: Highly insulating resin compound.
• Creepage Distance: ≥ 5.0 mm (Ensuring reliable high-voltage separation)
• Flammability Rating: UL 94 V-0

Dimensions:

• Body Length: ≈ 4.4 mm
• Body Width: ≈ 7.0 mm (Including leads)
• Height: ≈ 2.1 mm
• Pin Pitch: 1.27 mm (Standard SOP pitch)
• Weight: ≈ 0.2 g (Minimal impact on board weight)

Pinout and Wiring:

• Pin 1 (Anode): Connect to the positive drive signal via a current-limiting resistor (R_F).
• Pin 2 (Cathode): Connect to the circuit ground (GND) or the negative side of the drive signal.
• Pin 3 (No Connection): Leave this pin open or connect to Pin 4 for better isolation spacing.
• Pin 4 (V_EE): Output side emitter/ground. Connect to the emitter of the IGBT being driven.
• Pin 5 (V_OUT): Output driver pin. Connect directly to the Gate of the IGBT.
• Pin 6 (V_CC): Output side power supply. Connect to the high-side supply (±15 V to ±30 V) for the IGBT gate drive.

Datasheet Reference:

• Download Toshiba TLP701 Optocoupler Datasheet

Commonly Used in:

• Motor Drive Controllers: Essential for safe and efficient driving of IGBTs in AC servo and variable frequency drives (VFDs).
• Power Inverters: Used in solar inverters, UPS systems, and battery storage converters where high-voltage switching is required.
• Switching Power Supplies (SMPS): Implemented in high-power, isolated DC-DC or AC-DC converters.

Applications:

• High-Side/Low-Side Gate Drive: Provides the necessary level shifting and isolation for half-bridge and full-bridge inverter topologies.
• Power Factor Correction (PFC): Driving power switches in PFC circuits to improve line efficiency.
• Industrial Robotics: Controls the large power switches responsible for motor articulation and movement.

Equivalent Models:

• ACPL-P340 (Broadcom/Avago): A functionally similar IGBT gate drive optocoupler offering comparable speed and peak current, furthermore, it often features a wider temperature range.
• VO3120 (Vishay): Another high-speed, high-voltage isolation gate driver, frequently used as a direct alternative to the TLP701.
• HCPL-3120 (Various Brands): A legacy and popular part that shares the core gate driving function and isolation capability.

Package Includes:

• 1 x TLP701 Optocoupler IGBT Drive Isolator SOP-6
