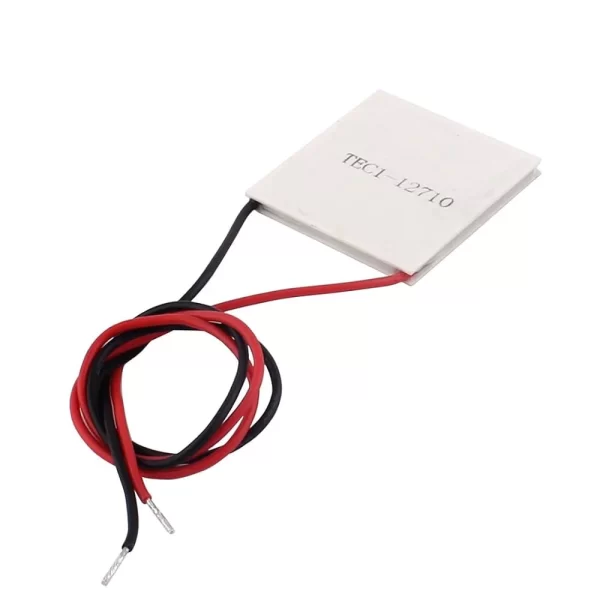

TEC1-12710 Thermoelectric Peltier Cooler Plate

TEC1-12710 Thermoelectric Peltier Cooler Plate is a robust, solid-state thermal management device that actively transfers heat using the Peltier effect. This specific model, featuring 127 thermocouples and rated for 10 Amps at 12 Volts, delivers a high maximum cooling capacity (Q_max) to achieve significant temperature differentials across its ceramic plates. Therefore, you can use the TEC1-12710 to create specialized cooling or heating solutions where precise temperature control and reliability are essential. Since this device lacks moving parts, it offers superior longevity and durability compared to traditional compressor-based cooling systems. Furthermore, its small form factor and efficient operation make it an ideal choice for portable, laboratory, and high-density electronics cooling applications.

Key Features:

• High Cooling Power (Q_max): The 10 Amp rating provides substantial heat transfer capability, enabling large temperature drops or high-volume thermal load management.
• Solid-State Reliability: Operates without refrigerants or moving parts, offering superior longevity, low noise, and vibration-free performance.
• Reversible Operation: You can easily reverse the current polarity to switch between cooling and heating modes, allowing for precise temperature cycling applications.
• Compact Form Factor: The square plate design (40mm x 40mm) makes it simple to integrate the device into small enclosures or tight spatial constraints.
• High Isolation: Utilizes ceramic plates for high electrical isolation, ensuring safety when operating near high-density electronics.

Technical Specifications:

• Model Designation: TEC1-12710 (127 couples, 10 Amp nominal)
• Nominal Voltage (V_max): 15.4 V_DC
• Maximum Current (I_max): 10.0 Amps
• Maximum Cooling Power (Q_max): ≈ 88 W (When ΔT = 0°C, at V_max)
• Maximum Temperature Difference (ΔT_max): ≥ 68°C (When Q = 0)
• Operating Temperature Range: −55°C to +83°C
• Internal Resistance (R): 1.2 Ω ± 0.1 Ω (Measured at 25°C)

Mechanical Specifications:

• Module Material: Bismuth Telluride (Bi₂Te₃) Semiconductor Pellets
• Ceramic Plate Material: Alumina (Al₂O₃) for high thermal conductivity and electrical isolation.
• Sealing: Moisture resistance sealing is generally not present; external sealant is recommended for humid environments.
• Leads: Insulated copper wire leads for power connection.

Dimensions:

• Length (L): 40 mm ± 0.3 mm
• Width (W): 40 mm ± 0.3 mm
• Height (H): 3.9 mm ± 0.1 mm (Standard thickness)
• Lead Length: ≈ 300 mm (Standard)
• Weight: ≈ 22 g

Pinout and Wiring:

• Red Wire (Positive): Connect this wire to the positive terminal of your DC power supply.
• Black Wire (Negative): Connect this wire to the negative terminal of your DC power supply (Ground).
• Cooling Operation: When the red wire is positive and the black wire is negative, the side with the printed text/model number becomes the HOT side, and the blank side becomes the COLD side.
• Heating Operation: Reverse the polarity of the wires to switch the cold side to heating.
• Wiring Note: Always use a high-quality, regulated 12 V_DC power supply and ensure you use a heatsink on the hot side to dissipate waste heat effectively.

Datasheet Reference:

• Download TEC1-12710 Thermoelectric Cooler Datasheet

Commonly Used in:

• Water/Air Cooling Systems: Integrated into small liquid cooling loops or direct air coolers for localized cooling.
• Laboratory Equipment: Used in thermal cyclers, DNA amplification machines, and temperature-controlled microscope stages.
• Portable Refrigeration: The primary cooling element in small electronic refrigerators, wine coolers, and car coolers.

Applications:

• CPU/GPU Thermal Management: Providing supplementary cooling for high-performance computing components where traditional cooling fails.
• Dew Point Control: Actively cooling sensors, CCD/CMOS cameras, and humidity traps to prevent condensation.
• Temperature Stabilization: Maintaining a precise, stable temperature for laser diodes, optics, and reference electronics.

Equivalent Models:

• TEC1-12706: A lower current (6A) version, suitable when maximum cooling is not required.
• TEC1-12715: A higher current (15A) version for maximum cooling power, however, it requires a stronger power supply and heatsink.
• TES1-12710 (Smaller size): A functionally similar module, but usually featuring a smaller footprint (e.g., 30x30mm) for constrained spaces.

Package Includes:

• 1 x TEC1-12710 Thermoelectric Peltier Cooler Plate (40x40mm)
