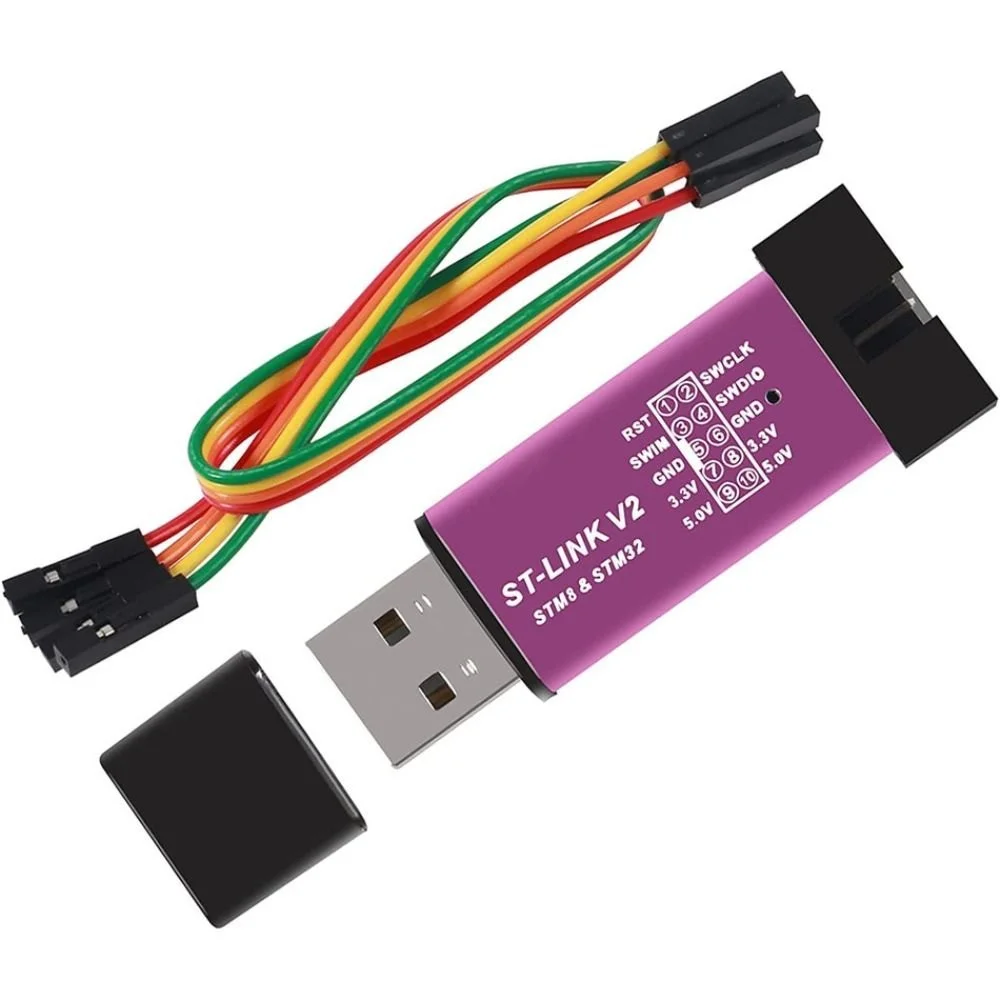

ST Link V2 Programmer for STM8 and STM32

ST Link V2 Programmer for STM8 and STM32 is a powerful, low-cost in-circuit debugger and programmer designed specifically for the STM8 and STM32 microcontroller families. This tool facilitates seamless communication between your PC and the target board via a standard USB interface. Furthermore, it utilizes the SWIM (Single Wire Interface Module) for STM8 microcontrollers and the SWD (Serial Wire Debug) interface for STM32 microcontrollers. Developers benefit from the device’s ability to perform high-speed programming and real-time debugging directly within popular Integrated Development Environments (IDEs). Consequently, this programmer serves as an indispensable asset for engineers and hobbyists looking to streamline their firmware development workflow. Therefore, you can rely on the ST Link V2 to provide a stable and efficient connection for all your STMicroelectronics silicon projects.

Key Features:

• Dual Microcontroller Support: Provides full compatibility with both 8-bit STM8 and 32-bit STM32 architectures.
• Self-Resetting Fuse: Incorporates a 500 mA internal self-recovery fuse to protect your computer’s USB port from short circuits or overcurrent.
• Status Indicator: Features a dual-color LED that reflects the communication status, ensuring you can visually confirm successful data transfers.
• Aluminum Housing: Encased in a rugged, anodized aluminum shell that protects the internal circuitry from physical damage and static interference.
• Direct Firmware Updates: Supports official ST-LINK firmware upgrades via the USB port to ensure compatibility with the latest software tools.

Technical Specifications:

• Input Voltage: 5 V (Powered directly via USB)
• Output Voltage Support: 3.3 V and 5.0 V (To power the target board)
• Interface Protocols: SWIM (for STM8) and SWD (for STM32)
• Programming Speed: Supports high-speed and low-speed modes (≈ 2.5 MHz max for SWD)
• Isolation: Non-isolated (Common GND between PC and target)
• Operating Temperature Range: 0°C to +50°C

Mechanical Specifications:

• Enclosure Material: Anodized Aluminum Alloy
• Connector Type: USB Type-A (Male) and 10-pin IDC Header (Male)
• Internal Protection: Integrated 500 mA fuse for USB port safety
• Mounting: Plug-and-play USB dongle design

Dimensions:

• Body Length: ≈ 57 mm (Including USB connector)
• Body Width: ≈ 20 mm
• Body Thickness: ≈ 8 mm
• Ribbon Cable Length: ≈ 20 cm (Standard 4-wire or 10-wire cable)

Pinout and Wiring:

• VCC (3.3V/5V): Connect to the target board’s power input to provide or sense voltage.
• GND: Establish a common ground between the programmer and the target hardware.
• SWDIO: Serial Wire Data Input/Output for STM32 debugging.
• SWCLK: Serial Wire Clock signal for STM32 timing synchronization.
• SWIM: Single Wire Interface Module pin for STM8 programming.
• RST: Optional reset pin to allow the programmer to trigger a hardware reset on the target MCU.

Datasheet Reference:

• Download ST-LINK/V2 User Manual and Datasheet

Commonly Used in:

• Integrated Development Environments: Fully compatible with Keil MDK, IAR Embedded Workbench, STM32CubeIDE, and Atollic TrueSTUDIO.
• Flash Programming Tools: Works natively with ST-LINK Utility and STM32CubeProgrammer for direct hex/bin file uploading.
• Prototyping Workflows: Used extensively with breadboard setups and custom PCB testing.

Applications:

• Firmware Development: Accelerates the coding process by allowing real-time variable monitoring and breakpoint insertion.
• Mass Production: Functions as a cost-effective solution for flashing firmware onto finished products during assembly.
• Educational Learning: Provides students and makers with an affordable entry point into professional ARM Cortex-M development.
• Repair and Refurbishment: Enables technicians to rewrite corrupted bootloaders or update firmware on existing consumer electronics.

Equivalent Models:

• ST-LINK/V2-ISOL: A specialized version offering digital isolation between the PC and target to prevent ground loops.
• ST-LINK/V3MINI: A newer, more compact version offering higher data throughput and faster clock speeds.
• SEGGER J-Link: A high-end professional alternative; however, it typically carries a significantly higher price point.

Package Includes:

• 1 x ST Link V2 Programmer (Aluminum Shell)
• 1 x 4-Pin DuPont / Ribbon Cable
