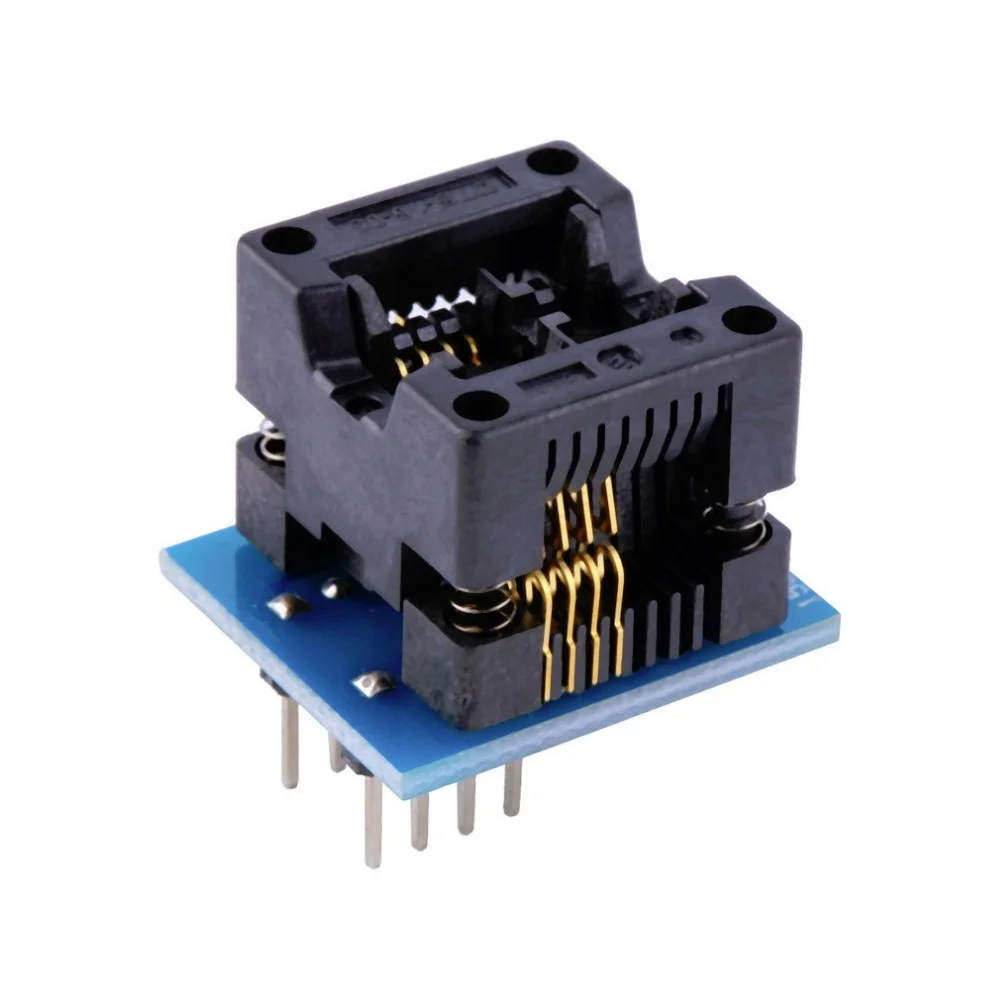

SOP8 To DIP8 EZ Programmer Adapter Socket Converter Module 150mm

SOP8 To DIP8 EZ Programmer Adapter Socket Converter Module 150mil is a high-quality, professional-grade testing tool designed to bridge the gap between surface-mount technology and standard programming hardware. This adapter allows users to program or test SOP8 (SOIC8) chips with a body width of 150mil using a standard DIP8 programmer or breadboard setup. Consequently, it eliminates the need for tedious soldering and desoldering, preserving the integrity of both the IC and the printed circuit board. Furthermore, the “EZ” pop-up socket mechanism ensures a secure, zero-insertion-force connection, which facilitates rapid batch programming. Therefore, this converter remains an indispensable asset for developers, repair technicians, and hobbyists working with BIOS chips, EEPROMs, and flash memory.

Key Features:

• Zero Insertion Force (ZIF): The module utilizes a spring-loaded “clamshell” or “pop-up” mechanism to hold the IC securely without damaging the delicate leads.
• Gold-Plated Contacts: High-quality beryllium copper pins with gold plating ensure excellent conductivity and a long operational lifespan of over 10,000 cycles.
• Universal Compatibility: This adapter works seamlessly with almost any universal programmer, including the CH341A, TL866II Plus, and RT809F series.
• Durable Construction: The socket uses high-performance engineering plastics, which resist heat and provide reliable mechanical stability during repetitive use.
• Standard DIP Output: The 2.54 mm pitch DIP leads allow the module to fit perfectly into standard ZIF sockets or breadboards.

Technical Specifications:

• Socket Type: SOP8/SOIC8 to DIP8
• IC Body Width Support: 150 mil (3.9 mm − 4.0 mm)
• Pin Pitch (SOP8): 1.27 mm
• Pin Pitch (DIP8): 2.54 mm (0.1 inch)
• Insulation Resistance: 1000 MΩ minimum at 500 V_DC
• Dielectric Withstanding Voltage: 700 V_AC for one minute
• Operating Life: ≥ 10,000 insertions

Mechanical Specifications:

• Socket Material: PES, PEI, or equivalent high-grade polymer
• Contact Material: Beryllium Copper (BeCu)
• Contact Plating: Gold over Nickel
• Operation Force: < 0.9 kg maximum
• Mounting: Plug-in through-hole DIP leads

Dimensions:

• Overall Height: ≈ 25.0 mm
• Overall Length: ≈ 28.0 mm
• Overall Width: ≈ 24.0 mm
• Bottom Pin Length: ≈ 5.0 mm
• Row to Row Distance (DIP): 7.62 mm (0.3 inch)

Pinout and Wiring:

• SOP8 Pins (Top): Pins 1 through 8 of the SMD chip correspond directly to the same pin numbers on the DIP header.
• DIP8 Pins (Bottom): These pins follow the standard DIP8 configuration, with Pin 1 typically marked by a dot or notch on the adapter board.
• Wiring Note: However, always ensure the IC is oriented correctly with Pin 1 matching the indicator on the socket to prevent programming errors or electrical damage.

Datasheet Reference:

• Download Enplas SOP Series Adapter Socket Reference

Commonly Used in:

• BIOS Programming: Technicians frequently use this adapter to flash or recover BIOS chips on laptop and desktop motherboards.
• Automotive Electronics: Ideal for reading and writing EEPROMs found in engine control units (ECUs) and instrument clusters.
• Firmware Development: Engineers use it to quickly test code on 24/25/93/95 series memory chips without permanent installation.

Applications:

• Data Recovery: Extracting stored data from damaged SOP8 chips by interfacing them with a logic analyzer or reader.
• Prototyping: Integrating surface-mount memory chips into breadboard-based prototypes during the design phase.
• Quality Control: Performing functional testing on mass-produced SMD components before they reach the assembly line.

Equivalent Models:

• YAMAICHI IC51-0082-1024: A high-end Japanese alternative known for precision engineering and long-term durability.
• WELLS-CTI 652 Series: A comparable 150mil SOP8 socket often found in high-volume industrial programming stations.
• Generic 200mil Adapter: A wider version of this socket, however, it is not compatible with standard 150mil SOIC8 chips.

Package Includes:

• 1 x SOP8 To DIP8 EZ Programmer Adapter Socket Converter Module (150mil)
