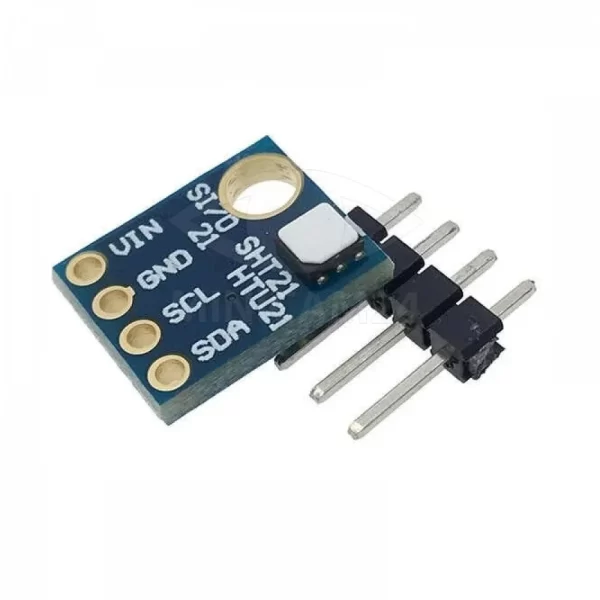

Si7021 I2C Interface Humidity and Temperature Sensor Module

Si7021 I²C Humidity and Temperature Sensor Module is a highly accurate, low-power, single-chip solution for measuring relative humidity (RH) and temperature. This digital sensor delivers excellent long-term stability and high reliability, making it ideal for environmental monitoring applications. Furthermore, its small size and efficient I²C interface allow for easy integration into existing microcontroller systems, reducing power consumption and board space compared to traditional analog sensors. The Si7021 provides fully calibrated, digital outputs for both humidity and temperature. Consequently, it eliminates the need for expensive high-end microcontrollers or complex calibration routines, saving development time and manufacturing cost. Therefore, deploy this sensor in demanding smart home, industrial, and medical systems that require precise environmental data.

Key Features:

• High Accuracy and Low Drift: Measures Relative Humidity with an accuracy of ±3% RH (Max) and temperature accuracy of ±0.4°C (Max).
• Integrated Digital Output: Provides fully calibrated, linearized sensor signals in digital I²C format, simplifying system design and eliminating component variation.
• Wide Operating Range: Operates reliably across a temperature range from −40°C to +125°C and humidity range from 0 to 100% RH.
• Low Power Consumption: Consumes minimal current in both active and sleep modes, making it perfect for battery-powered or energy-harvesting applications.
• Heater Element: Includes an on-chip heater to drive off condensation, which improves measurement accuracy and recovery time in high-humidity conditions.

Technical Specifications:

• Relative Humidity (RH) Accuracy: ±3% RH (Max, 0–80% RH)
• Temperature Accuracy: ±0.4°C (Max, −10°C to +85°C)
• Resolution: 12-bit RH / 14-bit Temperature (Configurable)
• Operating Voltage (V_DD): 1.9 V to 3.6 V (Typical module boards include an onboard regulator for 5V input)
• Interface: I²C Digital Interface (Fast Mode 400 kHz compatible)
• I²C Slave Address: 0x40 (Fixed)
• Measurement Time: Typically 20 ms for RH, 7 ms for Temperature (at 14-bit)

Mechanical Specifications:

• Sensor IC Package: 3 mm x 3 mm DFN
• Module PCB Type: Breakout Board (ready for breadboard or PCB mounting)
• Communication: Standard 4-pin male header (VCC, GND, SCL, SDA)
• Protective Cover: May feature a factory-installed filter cover for dust and liquid protection.

Dimensions:

• Module PCB Length: ≈ 13.5 mm
• Module PCB Width: ≈ 10.0 mm
• Mounting Hole Diameter: ≈ 3.0 mm (Often includes one hole)
• Pin Pitch: 2.54 mm (Standard breadboard compatible)

Pinout and Wiring:

• VCC: Connect the power supply (typically 3.3V or 5V, depending on the module’s regulator).
• GND: Connect to the common ground of the system.
• SDA (Serial Data): Connect to the I²C Data line of the microcontroller. Note that the module often includes required pull-up resistors.
• SCL (Serial Clock): Connect to the I²C Clock line of the microcontroller.

Datasheet Reference:

• Download Silicon Labs Si7021 Datasheet

Commonly Used in:

• HVAC and Climate Control Systems: Providing precise feedback for air conditioning and humidification units.
• Weather Stations: Serving as the main sensor for local temperature and humidity data logging.
• Smart Home Devices: Integrated into thermostats, air quality monitors, and home security systems.
• Medical and Industrial Equipment: Essential for monitoring controlled environments like incubators or storage facilities.

Applications:

• Data Logging: Collecting continuous environmental data for research or system performance analysis.
• Dew Point Calculation: Using the highly accurate RH and T measurements to precisely calculate dew point.
• IoT Devices: Acting as the environmental sensing node in wireless sensor networks (WSNs).
• Appliance Control: Providing input for clothes dryers, refrigerators, and other consumer appliances.

Equivalent Models:

• SHT21 / SHT31 (Sensirion): These are functionally similar high-accuracy I²C humidity and temperature sensors, often used interchangeably in designs.
• DHT22 (AM2302): While slightly less accurate and using a single-wire protocol, it serves the same basic function in hobbyist projects.
• HDC1080 (Texas Instruments): Another comparable low-power, high-accuracy digital humidity and temperature sensor.

Package Includes:

• 1 x Si7021 I2C Interface Humidity and Temperature Sensor Module
