Pure Sine Wave Inverter Driver Board EGS002 LCD Display

Pure Sine Wave Inverter Driver Board EGS002 LCD Display is a comprehensive, high-performance driver module designed for single-phase pure sine wave inverter systems. This board utilizes the EG8010 digital generator chip as its core and couples it with the IR2110S high-voltage half-bridge driver to provide a complete SPWM (Sinusoidal Pulse Width Modulation) control solution. Consequently, it enables users to build reliable, high-efficiency power inverters with minimal external circuitry. The module also features a dedicated interface for the included LCD display, which provides real-time monitoring of critical parameters like voltage, current, and temperature. Furthermore, its robust protection logic ensures the safety of both the inverter and the connected load. Therefore, the EGS002 remains the top choice for DIY enthusiasts and industrial engineers seeking a stable 50/60Hz AC power source.

Key Features:

• Pure Sine Wave Output: The module generates a high-precision pure sine wave signal, ensuring compatibility with sensitive medical and laboratory equipment.
• Integrated Protection Logic: It offers built-in protection against overvoltage, undervoltage, overcurrent, and overheating to prevent system failure.
• Adjustable Frequency: Users can easily select between fixed 50Hz and 60Hz frequencies or use the variable 0−400Hz mode via jumper settings.
• LCD Real-Time Display: The included 12832 LCD screen displays essential data, allowing for immediate diagnostics and performance tracking.
• Dead-Time Control: Four adjustable dead-time settings (300ns, 500ns, 1.0us, and 1.5us) help prevent “shoot-through” in the power MOSFET stage.

Technical Specifications:

• Core Controller: EG8010 ASIC
• Gate Driver IC: Dual IR2110S
• Logic Voltage (VCC): +5 V_DC
• Driver Supply Voltage (VB): +12 V_DC to +20 V_DC
• Output Waveform: Pure Sine Wave
• Harmonic Distortion (THD): ≤ 3%
• Frequency Stability: ± 0.1 Hz
• Modulation Frequency: 20 KHz

Mechanical Specifications:

• Board Material: High-grade FR-4 glass fiber PCB
• Interface Type: 17-pin vertical header
• Display Interface: 7-pin dedicated LCD port
• Weight: ≈ 25 g (Combined board and LCD)

Dimensions:

• Driver Board Size: ≈ 62 mm x 33 mm
• LCD Module Size: ≈ 35 mm x 22 mm
• Pin Pitch: 2.54 mm

Pinout and Wiring:

• VCC/GND: Connect to the 5V logic power supply.
• 12V: Provide the 12V gate drive voltage for the IR2110S chips.
• 1LO/2LO & 1HO/2HO: Connect these pins to the gates of the H-bridge power MOSFETs.
• VFB/IFB: Voltage and current feedback pins used for closed-loop regulation and protection.
• TFB: Temperature feedback input for the thermal shutdown circuit.

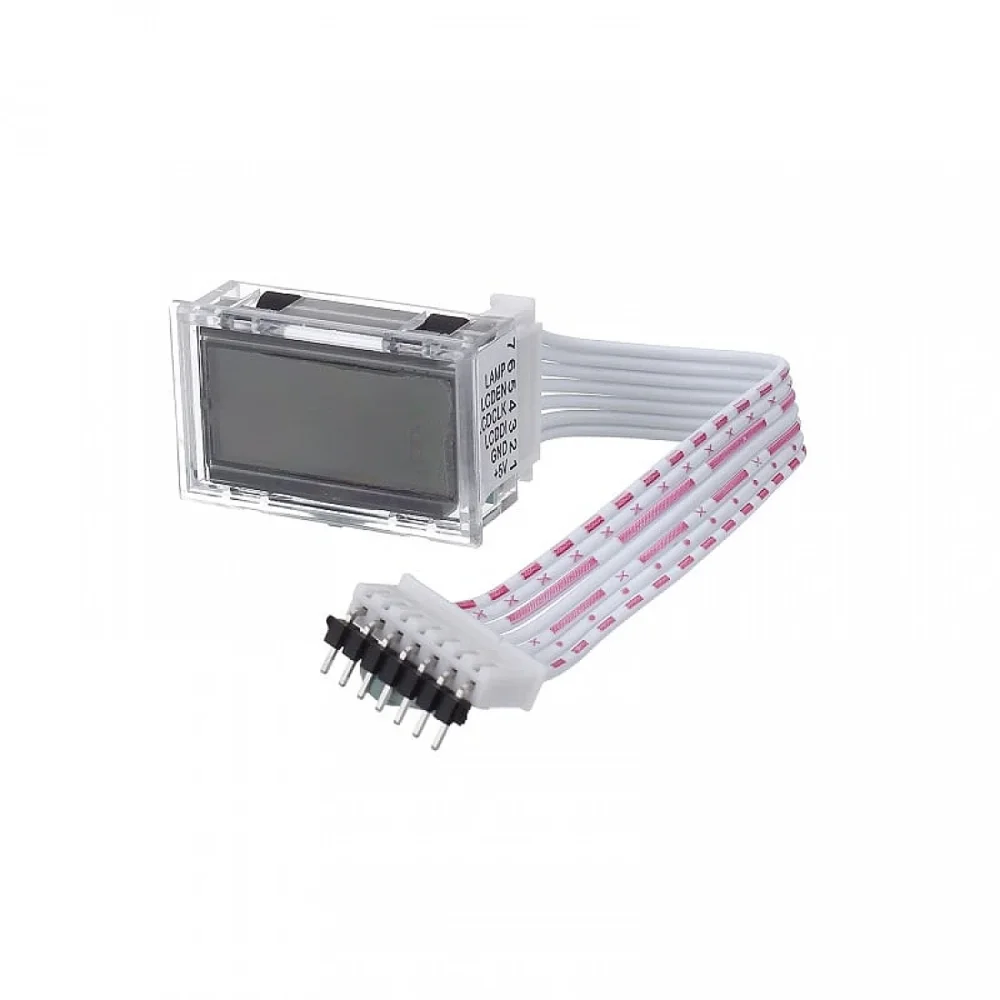

• LCD Port: Connect the 7-wire cable directly to the included LCD module.

Datasheet Reference:

• Download EGS002 / EG8010 Driver Board Datasheet

Commonly Used in:

• DIY Solar Inverters: Converting 12V, 24V, or 48V DC battery power into standard household AC.
• Uninterruptible Power Supplies (UPS): Providing a clean backup power source during utility failures.
• Variable Frequency Drives: Controlling AC motor speeds in experimental setups.

Applications:

• Single-Phase Inverters: Serves as the primary control logic for building 500W to 3000W pure sine wave inverters.
• Power Supply Prototyping: Ideal for academic research into power electronics and SPWM techniques.
• Wind Power Conversion: Stabilizing fluctuating AC from wind turbines through a DC-link stage.

Equivalent Models:

• EGS001: An earlier version without the specific LCD support and updated logic.
• EGS003: A newer high-power variant using the EG8011 chip, however, it features different pin configurations.
• KA225: A similar industrial-grade SPWM driver board used in commercial inverter units.

Package Includes:

• 1 x Pure Sine Wave Inverter Driver Board EGS002 LCD Display
• 1 x Connecting Ribbon Cable
