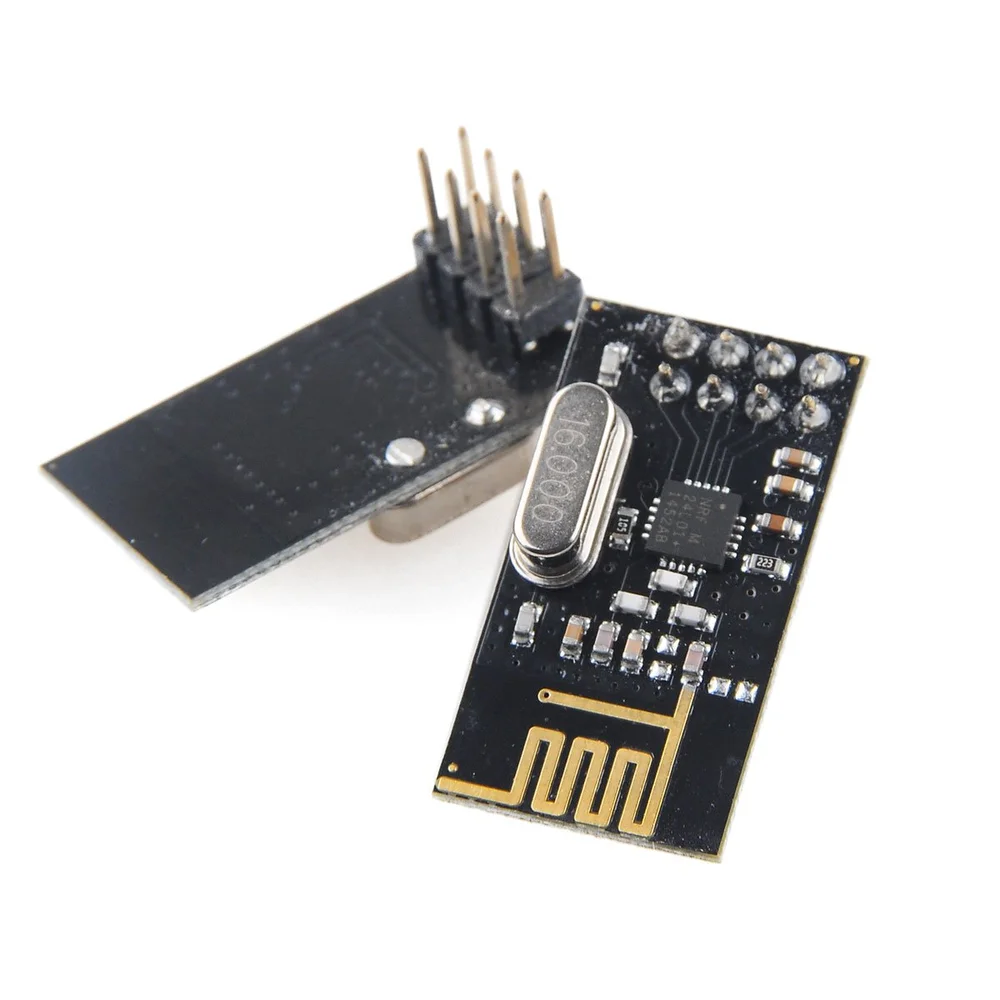

NRF24L01 2.4GHz Wireless Transceiver Module

NRF24L01 2.4GHz Wireless Transceiver Module offers a highly efficient and cost-effective solution for implementing wireless communication in a wide range of short-to-mid-range applications. This module utilizes the powerful Nordic Semiconductor nRF24L01+ IC, which operates in the globally available 2.4 GHz ISM band. The device seamlessly handles all high-speed link layer functions, including auto-acknowledgment and packet assembly. Consequently, it significantly simplifies wireless protocol implementation for host microcontrollers, allowing developers to focus primarily on application logic rather than complex radio management. Therefore, designers widely select this robust module for battery-powered devices and projects requiring multi-point or star network topologies.

Key Features:

• High Data Rate: Supports configurable air data rates of 250 kbps, 1 Mbps, and 2 Mbps, enabling quick data transfer with adjustable range/speed tradeoffs.
• Ultra-Low Power Consumption: Features various power-down modes, consuming mere microamperes in standby, making it ideal for battery-operated devices.
• Enhanced ShockBurst™: This protocol layer handles automatic packet retransmission and acknowledgment without requiring host MCU intervention, greatly improving link reliability.
• Multi-Channel Operation: The module supports up to 125 frequency channels, allowing multiple devices to operate simultaneously with minimal interference.
• SPI Interface: Uses the high-speed Serial Peripheral Interface (SPI) for simple and fast communication with microcontrollers.

Technical Specifications:

• Frequency Band: 2.400 GHz to 2.525 GHz (ISM Band)
• Max Air Data Rate: 2 Mbps
• Operating Voltage: 1.9 V to 3.6 V (Requires a 3.3 V supply, not 5 V tolerant)
• Maximum Output Power: 0 dBm (≈ 1 mW)
• RX Peak Current: ≈ 13 mA (at 2 Mbps)
• TX Peak Current: ≈ 11 mA (at 0 dBm output)
• Interface: 4-pin SPI plus Chip Enable (CE) and Interrupt (IRQ)
• Range: ≈ 10 to 100 meters (line of sight, depending on antenna type)

Mechanical Specifications:

• Package Type: Small PCB module with 2×4 male headers
• Antenna Type: Typically integrates an on-board PCB antenna (Standard model) or an external SMA connector (PA/LNA model).
• Pin Pitch: 2.54 mm (Standard breadboard compatibility)
• Shielding: Generally uses no external shielding, relying on the compact design.

Dimensions:

• Module Size (Standard): ≈ 29 mm x 15 mm (excluding pins)
• Antenna Length (PCB): ≈ 8 mm
• Weight: ≈ 2.5 g (Ultra-lightweight)

Pinout and Wiring:

• VCC: Connect to the regulated 3.3 V power supply (critical, never 5 V directly).
• GND: Connect to the circuit ground reference.
• CE (Chip Enable): Drive this pin high to enable TX or RX modes; connect to a microcontroller GPIO.
• CSN (Chip Select Not): SPI Chip Select signal; connect to a microcontroller GPIO.
• SCK (Serial Clock): SPI Clock input; connects to the MCU’s SCK pin.
• MOSI (Master Out Slave In): SPI Data Input; connects to the MCU’s MOSI pin.
• MISO (Master In Slave Out): SPI Data Output; connects to the MCU’s MISO pin.
• IRQ (Interrupt): Optional interrupt output pin, signals data ready or transmission complete.

Datasheet Reference:

• Download Nordic Semiconductor nRF24L01+ Datasheet

Commonly Used in:

• Hobbyist Robotics: Providing remote control links for quadcopters, RC cars, and robotic arms.
• Educational Platforms: Essential for teaching basic wireless communication concepts on Arduino and ESP32 platforms.
• Wireless Sensor Networks (WSNs): Acting as the node transceiver for collecting environmental data across a defined area.

Applications:

• Remote Control Systems: Implementing responsive, low-latency control links for consumer and industrial equipment.
• Wireless Data Logging: Sending periodic sensor readings from inaccessible locations to a central hub.
• Low-Power Intercoms: Creating short-range, point-to-point digital audio or data links.
• Home Automation: Enabling battery-powered switches, door sensors, and temperature monitors to communicate with a central gateway.

Equivalent Models:

• RFM73 (HopeRF): A pin-compatible 2.4 GHz transceiver module offering similar functionality and often acting as a direct drop-in replacement.
• Si24R1 (SiLabs Clone): A low-cost clone of the nRF24L01+, often used in high-volume, cost-sensitive manufacturing.
• CC2500 (Texas Instruments): A 2.4 GHz RF transceiver, however, it uses different software libraries and register mapping than the Nordic standard.

Package Includes:

• 1 x NRF24L01 2.4GHz Wireless Transceiver Module
