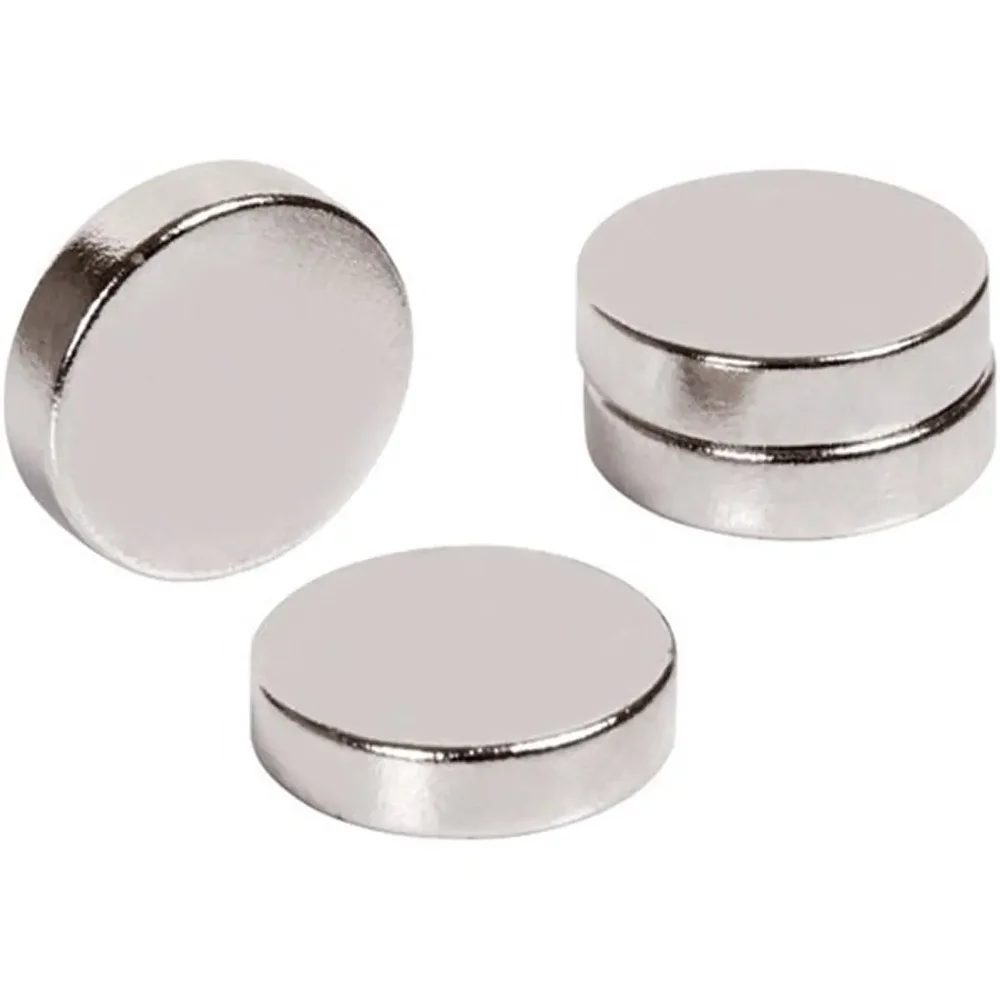

Neodymium Disc Strong Magnet – 10X2mm

Neodymium Disc Strong Magnet – 10X2mm provides an incredibly powerful magnetic force within a compact and versatile form factor suitable for precision engineering and creative projects. These Rare Earth magnets utilize a Neodymium-Iron-Boron (NdFeB) alloy to deliver the highest magnetic energy product available in the industry today. Consequently, they offer superior holding power compared to traditional ceramic or ferrite magnets of the same size. Designers and hobbyists can easily integrate these slim discs into assemblies where space is limited but high retention is required. Furthermore, the triple-layer Nickel-Copper-Nickel coating protects the material against corrosion and provides a smooth, aesthetic finish. Therefore, you should choose these 10x2mm discs for any application that demands reliable magnetic performance in a low-profile footprint.

Key Features:

• High Magnetic Grade: These magnets feature an N35 or higher grade rating, ensuring a high flux density and remarkable pull force for their small volume.
• Triple-Layer Coating: The Ni-Cu-Ni plating offers a durable shield against oxidation and environmental wear, extending the lifespan of the magnet significantly.
• Compact Profile: A thickness of only 2mm allows for discreet mounting in thin enclosures, magnetic closures, and precision sensors.
• High Coercivity: The material demonstrates excellent resistance to demagnetization, maintaining its strength even in the presence of external magnetic fields.
• Versatile Pairing: These discs work perfectly in pairs or with steel surfaces to create secure, reversible mechanical joints.

Technical Specifications:

• Material Type: Sintered Neodymium-Iron-Boron (NdFeB)
• Magnetic Grade: N35
• Remanence (Br): ≈ 11.7-12.2 kGauss
• Maximum Energy Product (BH_max): 33-36 MGOe
• Max Operating Temperature: 80°C (176°F)
• Curie Temperature: ≈ 310°C
• Pull Force: ≈ 0.8 kg to 1.2 kg (depending on surface contact and material)

Mechanical Specifications:

• Shape: Disc / Circular Cylinder
• Magnetization Direction: Axially Magnetized (Poles are on the flat circular faces)
• Plating/Coating: Nickel-Copper-Nickel (Ni-Cu-Ni)
• Tolerance: ±0.1 mm

Dimensions:

• Diameter: 10 mm
• Thickness: 2 mm
• Surface Area: ≈ 78.5 mm²
• Volume: ≈ 157 mm³

Magnetic Pole Details:

• North Pole: One flat circular face acts as the North seeking pole.
• South Pole: The opposite flat circular face acts as the South seeking pole.
• Mounting Note: However, users must exercise caution during assembly; because these magnets are brittle, allowing them to snap together violently can cause them to chip or shatter.
• Adhesive Compatibility: For permanent fixing, use high-strength cyanoacrylate or epoxy resins on the nickel-plated surface.

Datasheet Reference:

• Download Neodymium N35 Material Properties Datasheet

Commonly Used in:

• Consumer Electronics: Small lid sensors, magnetic switches, and internal component mounting.
• Packaging: Premium gift boxes and folders featuring invisible magnetic closures.
• DIY Projects: Miniatures, jewelry clasps, and modular tabletop gaming terrain.

Applications:

• Hall Effect Sensing: Triggering Hall effect sensors in speedometers or proximity detection circuits.
• Cabinet Hardware: Acting as high-strength catches for small cabinet doors or hidden compartments.
• Magnetic Stirrers: Driving internal stir bars in laboratory or DIY chemistry setups.
• Workholding: Securing blueprints or tools to steel surfaces in organized workshops.

Equivalent Models:

• Magcraft NSN0591: A similar sized Neodymium disc with comparable magnetic properties.
• K&J Magnetics D61: A functionally equivalent 3/8 inch x 1/16 inch magnet, nonetheless, the 10x2mm is the metric standard.
• StrongMagnets SM102: An industry alternative specifically designed for industrial fastening tasks.

Package Includes:

• 1 x Neodymium Disc Strong Magnet – 10X2mm
