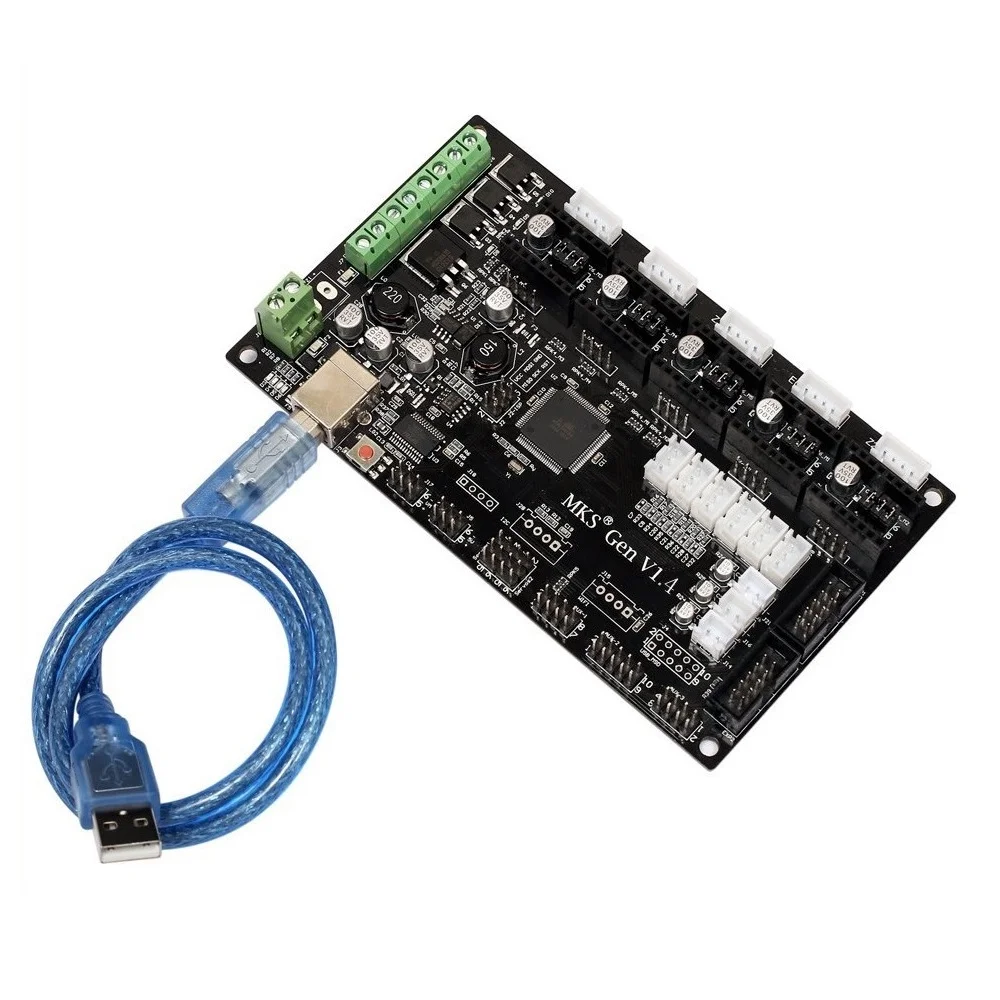

MKS GEN V1.4 3D Printer Control Motherboard

MKS GEN V1.4 3D Printer Control Motherboard provides an all-in-one solution for makers and engineers seeking a reliable, high-performance brain for their desktop 3D printers and CNC machines. This board effectively integrates the power of an Arduino MEGA 2560 and a RAMPS 1.4 interface onto a single, high-quality four-layer PCB. Consequently, it eliminates the common connectivity issues associated with stacked board designs while improving thermal dissipation. Users can easily customize their motor power because the board supports modular stepper drivers like the A4988, DRV8825, or TMC series. Furthermore, the inclusion of dedicated ports for dual extruders and multiple endstops ensures that this controller scales with your project needs. Therefore, the MKS GEN V1.4 stands as an industry-standard choice for achieving stable, long-term 3D printing performance.

Key Features:

• Integrated Design: Combines the Mega 2560 and RAMPS 1.4 logic onto a single board to reduce wiring complexity and potential failure points.
• High-Quality MOSFETs: Features premium MOSFETs that handle higher currents for heated beds and extruders with minimal heat buildup.
• Flexible Power Input: Supports a wide input range from 12 V to 24 V, allowing users to run fans and heaters at higher voltages for faster response times.
• Modular Driver Support: Utilizes standard pin headers for stepper drivers, so you can easily upgrade or replace individual drivers without discarding the motherboard.
• Enhanced Connectivity: Includes dedicated interfaces for LCD displays (LCD2004 or LCD12864), servos, and various expansion modules via the auxiliary ports.

Technical Specifications:

• Microcontroller: ATmega2560 (8-bit)
• Input Voltage Range: 12 V to 24 V DC
• Stepper Driver Slots: 5 (Supports X, Y, Z, E0, E1)
• Firmware Compatibility: Marlin, Repetier, and Smoothieware (standard Arduino environment)
• Communication Interface: USB Type-B via FT232 or CH340 serial chip
• PWM Outputs: 3 (For Heatbed, Extruder 0, and Extruder 1/Fan)
• Thermistor Inputs: 3 (NTC 100K standard)

Mechanical Specifications:

• PCB Material: FR-4 High-Grade 4-layer board
• Mounting Holes: 4 x 3.2 mm holes for secure chassis installation
• Connector Types: JST-XH headers for endstops/thermistors and screw terminals for high-current power input.
• Color: High-contrast black solder mask with white silk-screen labeling.

Dimensions:

• Board Length: 143 mm
• Board Width: 84 mm
• Board Height: ≈ 15 mm (excluding mounted drivers)
• Weight: ≈ 120 g

Pinout and Wiring:

• Power Terminals: Connect the main DC input (12-24 V) to the primary screw terminal block, ensuring correct polarity.
• Motor Headers: Insert stepper drivers into the color-coded slots; however, ensure the driver orientation is correct to prevent permanent damage.
• Endstops: Connect mechanical or optical limit switches to the X, Y, and Z min/max headers.
• LCD Port: Use the EXP1 and EXP2 headers to connect external smart controllers or touchscreens.
• Note: Always disconnect power before adjusting jumpers or inserting motor drivers to protect the onboard logic.

Datasheet Reference:

• Download MKS GEN V1.4 Pinout and Hardware Manual

Commonly Used in:

• DIY 3D Printers: Powering popular builds like the Prusa i3, Anet A8, and custom CoreXY machines.
• CNC Routers: Providing the control logic for small-scale desktop milling and engraving systems.
• Laser Engravers: Managing the X-Y motion and PWM laser intensity control.

Applications:

• Rapid Prototyping: Enabling fast iteration of mechanical parts via additive manufacturing.
• Educational Projects: Serving as an accessible platform for teaching robotics and motion control.
• Custom Automation: Acting as the centralized controller for automated pick-and-place or liquid handling systems.

Equivalent Models:

• MKS Gen L: A slightly more compact version focusing on single-voltage operation.
• RAMPS 1.4 with Arduino Mega: The traditional modular stack; nevertheless, the MKS GEN V1.4 offers superior thermal performance.
• SKR V1.3/V1.4: A 32-bit alternative for users seeking higher processing speeds for complex kinematics.

Package Includes:

• 1 x MKS GEN V1.4 3D Printer Control Motherboard
• 1 x USB Type-B Data Cable
