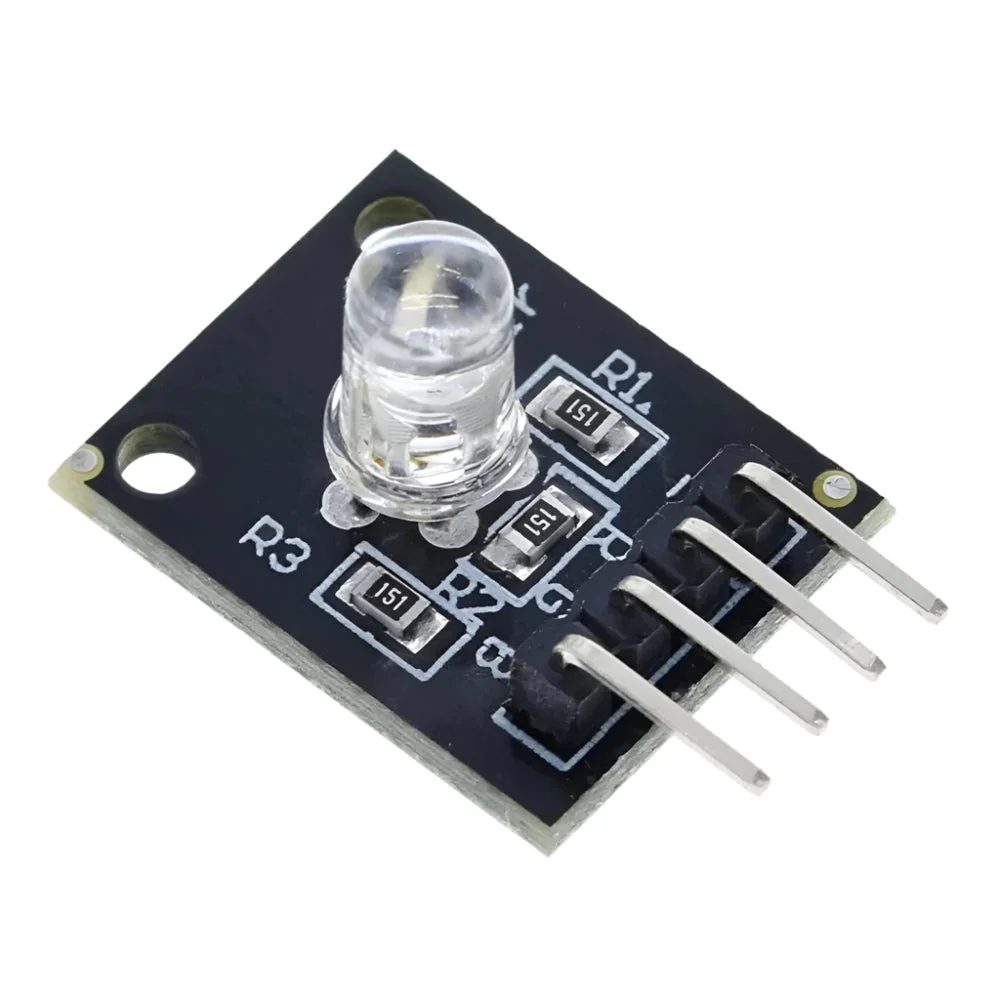

KY-016 3-Color 5mm Full-Color RGB LED Module

₹22.00

In stock ?

In stock

SKU: 999-1-12 Category: Brand:

KY-016 3-Color 5mm Full-Color RGB LED Module is a versatile full-color lighting breakout board equipped with a 5mm common cathode diffused RGB LED. Designed to interface easily with Arduino, ESP32, and PIC microcontrollers, it features 4-pin male headers that allow individual PWM brightness control across the red, green, and blue color channels, producing full-spectrum color blending for indicator panels and interactive displays.

Key Features:
  • 5mm Diffused RGB LED: Encapsulates red, green, and blue light-emitting dies inside a diffused epoxy lens for smooth, even color mixing.
  • Common Cathode Configuration: Shares a single ground terminal, simplifying wiring to microcontroller GPIO pins.
  • Full-Spectrum Color Blending: Utilizing pulse-width modulation (PWM) allows rendering over 16 million color combinations.
  • Standard 2.54mm Header: 4-pin male header compatible with standard breadboards and female-to-male Dupont jumper cables.
  • Educational & Prototyping Ready: Ideal for beginners learning PWM dimming, additive color theory, and digital output concepts.
  • Compact Module Footprint: Minimal PCB dimensions fit into tight enclosures and robotic control faces.
Technical Specifications:
  • Operating Logic Voltage: 3.3V to 5.0V DC (requires current-limiting resistors)
  • Forward Voltage: Red: 1.8V–2.2V DC; Green: 2.8V–3.2V DC; Blue: 2.8V–3.2V DC
  • Forward Current: 20 mA maximum per channel (recommended 10–15 mA)
  • Luminous Wavelengths: Red: 620–630 nm, Green: 515–525 nm, Blue: 465–475 nm
  • LED Package: 5mm round diffused epoxy DIP LED
  • Control Interface: 3 PWM digital channels plus shared ground cathode
  • Operating Temperature: -25°C to +85°C
Mechanical Specifications:
  • Form Factor: Standard rectangular sensor breakout PCB
  • Board Material: Double-sided FR4 laminate with black solder mask
  • Mounting: Direct breadboard plug-in or standoff mounting
  • Connector Pitch: 2.54mm (0.1 in) standard 4-pin male header
  • Weight: Approximately 3.0 g
Dimensions:
  • Overall Length: 19.0 mm
  • Overall Width: 15.0 mm
  • Overall Height: 14.0 mm
Pinout and Wiring:
  • R (Red Anode): Connects to PWM-capable microcontroller GPIO via 220Ω–330Ω current-limiting resistor
  • G (Green Anode): Connects to PWM-capable microcontroller GPIO via 220Ω–330Ω current-limiting resistor
  • B (Blue Anode): Connects to PWM-capable microcontroller GPIO via 220Ω–330Ω current-limiting resistor
  • – / GND (Cathode): Connects directly to microcontroller system ground (0V)
Datasheet Reference:
  • Refer to the standard 5mm RGB Common Cathode LED datasheet and KY-016 breakout schematic for forward voltage drop charts, maximum pulse ratings, and recommended limiting resistor values.
Commonly Used in:
  • Microcontroller multi-state visual status indicators and system health monitors
  • Mood lights, desktop glowing ambient lamps, and decorative electronic displays
  • Educational Arduino starter kits teaching PWM analogWrite functions and color theory
  • Robotics facial expression and battery capacity visualizers
Applications:
  • Microcontroller status indicator
  • RGB additive color mixing demonstrator
  • Audio frequency visualizer
  • Robotic mood indicator lamp
  • STEM classroom electronics tutorials
Equivalent Models:
  • KY-009 SMD 5050 RGB LED Module
  • 5mm Diffused Common Cathode RGB LED Breakout
  • Keyestudio 3-Color RGB LED Module
  • WS2812B Addressable Smart RGB LED
Package Includes:
  • 1 × KY-016 3-Color 5mm Full-Color RGB LED Module
Weight 4 g
