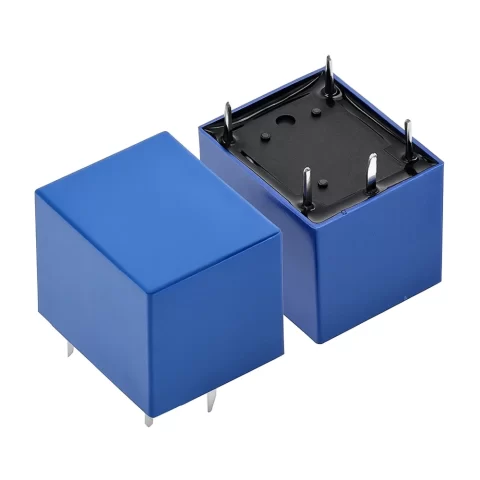

HF33F-Z3 24V 5A SPDT RELAY PCB MOUNT 5-PIN

The HF33F-Z3 24V 5A SPDT Relay is a reliable and versatile relay designed for various switching applications. With a Single Pole Double Throw (SPDT) configuration, it allows control over two different circuits using a single relay. This makes it suitable for use in automation systems, home appliances, and other electronic projects that require reliable switching with low power consumption.

Key Features of HF33F-Z3 24V 5A SPDT Relay PCB Mount 5-Pin:

• • SPDT Configuration: Single Pole Double Throw for versatile switching between two circuits.
  • 24V Operating Voltage: Designed to operate efficiently with a 24V DC power supply.
  • 5A Switching Current: Capable of switching loads up to 5A, suitable for various applications.
  • PCB Mountable: Designed for easy mounting on a PCB with 5-pin configuration.
  • Compact Size: Small form factor for space-saving integration into electronic circuits.
  • Low Power Consumption: Efficient operation with minimal power usage.

Technical Specifications of HF33F-Z3 24V 5A SPDT Relay PCB Mount 5-Pin:

• • Relay Type: SPDT (Single Pole Double Throw)
  • Operating Voltage: 24V DC
  • Coil Resistance: Approximately 1600 ohms
  • NO Contact Rating: 5A at 250V AC or 30V DC
  • Pin Configuration: 5-pin for PCB mounting
  • Operating Temperature Range: -40°C to +85°C
  • Dimensions: Compact design for easy integration

Mechanical Specifications of HF33F-Z3 24V 5A SPDT Relay PCB Mount 5-Pin:

• • Package Type: PCB mountable relay with 5-pin configuration
  • Material: Durable plastic housing with metal contacts
  • Dimensions: Typically around 19mm x 15mm x 15mm
  • Weight: Lightweight design for easy handling

Schematic Diagram, Connection, Wiring, and Pinout of HF33F-Z3 24V 5A SPDT Relay PCB Mount 5-Pin:

• • Pin Configuration: Refer to the datasheet for detailed pinout and connection instructions.
  • Wiring: Connect the relay coil to a 24V DC power source and wire the contacts according to your circuit requirements.
  • Connection: Ensure proper connection to avoid short circuits and incorrect operation.

Datasheet of HF33F-Z3 24V 5A SPDT Relay PCB Mount 5-Pin:

• • For detailed technical specifications and electrical characteristics, refer to the HF33F-Z3 datasheet.

Applications of HF33F-Z3 24V 5A SPDT Relay PCB Mount 5-Pin:

• • Automation Systems: Ideal for use in automation and control systems.
  • Home Appliances: Suitable for switching circuits in home appliances and electronics.
  • DIY Electronics Projects: Perfect for hobbyists working on various switching applications.
  • Industrial Controls: Useful in industrial control systems for switching loads.
  • Power Management: Efficient for managing power in electronic devices.

Equivalent of HF33F-Z3 24V 5A SPDT Relay PCB Mount 5-Pin:

• • Omron G5V-1: Similar SPDT relay with 24V coil voltage.
  • Shrack RT314F24: Another equivalent SPDT relay with similar specifications.

Keywords for HF33F-Z3 24V 5A SPDT Relay PCB Mount 5-Pin:

• • HF33F-Z3 SPDT Relay
  • 24V Relay PCB Mount
  • 5A SPDT Relay
  • PCB Mount Relay
  • Single Pole Double Throw Relay

Package Includes:

• • 1 x HF33F-Z3 24V 5A SPDT Relay PCB Mount 5-Pin
