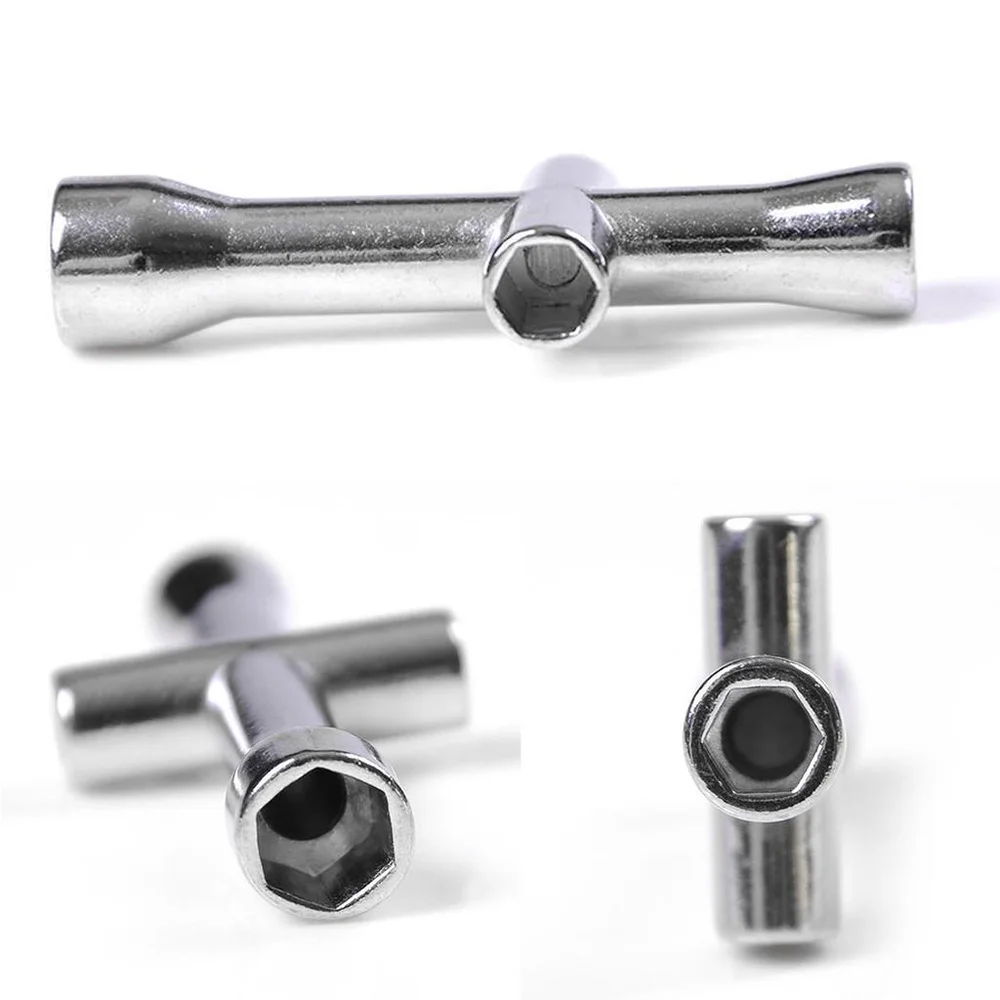

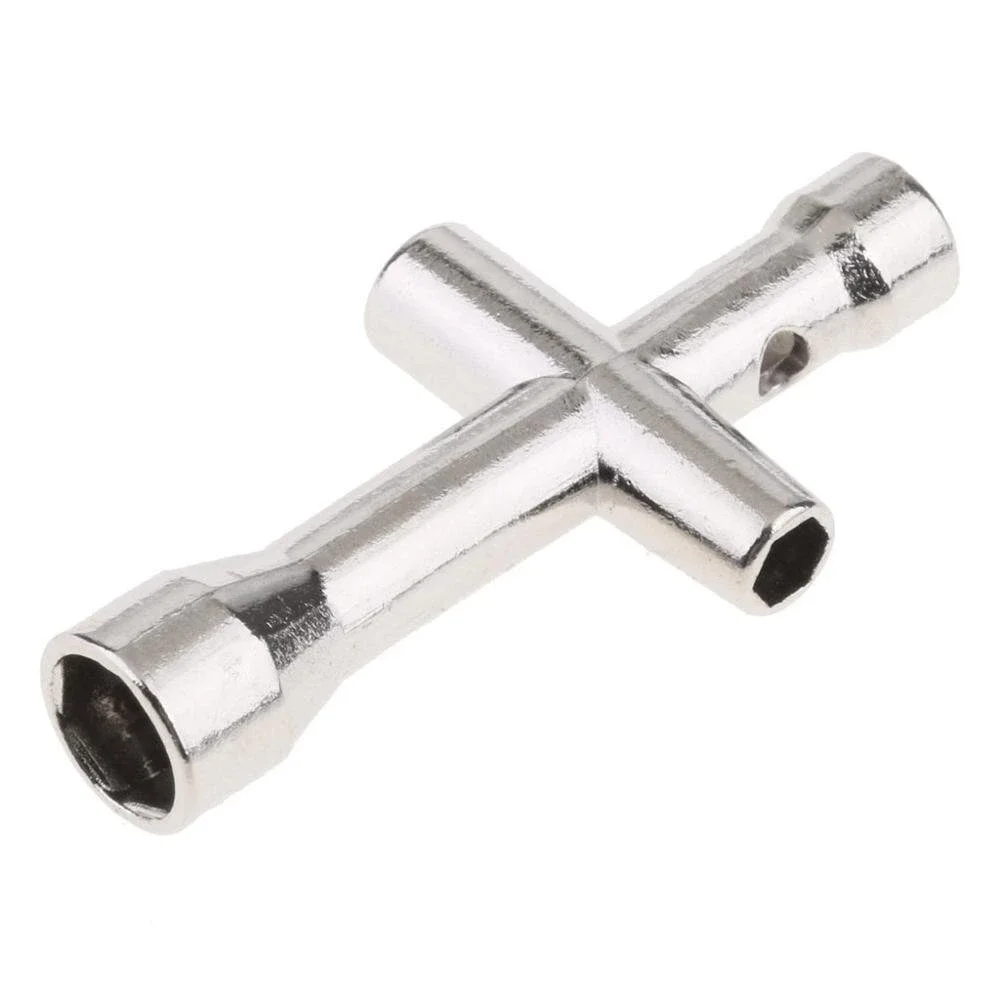

Hexagonal Cross Wrench Sleeve Nut Tool

Hexagonal Cross Wrench Sleeve Nut Tool is a versatile, multi-size hand tool engineered specifically for precision maintenance and assembly of small-scale mechanical components. This cross-style socket wrench provides four distinct hexagonal sleeve sizes in a single, compact body, allowing hobbyists and technicians to swap between different nut dimensions rapidly. Consequently, it eliminates the need for carrying multiple individual wrenches during intricate work on RC vehicles, 3D printers, or small robotic assemblies. The robust zinc alloy construction ensures durability while the ergonomic cross design provides excellent leverage for tightening or loosening fasteners. Therefore, you should include this essential tool in your repair kit to streamline your workflow and handle various M2, M2.5, M3, and M4 hexagonal nuts with ease.

Key Features:

• 4-in-1 Design: This tool features four different socket sizes (4 mm, 5 mm, 5.5 mm, and 7 mm), making it compatible with a wide range of common metric hexagonal nuts.
• High-Leverage Shape: The cross-arm geometry allows users to apply significant torque with minimal effort, which is particularly helpful for securing stubborn fasteners.
• Zinc Alloy Construction: Manufacturers utilize high-strength zinc alloy to provide a rigid, corrosion-resistant body that withstands repetitive use.
• Compact Portability: Its small footprint fits easily into pockets or small tool bags, ensuring you always have the right size available for field repairs.
• Precision Molding: Each socket head features precise internal dimensions to prevent rounding of nut corners during high-torque applications.

Technical Specifications:

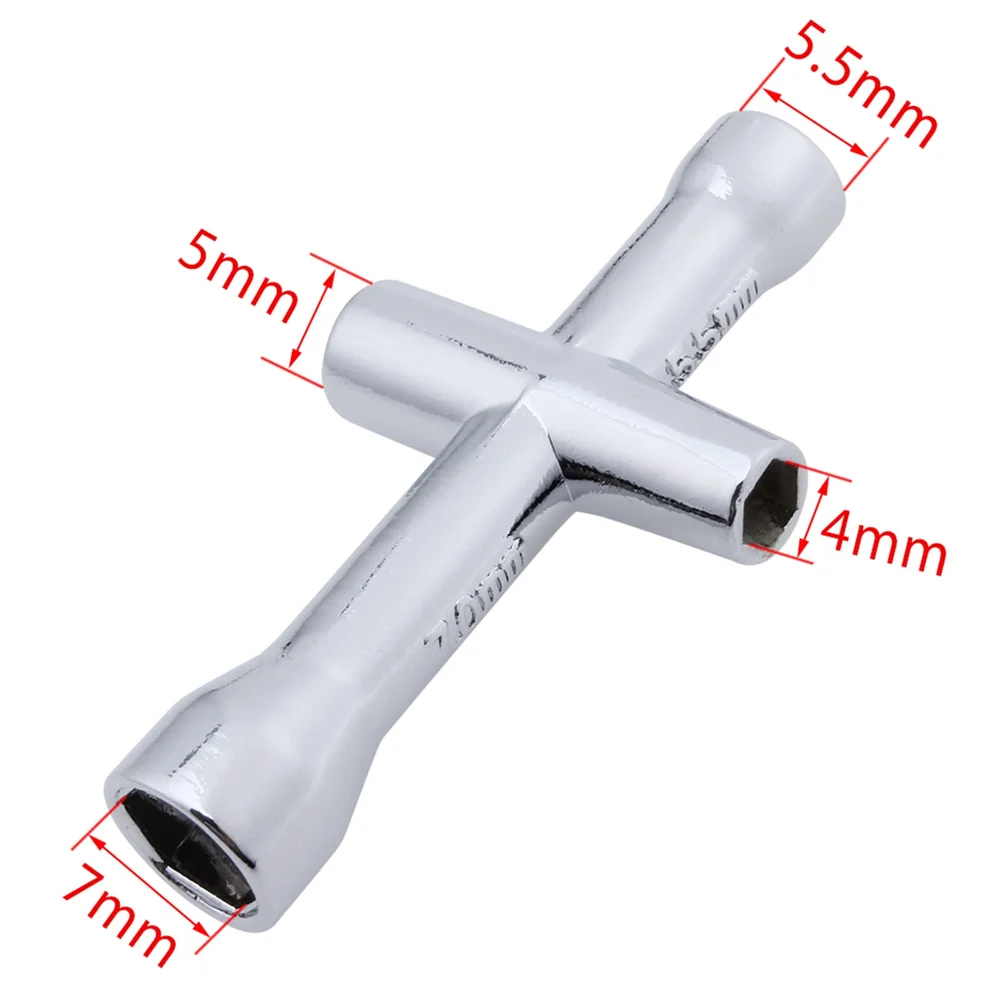

• Socket Sizes: 4 mm, 5 mm, 5.5 mm, and 7 mm
• Nut Compatibility: Optimized for M2, M2.5, M3, and M4 hexagonal nuts
• Material Grade: Industrial Strength Zinc Alloy
• Finish: Polished Metallic or Matte Silver (Corrosion resistant)
• Hardness: ≈ 45-50 HRC

Mechanical Specifications:

• Structural Form: Cross-style (X-shape) monolithic casting
• Torque Capability: High leverage for manual hand-tightening applications
• Resistance: Highly resistant to bending and structural deformation under standard manual load
• Surface Treatment: Electroplated coating for enhanced wear resistance

Dimensions:

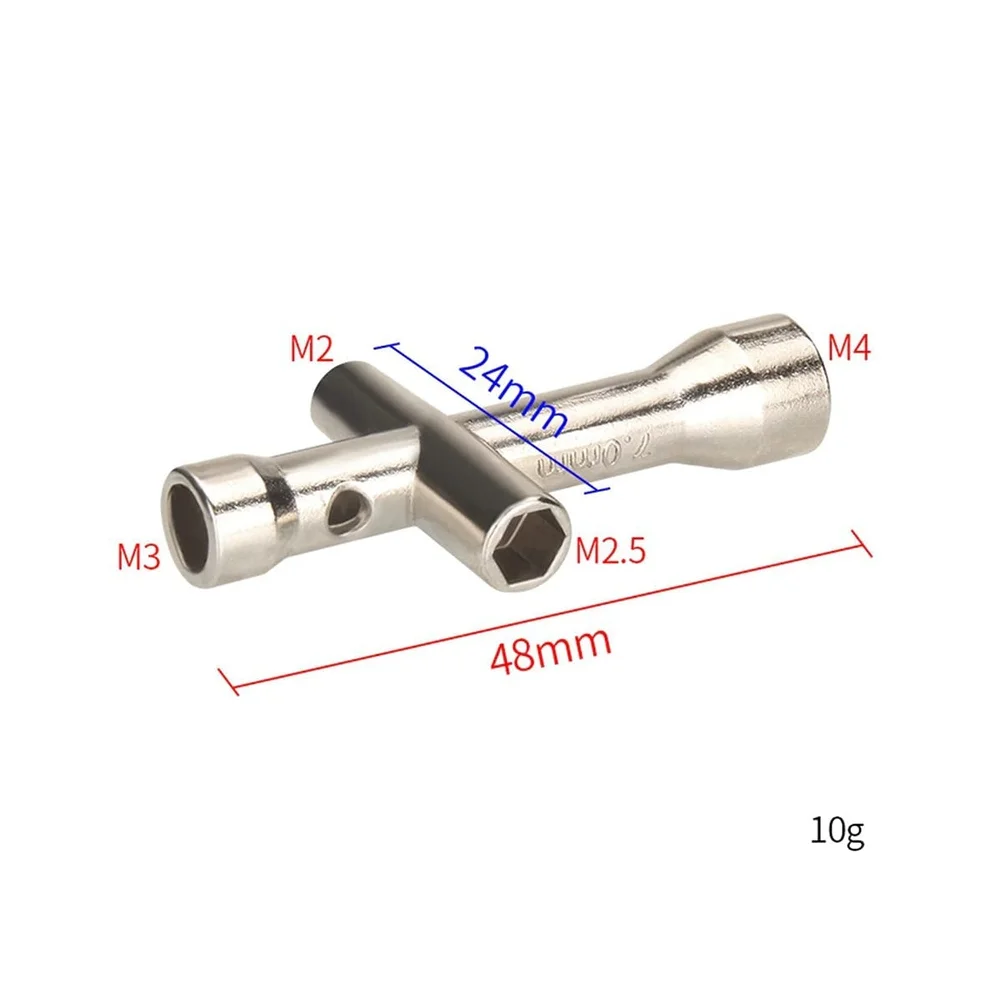

• Overall Length: ≈ 48 mm
• Overall Width: ≈ 25 mm
• Socket Depths: ≈ 5 mm to 8 mm (varying by head size)
• Thickness: ≈ 10 mm at the center junction
• Weight: ≈ 12 g (Ultra-lightweight for precision handling)

Datasheet Reference:

• Download General Cross Wrench Tool Specifications

Commonly Used in:

• RC Hobbyist Kits: Technicians frequently use this tool for adjusting wheel nuts and chassis fasteners on RC cars, drones, and planes.
• 3D Printer Maintenance: Furthermore, it serves as a primary tool for securing nozzle components and frame nuts on various FDM 3D printers.
• Educational Robotics: Students utilize these wrenches to assemble metal robot chassis and gear motor brackets.

Applications:

• Fastener Installation: Quickly installing M2 through M4 nuts during the prototyping of electronic enclosures.
• Field Repairs: Performing rapid adjustments on mechanical linkages during outdoor drone racing or RC competitions.
• DIY Electronics: Securing standoffs and spacers on printed circuit boards and acrylic mounting plates.

Equivalent Models:

• HSP 80129: A popular alternative cross wrench often found in nitro and electric RC car starter kits.
• Small Cross Socket Wrench (Silver Edition): Generic equivalent found in many 3D printer accessory bags.
• M2/M3/M4 Multi-Tool: Functional equivalent usually bundled with educational robotics hardware sets.

Package Includes:

• 1 x Hexagonal Cross Wrench Sleeve Nut Tool (Small Multi-Size Model)
