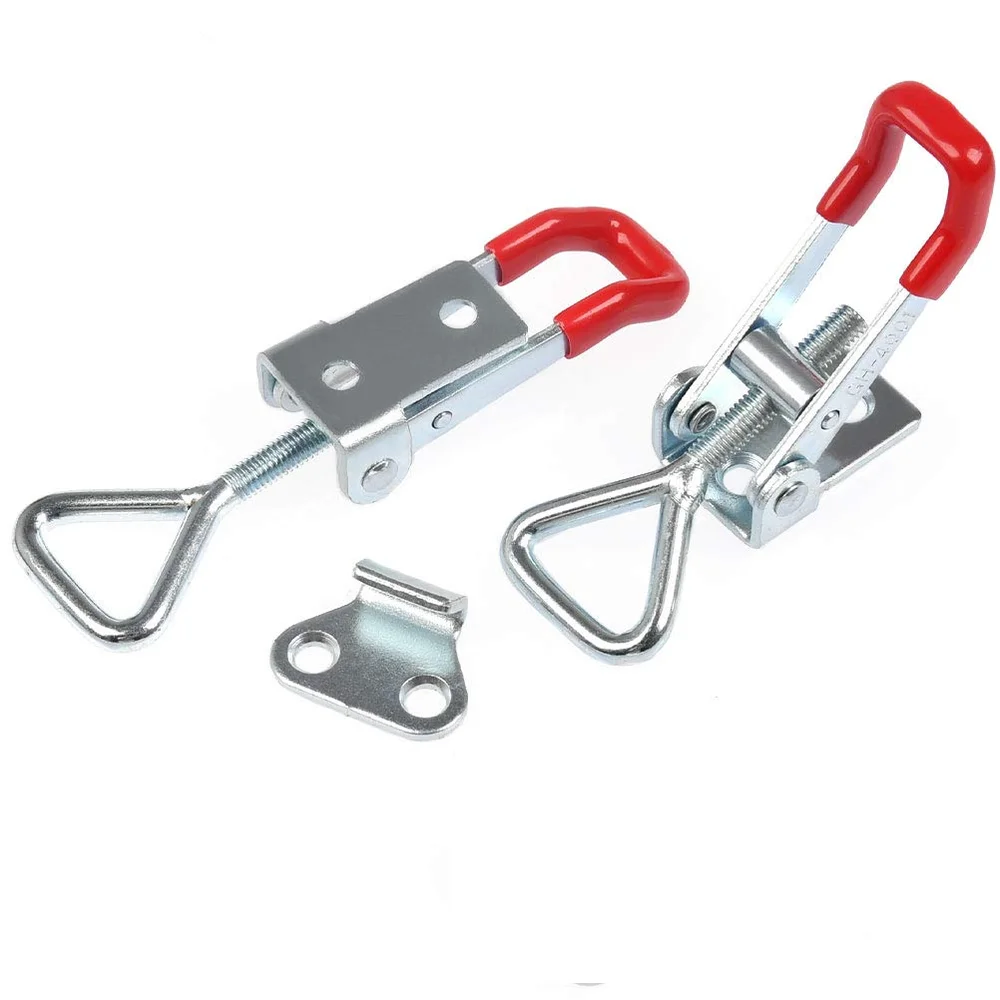

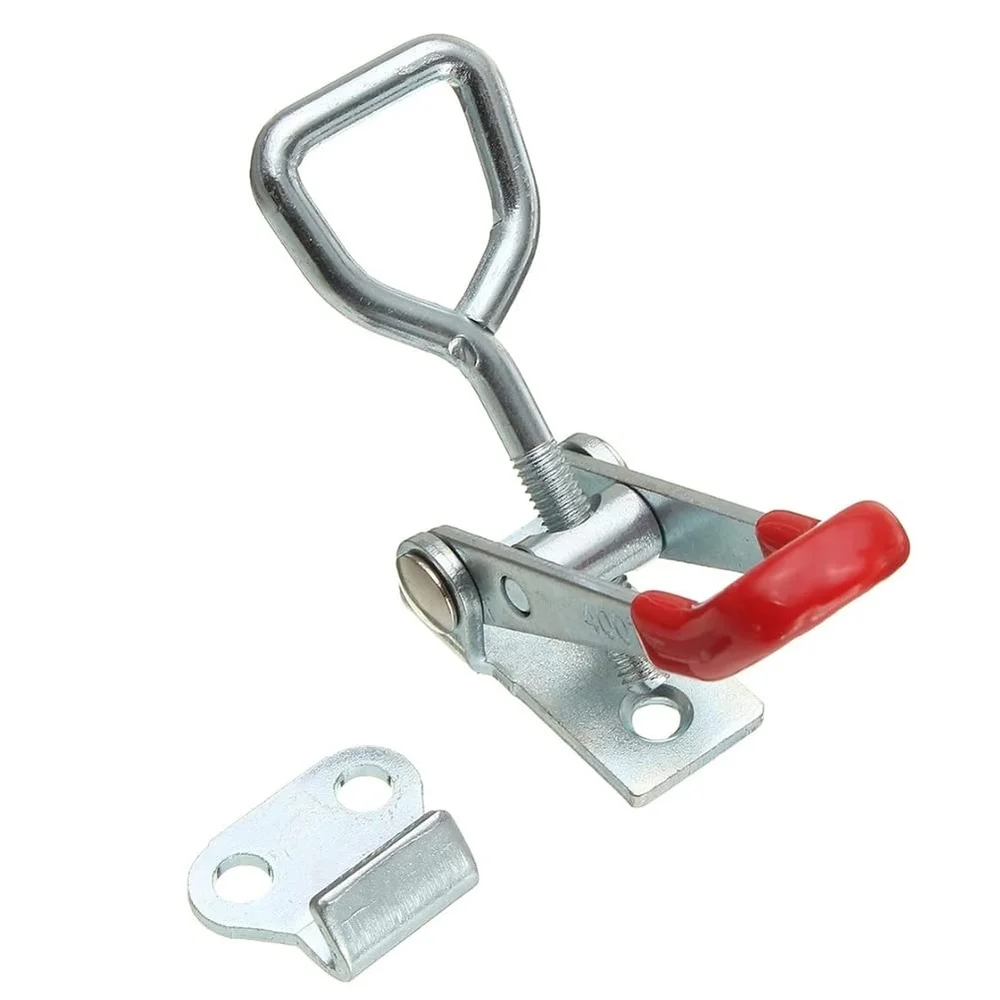

GH-4001 Metal Catch Clasp Quick Release Clamp

GH-4001 Metal Catch Clasp Quick Release Clamp is a robust, compact toggle latch designed for secure fastening and rapid unlatching in demanding industrial and fabrication environments. This sturdy clasp utilizes a mechanical lever action to apply powerful clamping force, ensuring components or panels remain firmly held under vibration and stress. Consequently, it provides a reliable, heavy-duty closure mechanism superior to standard hook-and-loop fasteners or simple latches. Constructed from durable galvanized iron or stainless steel, the GH-4001 resists corrosion and withstands repeated use. Therefore, engineers and builders frequently choose this specific model when requiring fast access combined with high holding capacity.

Key Features:

• High Clamping Force: The toggle action mechanism exerts significant closing force, ensuring a tight seal or secure join between fastened components.
• Quick Release Operation: Users can effortlessly disengage the latch with a simple lever movement, maximizing operational efficiency.
• Durable Construction: Built from galvanized metal or equivalent alloys, the clasp resists rust and wear, furthermore, ensuring long service life in harsh environments.
• Adjustable U-Bolt Hook: Features a U-bolt hook that allows for adjustable reach and tension, accommodating slight variations in mounting alignment or material thickness.
• Safety Latch Hole: The lever includes a hole to accept a padlock or safety pin, preventing accidental opening under vibration or unauthorized tampering.

Technical Specifications:

• Holding Capacity (Force): Approximately 100 kgf to 150 kgf (Varies by manufacturer, consult specific datasheet for exact rating)
• Material: Galvanized Iron or Stainless Steel (Varies by model suffix)
• Maximum Load: ≈ 1000 N (100 kg)
• Mounting Hole Diameter: Typically 4 mm to 5 mm
• Operating Temperature: Suitable for standard industrial temperatures (−30°C to +100°C)

Mechanical Specifications:

• Clamping Action: Horizontal/Pull Toggle Latch
• Type: Catch Plate and Hook Style
• Finish: Zinc Plated for corrosion resistance (Galvanized Iron version)
• Handle Grip: Non-slip red vinyl or plastic handle cover (Common standard)

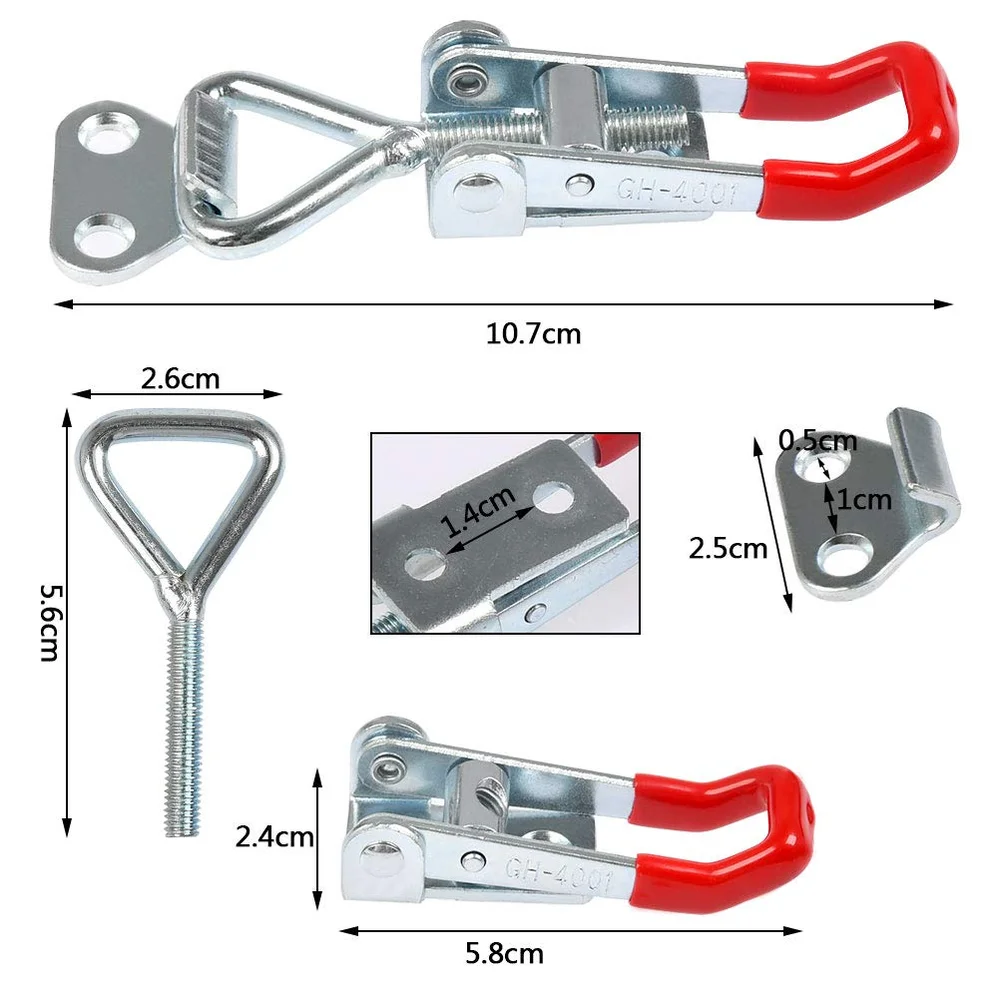

Dimensions:

• Total Length (Latched): ≈ 99 mm
• Base Plate Width: ≈ 28 mm
• Base Plate Length: ≈ 20 mm
• Mounting Holes (Handle Base): Typically two or three holes per piece
• Total Weight: ≈ 100 g

Pinout and Wiring:

• Note: This is a purely mechanical component and requires no electrical connection or wiring.
• Handle/Lever: Operates the toggle mechanism to lock or release the hook.
• Base Plate: Mounts securely to the stationary surface.
• Hook/U-Bolt: Catches the strike plate and provides adjustable tension.
• Strike Plate (Keeper): Mounts to the mating surface or panel, providing the anchor point for the hook.

Datasheet Reference:

• Download GH-4001 Toggle Clamp Mechanical Reference

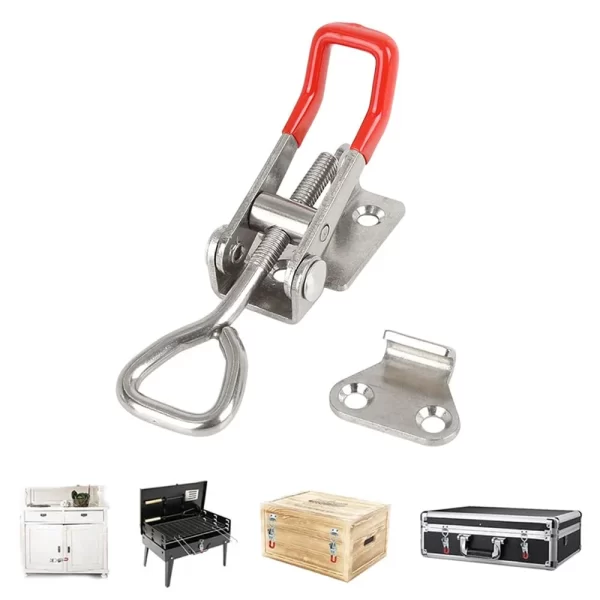

Commonly Used in:

• Jigs and Fixtures: Providing quick, secure clamping on welding and assembly jigs.
• Tool Boxes and Cases: Serving as the durable, locking closure mechanism on heavy-duty containers.
• Machinery Guards and Covers: Fastening safety shields and access panels that require routine removal.

Applications:

• Mold and Die Clamping: Securing mold halves or fixtures during production processes.
• Vibration Control: Maintaining tight closure on doors and hatches subject to high vibration, similarly, on marine or automotive equipment.
• Temporary Structure Assembly: Quickly locking temporary scaffolding or exhibition components together.

Equivalent Models:

• Good Hand GH-400-UB: Often refers to the same adjustable U-bolt latch type within the Good Hand product line.
• De-Sta-Co 341-B: A leading industrial brand equivalent offering a similar pull-action latch with comparable holding capacity.
• GH-4002: A slightly larger or heavier-duty version in the same series, however, the function remains the same.

Package Includes:

• 1 x GH-4001 Toggle Clamp (Includes Latch Body and Matching Catch Plate)
