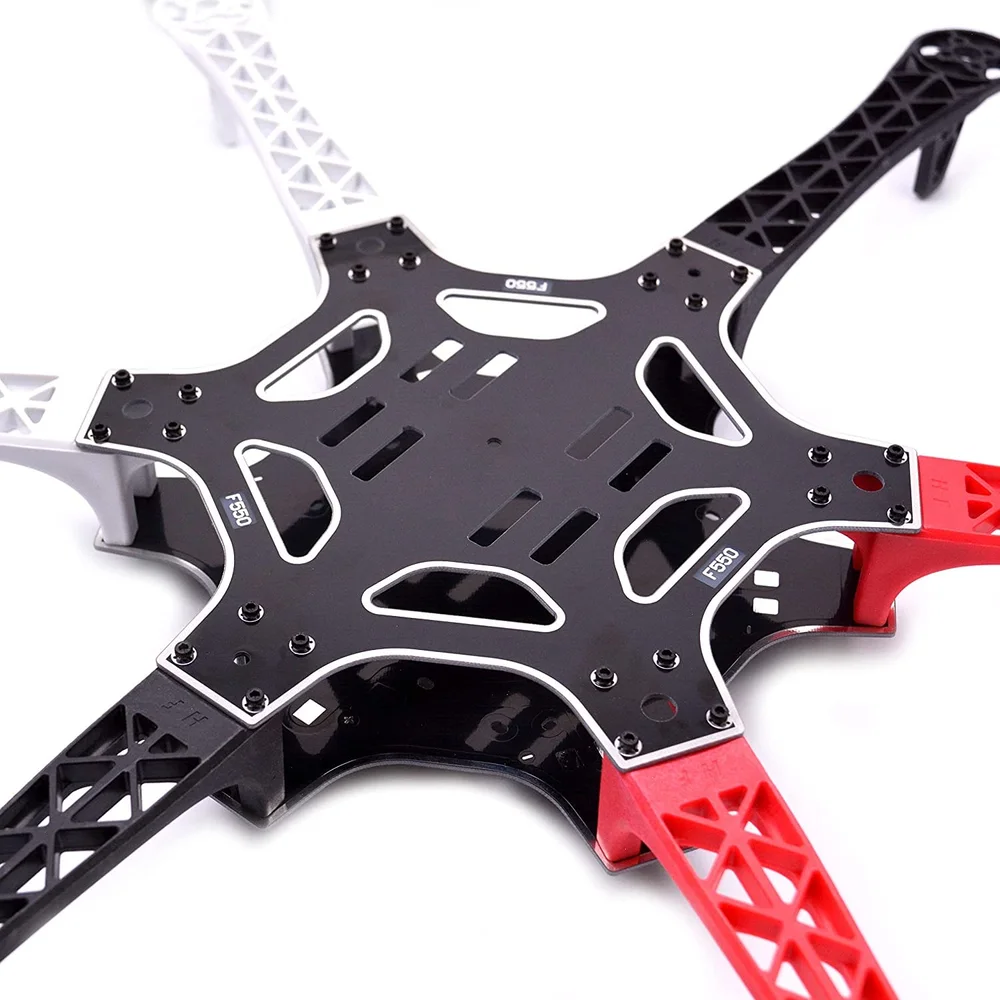

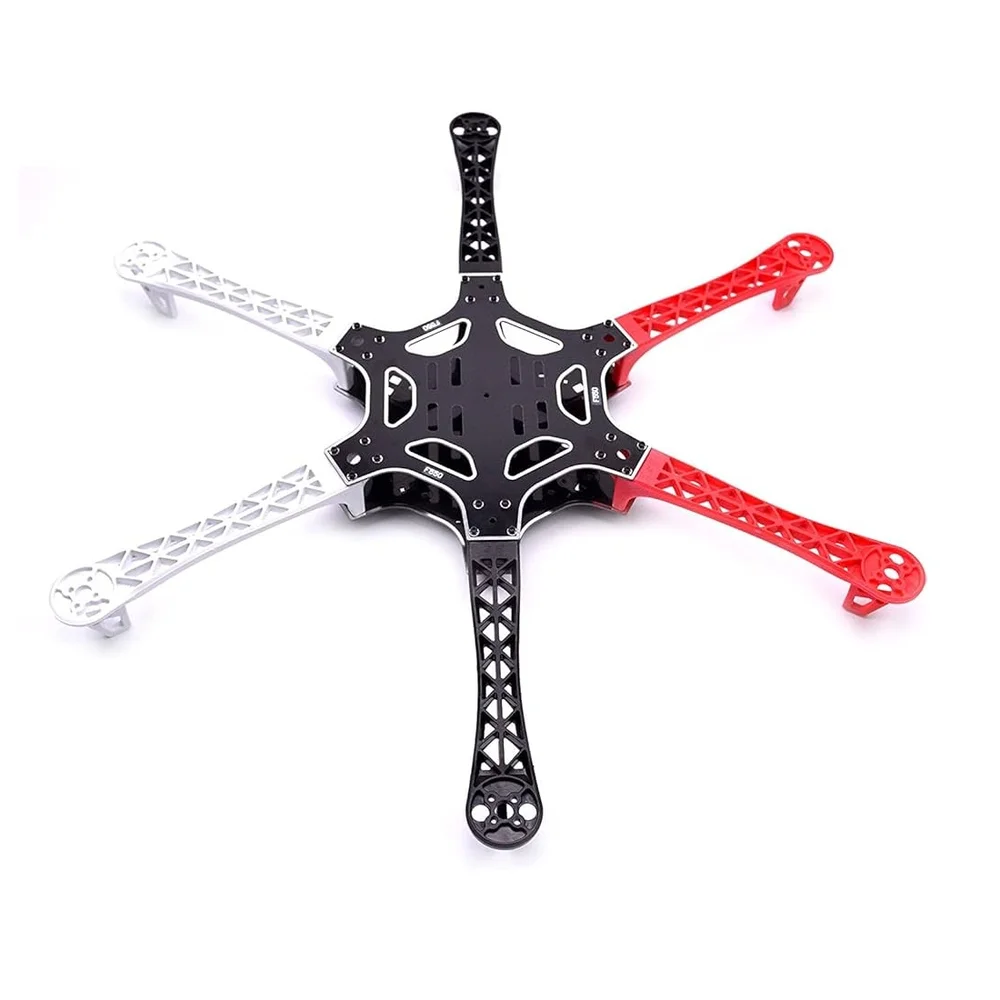

F550 Hexacopter drone frame Kit with integrated PCB

F550 Hexacopter Drone Frame Kit with Integrated PCB offers a robust and adaptable platform for advanced drone builders, providing the stability and lift capacity of a six-rotor configuration. This popular frame kit features high-strength fiberglass center plates and durable composite arms. Crucially, the upper and lower center plates incorporate a pre-soldered power distribution board (PDB). This integrated PCB simplifies wiring by eliminating the need for complex, messy harnesses, allowing you to directly solder your Electronic Speed Controllers (ESCs) and battery leads onto the main board. Consequently, you can achieve a cleaner, lighter, and more reliable build. Therefore, the F550 is the optimal choice for capturing aerial footage, performing long-endurance flights, and carrying heavier payloads.

Key Features:

• Integrated Power Distribution Board (PDB): The built-in PCB in the center plates streamlines power wiring, minimizes points of failure, and creates a highly organized assembly.
• Hexacopter Configuration: The six-motor setup provides superior lifting capability and greater redundancy. For instance, the drone can maintain flight even if one motor fails.
• Durable Composite Arms: The lightweight, injection-molded composite arms offer excellent strength and flexibility, absorbing impact energy to protect internal components during hard landings.
• Large Mounting Area: The dual center plates give you generous space to mount flight controllers, GPS modules, telemetries, and camera gimbals.
• Optimized Motor Spacing: The design ensures optimal motor spacing for stable flight characteristics and efficient thrust generation.

Technical Specifications:

• Configuration Type: Hexacopter (6-Rotor)
• Diagonal Wheelbase (Motor-to-Motor): 550 mm (±5 mm)
• Frame Weight: ≈ 478 g (Ready to fly frame, without electronics)
• Recommended Propellers: 9 to 12 inch (e.g., 1045 or 9450)
• Recommended Battery: 3S to 4S LiPo (≈ 3000 mAh to 5200 mAh)
• Recommended ESCs: 20A to 40A Brushless ESCs
• Maximum Payload Capacity: ≥ 1.2 kg (Excluding battery and frame)

Mechanical Specifications:

• Center Plate Material: Fiberglass/Glass Fiber with Copper Traces (Integrated PDB)
• Arm Material: Glass Fiber Reinforced Nylon Composite
• Fasteners: High-strength steel screws and standoffs.
• Landing Gear: Not included (Requires external skids or legs, which builders often purchase separately).

Dimensions:

• Wheelbase: 550 mm
• Arm Length: ≈ 220 mm (Each)
• Center Plate Diameter: ≈ 190 mm
• Standoff Height: ≈ 28 mm (Provides separation between top and bottom plates)
• Arm Mounting Bolt Pattern: Standard 16 mm / 19 mm

Pinout and Wiring:

• Positive (+) Connections: The integrated PCB includes multiple large copper pads for direct soldering of the battery’s positive lead and the positive leads of all six ESCs.
• Negative (−) Connections: Similarly, the PCB provides corresponding negative pads for the battery’s negative lead and the negative leads of all six ESCs.
• Signal Wiring: You connect the ESC signal wires directly to the flight controller (not to the PDB). The PDB handles power distribution only.
• Motor Arm Colors: Builders typically use the red arms for the front (or positive rotation motors) and white arms for the rear, aiding orientation.

Datasheet Reference:

• Download DJI Flamewheel F550 Assembly Guide and Specifications

Commonly Used in:

• DIY Aerial Photography Platforms: Its large size and lift capability make it ideal for carrying entry-level DSLR or heavy mirrorless cameras.
• Mapping and Surveying: Provides a stable platform for mounting specialized sensors and creating orthomosaic maps.
• First Person View (FPV) Long-Range: Builders often configure it for long-duration flights where carrying a larger battery is necessary.

Applications:

• Professional Videography: Capturing smooth, high-altitude video footage where stability is paramount.
• Payload Delivery: Capable of lifting and transporting lightweight goods or equipment.
• Research and Development: Serving as a versatile and easily modifiable testbed for new flight controllers or sensor technologies.

Equivalent Models:

• Tarot 650 Sport: However, this is a slightly larger carbon fiber alternative offering similar redundancy but a folding design.
• S500 Quadcopter Frame: Conversely, this is a smaller, four-motor option for builders who require less lift and greater agility.
• Readytosky H650: A direct, functionally similar hexacopter frame often used interchangeably with the F550 by hobbyists.

Package Includes:

• 1 x F550 Hexacopter Top Center Plate with Integrated PDB
• 1 x F550 Hexacopter Bottom Center Plate with Integrated PDB
• 6 x F550 Composite Motor Arms (Typically 2 Red, 4 White/Black)
• 1 x Set of Screws and Standoffs for Assembly
