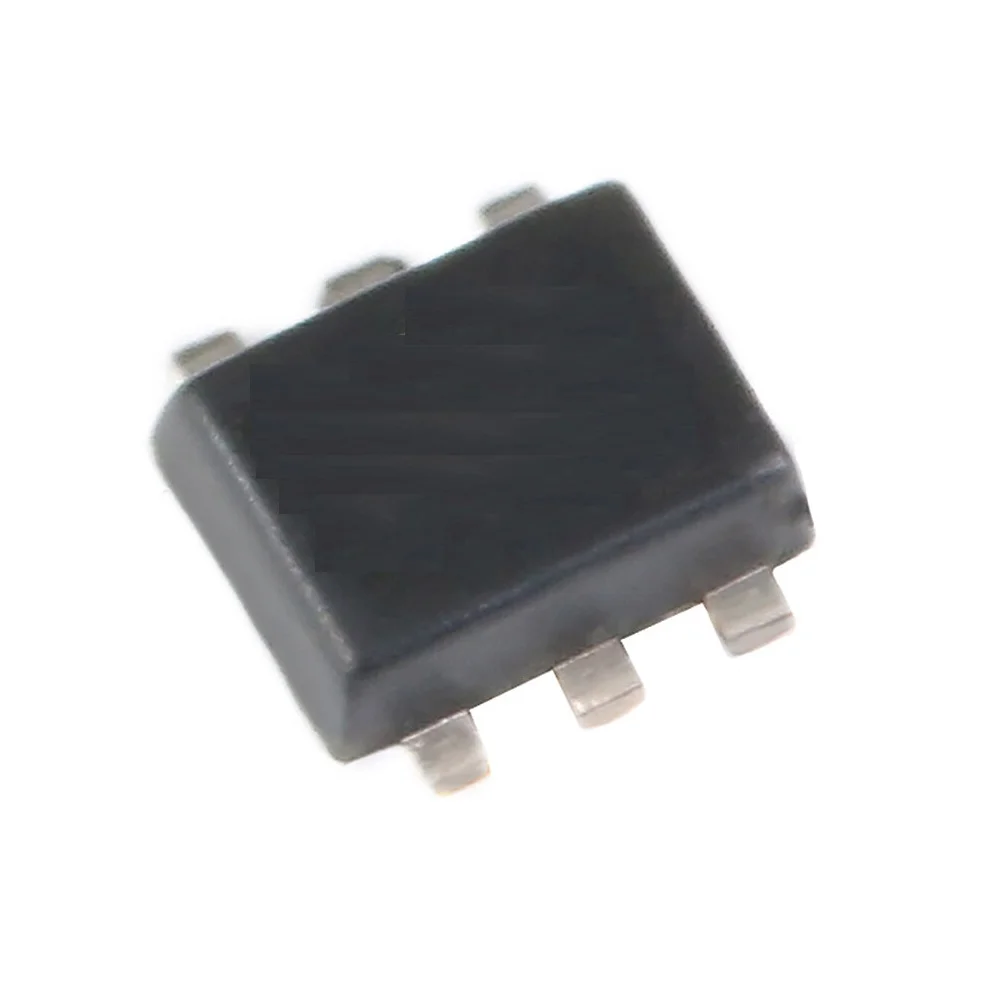

DRV8212DRLR H-Bridge Motor Driver SOT-563

DRV8212DRLR H-Bridge Motor Driver SOT-563 is a highly integrated, low-power integrated circuit designed specifically for controlling brushed DC motors and solenoid actuators in compact electronic applications. Operating over a wide voltage supply range of 1.65 V to 11 V, this low-voltage motor driver provides precise bidirectional control while drawing minimal quiescent current. Consequently, engineers frequently select this IC for battery-powered applications where board space and power efficiency remain critical design constraints. Furthermore, Texas Instruments engineered the driver with an N-channel power MOSFET H-bridge stage capable of delivering up to 4 A peak output current. Therefore, designers can easily interface low-voltage microcontrollers directly to high-current loads without requiring auxiliary discrete transistor circuitry.

Key Features:

• Wide Operating Voltage: Supports input supplies from 1.65 V up to 11 V, making it versatile for multi-cell alkaline or single-cell Li-ion battery designs.
• High Current Output: Delivers continuous driving current while safely delivering peak pulse currents up to 4 A.
• Ultra-Compact SOT-563 Package: Minimizes overall Printed Circuit Board footprint, which allows seamless integration into space-constrained wearable or portable gear.
• Integrated Protection Features: Incorporates robust internal protection mechanisms against undervoltage lockout, overcurrent events, and thermal shutdown.
• Low On-State Resistance: Features a remarkably low RDS(ON) value, consequently reducing heat dissipation and maximizing system battery lifespan.

Technical Specifications:

• Supply Voltage Range (VM): 1.65 V to 11 V
• Peak Output Current: 4 A
• Logic Level Inputs: 1.8 V, 3.3 V, and 5 V compatible
• MOSFET On-State Resistance (RDS(ON)): ≈ 280 mΩ (High-side + Low-side combined at 5 V)
• Control Interface: PWM / Phase-Enable or IN1/IN2 Direct Control mode
• Operating Junction Temperature: -40°C to ±150°C
• Quiescent Current: ≤ 80 nA in low-power sleep mode

Mechanical Specifications:

• Package Type: SOT-563 (DRL 6-pin surface-mount package)
• Pin Count: 6 pins
• Mounting Type: Surface Mount Technology (SMT / SMD)
• Lead Finish: Matte Tin (Sn) with high solderability

Dimensions:

• Body Length: 1.60 mm ±0.10 mm
• Body Width: 1.20 mm ±0.10 mm
• Body Height: 0.55 mm MAX
• Pin Pitch: 0.50 mm nominal

Pinout and Wiring:

• VM (Pin 1): Power supply input pin for driving the H-bridge load.
• GND (Pin 2): Common system ground connection.
• IN1 / PH (Pin 3): Logic input 1 for controlling motor direction and speed via PWM signaling.
• IN2 / EN (Pin 4): Logic input 2 for controlling bridge state or output enable operations.
• OUT1 (Pin 5): First H-bridge output terminal connected to the motor or load terminal.
• OUT2 (Pin 6): Second H-bridge output terminal connected to the opposing load terminal.
• Wiring Note: However, engineers must place a decoupling capacitor near the VM pin to suppress inductive switching voltage spikes.

Datasheet Reference:

• Download Texas Instruments DRV8212 Datasheet

Commonly Used in:

• Battery-Powered Personal Devices: Electronic toothbrushes, handheld facial massagers, and smart razors.
• Smart Home Automation: Motorized window blinds, electronic door locks, and battery-operated valves.
• Compact Robotics: Miniature mobile robot platforms and low-power actuator modules.

Applications:

• Solenoide Driving: Providing reliable pulsed power activation to latching relays and electromechanical solenoids.
• Brushed DC Motor Control: Regulating precise forward, reverse, brake, and coast states in micro gearmotors.
• Haptic Feedback Systems: Driving small eccentric rotating mass motors for tactile user notifications.

Equivalent Models:

• DRV8210DRLR: A pin-compatible alternative within the same TI family with modified input control options.
• DRV8837C: A popular alternative in a WSON package suitable for similar low-voltage motor driving tasks.
• MAX14870: A compact low-voltage single H-bridge driver offering comparable motor current ratings.

Package Includes:

• 1 x DRV8212DRLR H-Bridge Motor Driver SOT-563
