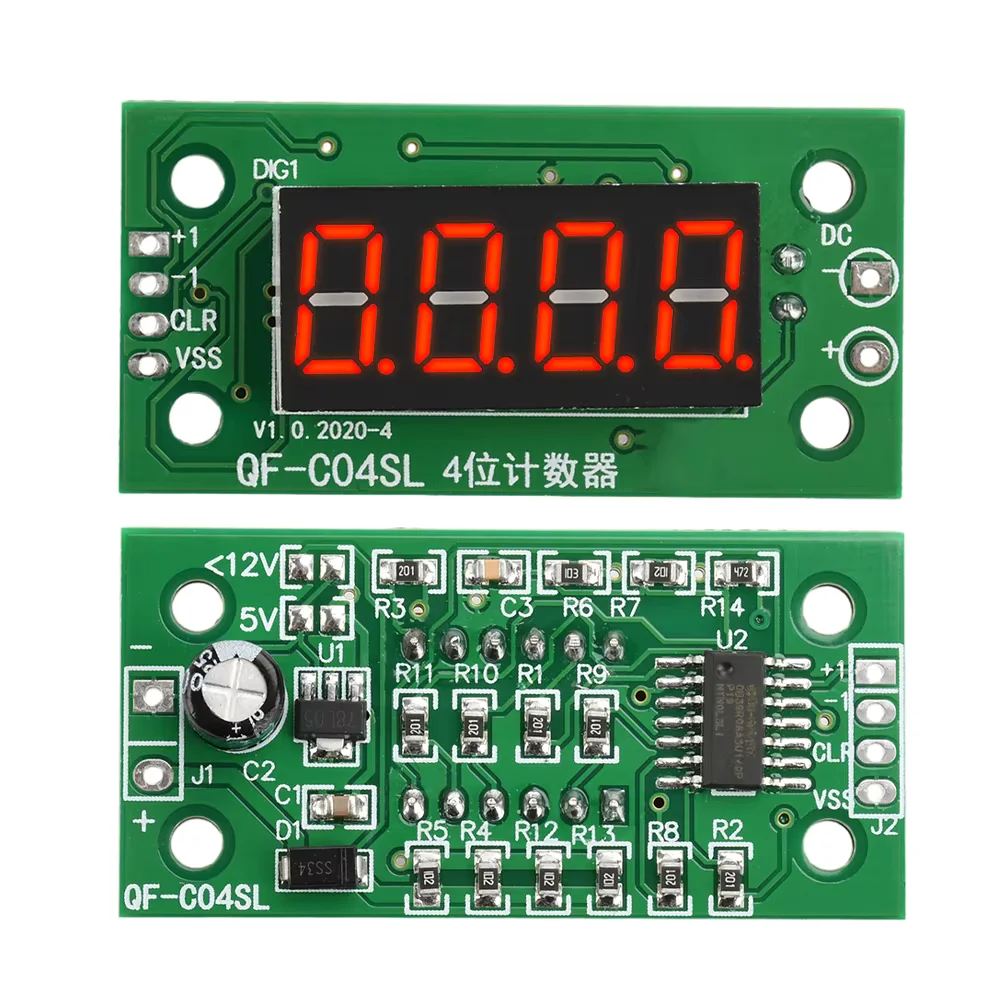

DC4-40V 0-9999 Electronic Digital Counter Module With Power Cut Memory Function

DC4-40V Digital Counter Module (0-9999) with Power Cut Memory is a robust and highly versatile electronic module designed for accurately counting pulses across a wide range of industrial and hobby applications. This device features a wide operating voltage range (DC 4-40V), ensuring compatibility with numerous power supplies and systems. Furthermore, its critical power-cut memory function guarantees the counter retains the last count value even after power loss, eliminating the need for manual resets or lost data. Consequently, this module delivers reliable, four-digit counting up to 9999, which engineers frequently integrate into production lines, monitoring equipment, and automated machinery where persistent data integrity is paramount.

Key Features:

• Power Cut Memory (Non-Volatile): The embedded memory chip automatically saves the current count value upon power failure and restores it upon power-up, ensuring data persistence.
• Wide Voltage Input: The module accepts a broad DC input voltage ranging from 4 V to 40 V, offering flexibility across various control system architectures.
• High Count Range: A bright, easy-to-read 4-digit LED display clearly presents the count from 0000 to 9999.
• Simple Push-Button Control: Dedicated on-board buttons allow users to easily reset the count to zero or pause/resume the counting function.
• Robust Design: Built with industrial-grade components, this counter delivers stable and reliable performance in demanding operating environments.

Technical Specifications:

• Operating Voltage (V_CC): DC 4 V – 40 V
• Count Range: 0 – 9999
• Input Pulse Signal: Low-level pulse trigger (Negative edge trigger recommended)
• Maximum Counting Frequency (f_max): Typically 20 Hz (Dependent on specific unit and wiring)
• Display Type: 4-Digit Red LED Segment Display
• Data Retention: Non-volatile memory retains data upon power loss.
• Operating Current: ≈ 35 mA (at 12V DC)

Mechanical Specifications:

• Module Material: FR-4 PCB with component mounting
• Display Color: Red
• Reset Function: Via on-board push button
• Pause Function: Via dedicated on-board push button

Dimensions:

• Module Length: ≈ 79 mm
• Module Width: ≈ 42 mm
• Module Height (Incl. display): ≈ 25 mm
• Mounting Holes: Four ≈ 3.0 mm diameter holes

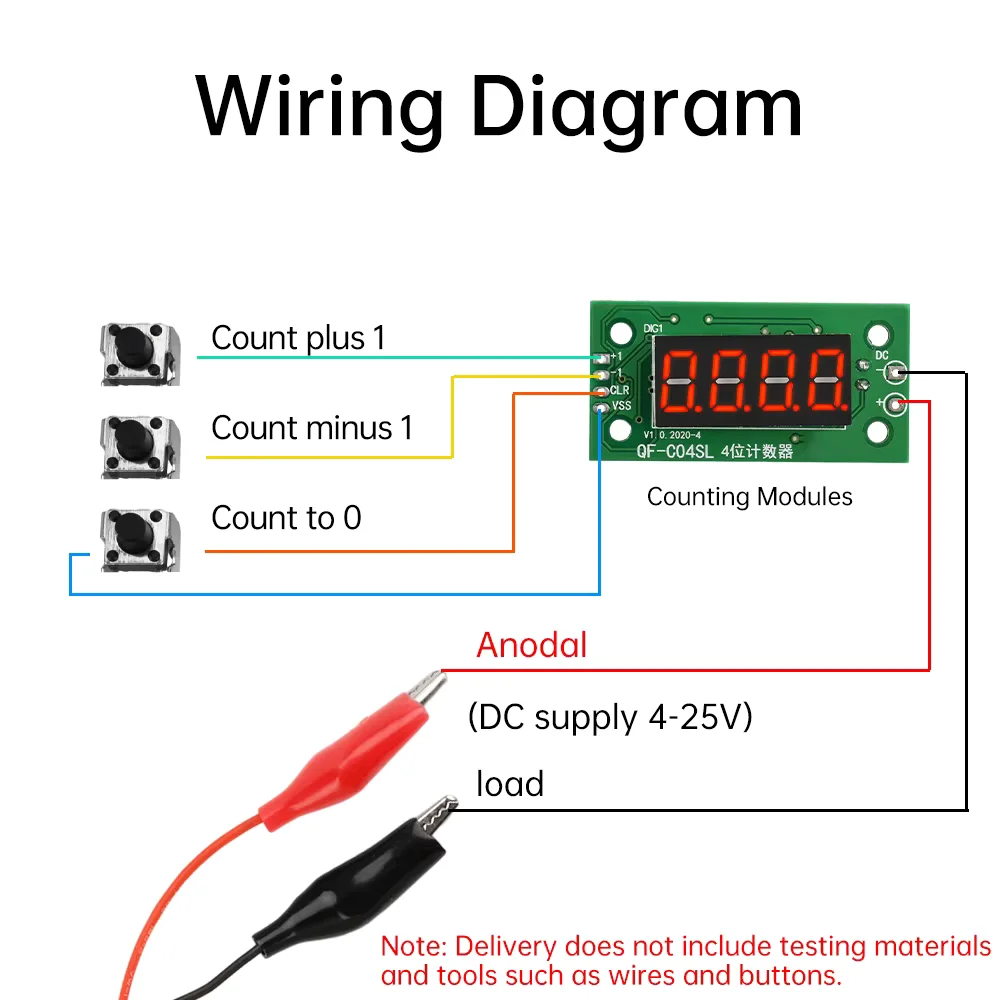

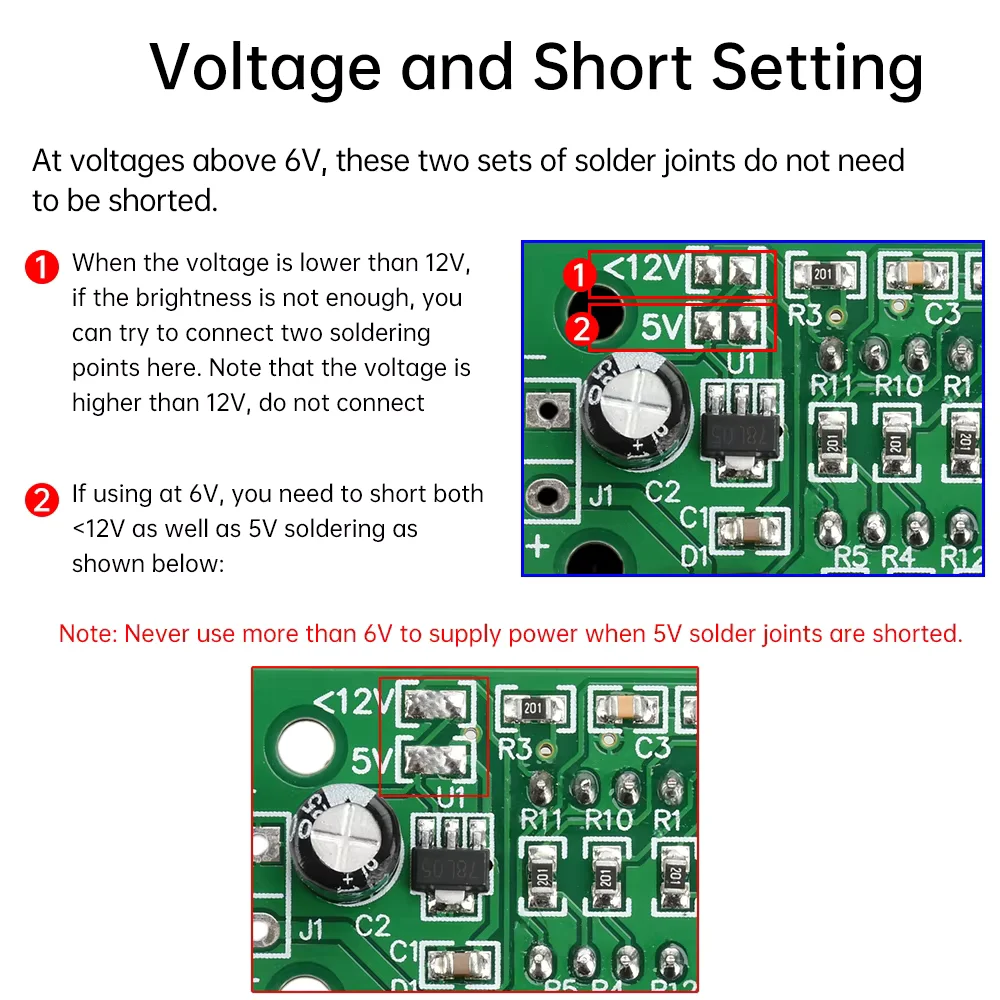

Pinout and Wiring:

• VCC (+): Connect the positive side of the DC power supply (4 V to 40 V).
• GND (−): Connect the negative side of the DC power supply (Ground).
• Input (Pulse Signal): Connect this terminal to the pulse source (e.g., limit switch, Hall sensor, proximity sensor). A low-level pulse triggers the count.
• Wiring Note: Always use shielded wire for the pulse input line, especially over long distances, to minimize noise interference, which otherwise could cause spurious counts.

Datasheet Reference:

• Download Generic Digital Counter Module Datasheet

Commonly Used in:

• Production Line Monitoring: Counting parts, products, or cycles on assembly lines.
• Testing Equipment: Acting as a cycle counter for durability and stress testing machines.
• Turnstile and Gate Counters: Accurately tracking entry and exit counts in controlled access areas.

Applications:

• Industrial Totalizing: Tracking cumulative usage or production units over extended periods, hence requiring the memory function.
• Coil Winding Machines: Counting the exact number of wire turns applied to a coil.
• Flow Meter Integration: Converting pulse signals from flow sensors into volumetric counts.
• DIY Project Timing: Creating custom digital readouts for speed or revolution counting (RPM) with external sensors.

Equivalent Models:

• JSK-001 / JSK-002: Commonly marketed generic digital counter modules with similar 4-digit displays and DC voltage inputs.
• DH48J Series: Functionally similar preset counters, however, they often come in panel-mount enclosures.

Package Includes:

• 1 x DC4-40V 0-9999 Electronic Digital Counter Module with Power Cut Memory
