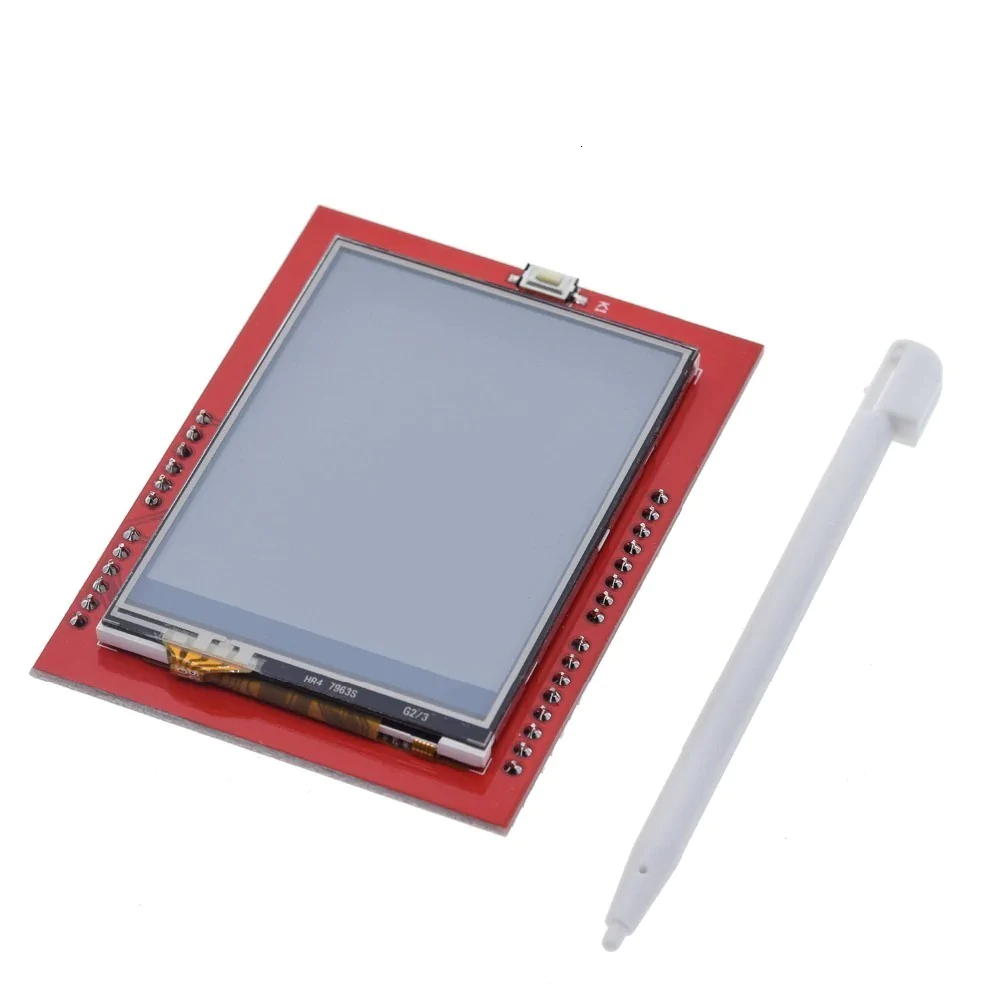

2.4 Inch Touch Screen TFT LCD Display Shield for Arduino UNO / Mega

₹515.00

In stock ?

In stock

SKU: IFT00069-03 Category: Brand:

2.4″ Inch Touch Screen TFT Display Shield for Arduino is a bright 240×320 pixel full-color liquid crystal display shield featuring a built-in 4-wire resistive touch panel and onboard micro SD card slot. Designed as a direct plug-in shield for Arduino UNO and Arduino Mega boards, it provides an intuitive graphical user interface (GUI) and local data logging platform without external jumper wires.

Key Features:
  • Vibrant Full-Color Display: 2.4-inch TFT LCD with 240×320 QVGA resolution and 65,536 (16-bit RGB) rich colors.
  • Integrated Resistive Touchscreen: 4-wire resistive touch interface enables responsive stylus and fingertip navigation.
  • Built-in Micro SD Socket: Onboard micro SD / TF card slot for storing bitmaps, fonts, and sensor logging records.
  • Direct Plug-in Shield: Standard Arduino UNO header layout allows direct stacking without external breadboards or flying leads.
  • Onboard Voltage Level Translators: Integrated LVC245 buffer ICs ensure safe logic compatibility with 5V Arduino microcontrollers.
  • Software Library Compatibility: Supported by standard Adafruit_GFX, MCUFRIEND_kbv, and SPFD5408 Arduino libraries.
Technical Specifications:
  • Screen Size: 2.4 inches diagonal
  • Active Display Resolution: 240 × 320 pixels
  • Display Controller: ILI9341 / SPFD5408 or compatible high-speed LCD controller IC
  • Touch Panel Type: 4-wire resistive analog touch screen
  • Interface: 8-bit parallel digital interface for high refresh rates
  • Operating Voltage: 5V DC (derived from Arduino 5V and 3.3V power rails)
  • Logic Level: 5V / 3.3V compatible via onboard level shifting buffers
  • Backlight Type: Bright white LED backlight with low power consumption
Mechanical Specifications:
  • Form Factor: Arduino UNO R3 footprint
  • PCB Construction: High-quality double-sided FR4 glass epoxy board
  • Header Type: 0.1-inch (2.54mm) pitch standard male header pins
  • Reset Mechanism: Onboard right-angle reset button routing to Arduino master reset
  • Weight: Approximately 32 g
Dimensions:
  • Overall Length: 72.0 mm
  • Overall Width: 52.5 mm
  • Overall Height: 12.0 mm
Pinout and Wiring:
  • LCD Data Lines (D0–D7): Routed to Arduino digital pins D8, D9, D2, D3, D4, D5, D6, D7
  • LCD Control Lines: CS (Chip Select) on A3, CD/RS (Command/Data) on A2, WR (Write) on A1, RD (Read) on A0, RST (Reset) on Reset
  • Touch Screen Pins: Shared with LCD control lines: X- on D8, X+ on A2, Y- on D9, Y+ on A1
  • Micro SD Interface: SPI communication using D10 (SS), D11 (MOSI), D12 (MISO), D13 (SCK)
  • Power Lines: 5V, 3.3V, and GND pins plugged directly into Arduino power header
Datasheet Reference:
  • Refer to the ILI9341 LCD controller datasheet and TFT Shield schematic for comprehensive command registers, timing diagrams, and initialization sequences.
Commonly Used in:
  • Interactive microcontroller control panels and human-machine interface (HMI) consoles
  • Portable handheld data loggers and smart instrumentation displays
  • Digital oscilloscope and signal generator user interfaces
  • Educational programming projects requiring graphical sensor feedback and touch buttons
Applications:
  • Smart home automation GUI dashboard
  • Digital weather station graphical display
  • Interactive touch menu for CNC and 3D printer controllers
  • Sensor telemetry graphing and real-time visualization
  • Handheld gaming consoles and educational STEM gadgets
Equivalent Models:
  • MCUFRIEND 2.4-inch TFT LCD Shield
  • SainSmart 2.4-inch TFT Touch Display Shield
  • Adafruit 2.4-inch TFT LCD with Touchscreen Breakout
  • Waveshare 2.4-inch Arduino Display Shield
Package Includes:
  • 1 × 2.4″ Inch Touch Screen TFT Display Shield for Arduino
Weight 70 g
