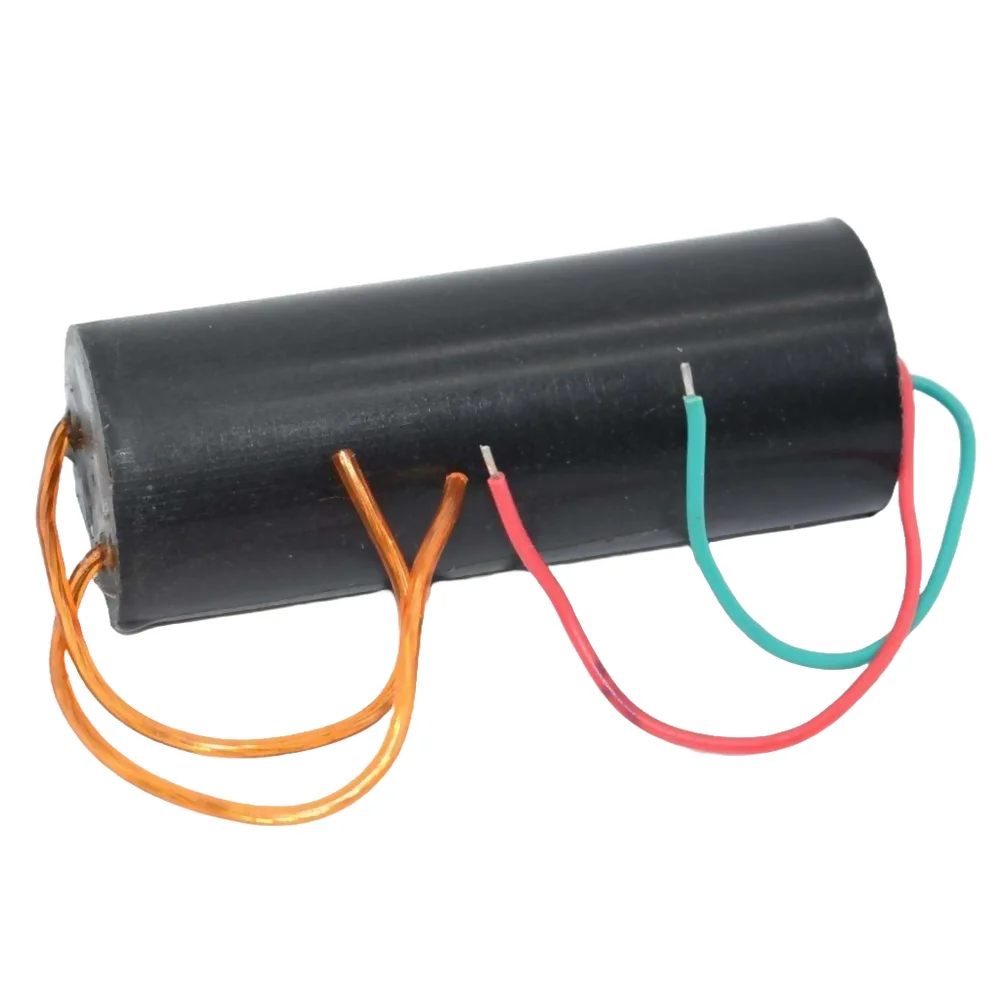

DC 3V-400KV Boost Step Up Power Module High Voltage Generator

DC 3V-400KV Boost Step Up Power Module is a compact high-voltage generator designed to output up to 400,000V from a low DC input of 3V to 6V. It is widely used in scientific experiments, high-voltage ignition, DIY electronics, ion generators, and arcs. This module delivers a high-voltage arc capable of lighting matches or performing discharge-based tasks for education and research purposes.

Key Features of DC 3V-400KV Boost Step Up Power Module:

• Ultra High Output Voltage: Generates up to 400,000 volts (open circuit).
• Low Input Voltage: Operates from just 3V to 6V DC input.
• Compact and Lightweight: Easy to integrate into DIY and portable projects.
• High Conversion Efficiency: Efficient boost conversion with strong discharge arc.
• Durable Build: Sealed in epoxy resin for insulation and stability.

Technical Specifications of DC 3V-400KV Boost Step Up Power Module:

• Input Voltage: DC 3V – 6V
• Input Current: 2A – 5A (depends on voltage)
• Output Voltage: Up to 400,000V (open circuit)
• Output Current: 0.5mA – 1mA (approx.)
• Arc Distance: Up to 5–10mm depending on power supply
• Operating Time: Max 5 minutes continuous, cool down required

Mechanical Specifications of DC 3V-400KV Boost Step Up Power Module:

• Module Length: Approx. 65mm
• Diameter: Approx. 24mm
• Wire Length: Approx. 100mm (input and output)
• Weight: Around 50g

Dimensions:

• Length: 65mm
• Diameter: 24mm
• Wire Length: 100mm

Mounting Options:

• Freeform Mount: Can be mounted with glue, tape, or zip ties in open projects.
• Housing Integration: Suitable for enclosures with insulation and airflow.

Schematic Diagram, Connection, Wiring and Pinout of DC 3V-400KV Module:

• Input: Red wire (+), black wire (−) for DC supply (3V–6V)
• Output: Thick red and black wires output high voltage; handle with care
• Pinout: 2-pin input, 2-wire output; ensure correct polarity

Datasheet of DC 3V-400KV Boost Step Up Power Module:

• Download DC 3V-400KV Module Datasheet (PDF)

Applications of DC 3V-400KV Boost Step Up Power Module:

• Scientific Experiments: For high-voltage demonstrations and ion research.
• Ignition Systems: Can be used for DIY spark igniters and lighters.
• Electrostatic Generators: Useful for ozone or ionic wind generation.
• Educational Projects: Helps explain boost circuits and discharge arcs.
• DIY Hobby Projects: Tesla coils, stun guns, or arc lighting setups.

Equivalent of DC 3V-400KV Boost Step Up Power Module:

• 3.7V-400KV Module: Similar high-voltage boost circuit for low voltage input
• 5V-400KV Generator: Accepts 5V directly for cleaner input control

Package Includes:

• 1 x DC 3V-400KV Boost Step Up Power Module
