DC 3-5V DIY Arc Igniter Lighter Kit

DC3-5V DIY Arc Igniter Lighter KitThis innovative DC3-5V DIY Arc Igniter Lighter Kit provides an engaging, hands-on electronic project that produces a high-voltage plasma electric arc. Furthermore, the circuit steps up a low DC voltage from a standard lithium battery to generate a hot, windproof spark, consequently serving as an effective flameless alternative to traditional lighters. Therefore, it is a popular choice for electronics hobbyists looking to learn about high-frequency transformer oscillation and pulse generation. However, users must handle the output terminals with extreme caution during operation to avoid painful high-voltage shocks. Specifically, the board features a compact layout designed for simple assembly and integration into custom handheld enclosures. Moreover, the integrated switching components ensure efficient energy conversion from the power source to the ignition coil. Ultimately, this kit offers a fascinating combination of practical utility and educational circuit design.

Key Features

• High-Voltage Plasma Arc: Generates a concentrated, high-temperature electric arc capable of igniting paper, candles, and thin materials instantly.
• Low Voltage Operation: Designed to run safely on a standard 3V to 5V DC power supply, such as a single 18650 lithium-ion cell.
• Windproof Design: Unlike traditional flame lighters, the electric plasma arc cannot be blown out by strong winds.
• Compact Form Factor: Features a small control PCB and a separate high-voltage booster block for flexible placement inside custom casings.
• Educational Assembly: Perfect for learning soldering, component identification, and basic high-voltage circuit principles.
• Integrated Switching: Includes an onboard trigger switch pad to control the arc activation safely.

Technical Specifications

• Input Voltage: 3V to 5V DC.
• Operating Current: ≈ 1.5A to 2A during continuous arc generation.
• Output Voltage: High-voltage pulse (Several kilovolts at low current).
• Arc Distance: Typically 3mm to 5mm optimal gap between electrodes.
• Operating Temperature Range: −10°C to +60°C.

Mechanical Specifications

• PCB Material: FR4 Green Solder Mask with optimized high-voltage trace separation.
• Transformer Type: Encapsulated high-frequency booster coil in a black protective housing.
• Electrodes: Dual flexible metal ignition wires with ceramic or insulated base mounts.
• Connection Type: Pre-wired transformer leads for straightforward soldering to the main board.

Dimensions

• Control Board Length: ≈ 45.0 mm.
• Control Board Width: ≈ 15.0 mm.
• Transformer Box Size: ≈ 20.0 mm × 18.0 mm × 10.0 mm.

Pinout and Wiring

• Power Input (3-5V): Connect the positive lead of your battery or power source to the designated VCC pad.
• Ground (GND): Connect the negative lead of your power source to the common ground pad.
• Switch Connection: Solder a momentary push button to the trigger pads to control when the arc fires.
• Arc Output Wires: The two long insulated wires lead directly from the high-voltage transformer; maintain proper spacing at the tips to ensure a strong spark.

Datasheet Reference: Download Datasheet

• • General High-Voltage Transformer and Switching Principles

Commonly Used in

• DIY Electronic Lighter Projects
• Science Fair Physics Demonstrations
• Survival Gear and Camping Gadgets
• Plasma Display and High-Voltage Experiments
• Custom USB Rechargeable Novelty Items

Applications

• Hobbyists assemble this kit to create custom rechargeable lighters for outdoor and everyday use.
• Educators use the circuit to demonstrate high-voltage step-up principles in physics and electronics classes.
• Consequently, it serves as a core component for windproof ignition systems in specialty camping equipment.
• Furthermore, makers integrate the module into novelty enclosure designs using 3D-printed cases.
• Ultimately, it provides an accessible entry point into high-voltage electronics construction safely.

Equivalent Models

• High Voltage Generator 400kV Module: A larger, more powerful standalone boost module.
• ZVS Induction Heater Board: An alternative high-power high-frequency circuit board.
• Piezo Spark Igniter: A mechanical, non-electronic ignition alternative.

Package Includes

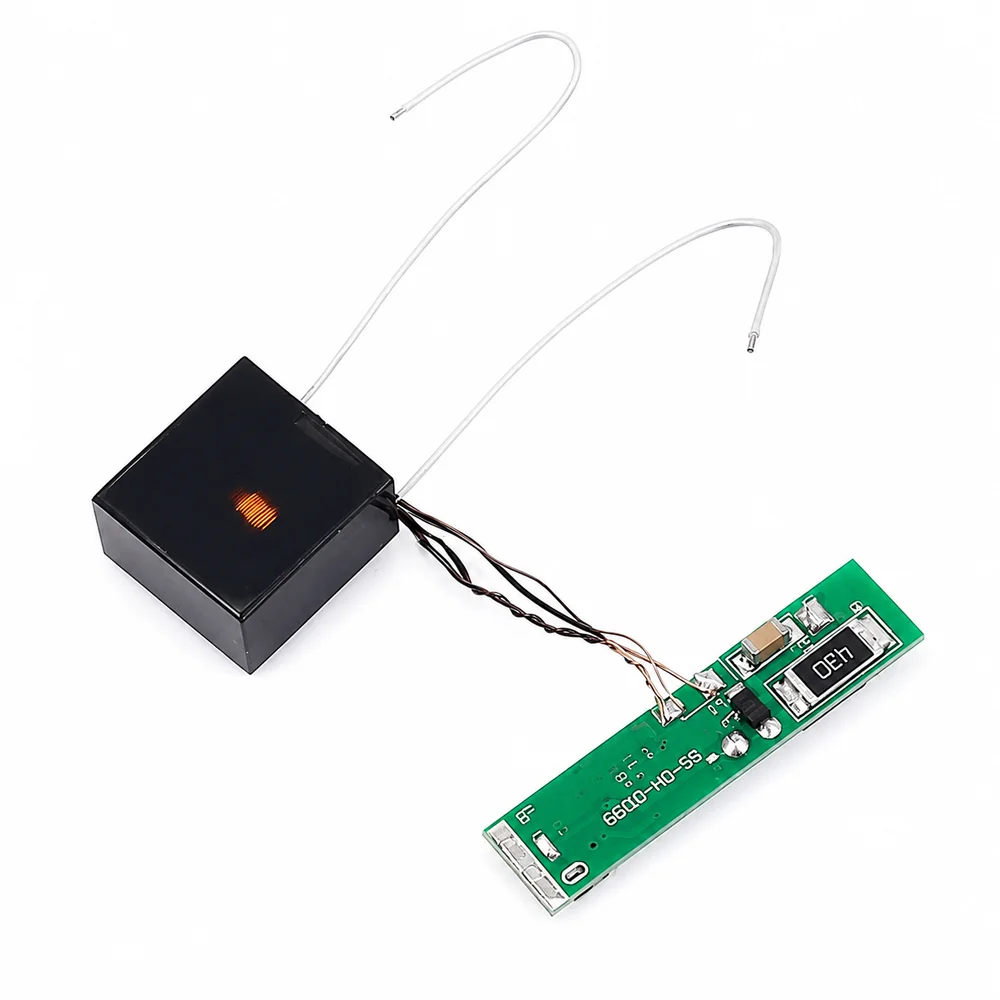

• 1 x Main Control Circuit Board
• 1 x High-Frequency Booster Transformer Block with Ignition Wires
• 1 x Push Button Switch Component
