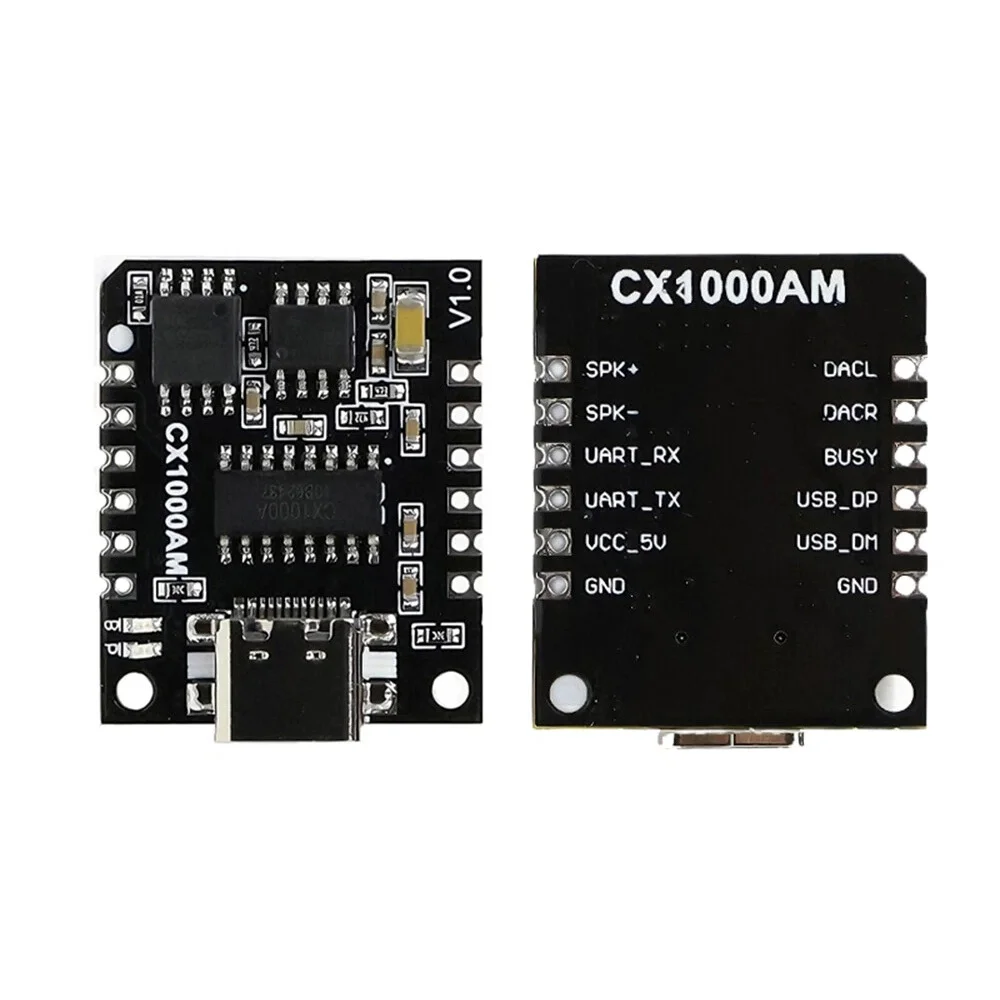

CX1000AM 3.3-5.2VDC Serial Port Control Voice Playback Module

CX1000AM 3.3-5.2VDC Serial Port Control Voice Playback Module is a compact and versatile solution for adding high-quality, pre-recorded audio playback to any embedded project or commercial product. This module simplifies complex audio management by offering easy control via a standard UART serial interface, allowing a low-cost microcontroller (MCU) to trigger specific voice files or sequences using simple commands. Consequently, the CX1000AM dramatically reduces the MCU’s workload since it handles all audio decoding and file management internally. Furthermore, its wide operating voltage range (3.3V to 5.2V) guarantees compatibility with most common logic levels and power architectures. This design makes the CX1000AM an ideal choice for interactive devices, alarms, and informational prompts where reliable, crystal-clear voice output is essential.

Key Features:

• UART Serial Control: Allows simple, two-wire (RX/TX) communication for triggering playback, adjusting volume, and querying status, requiring minimal host controller resources.
• Wide Voltage Range: Operates efficiently between 3.3 V_DC and 5.2 V_DC, seamlessly integrating into both 3.3V and 5V systems without requiring level shifters.
• Integrated Storage: Features on-board Flash memory (or support for external storage like SD/TF cards) for storing numerous voice files, greatly simplifying system design.
• High-Quality Decoding: Supports common audio formats like WAV, MP3, or specific ADPCM formats, ensuring clear and intelligible voice output.
• Direct Speaker Drive: Often includes a built-in power amplifier, capable of driving small loudspeakers directly, eliminating the need for an external audio amplifier circuit.

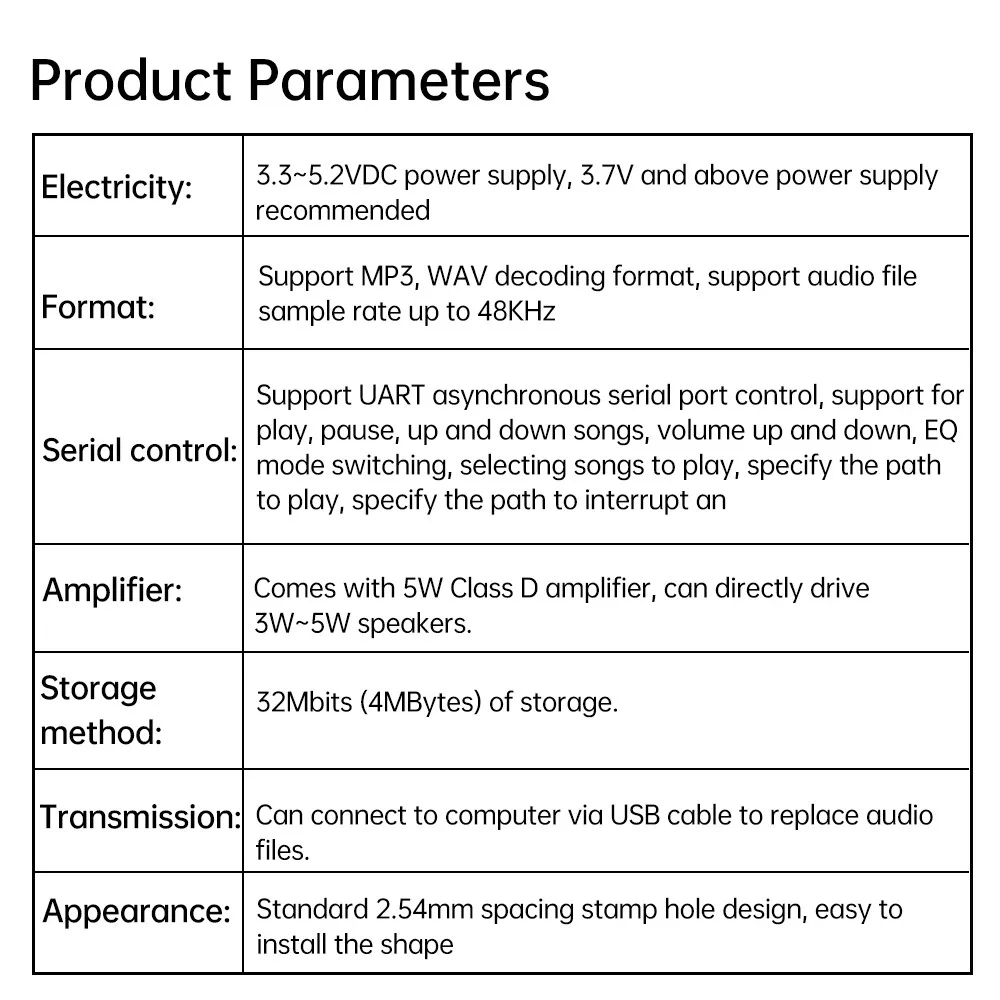

Technical Specifications:

• Operating Voltage (V_CC): 3.3 V_DC − 5.2 V_DC
• Control Interface: UART (Asynchronous Serial Port)
• Baud Rate: Typically 9600 bps or 115200 bps (Configurable)
• Audio Output: PWM/DAC output, often with an integrated Class D or Class AB amplifier.
• Output Power: Typically 0.5 W to 3 W @ 4 Ω or 8 Ω loads (Varies by specific version)
• Storage Capacity: Varies by module, often supporting 2 MB to 16 MB internal Flash, or external card support.
• Quiescent Current: Low power standby mode typically < 10 μA.

Mechanical Specifications:

• IC Core: CX1000AM Series Controller Chip
• Package Type: Compact PCB Module
• Mounting: Pin Headers (2.54 mm pitch) for easy connection or integration into a host PCB.
• Connectors: Pin headers for power/data and often a screw terminal or dedicated header for speaker output.

Dimensions:

• Board Length: ≈ 25 mm
• Board Width: ≈ 15 mm
• Board Height: ≈ 8 mm (Including components)
• Pin Pitch: 2.54 mm (Standard)
• Weight: ≈ 2 g (Ultra-lightweight)

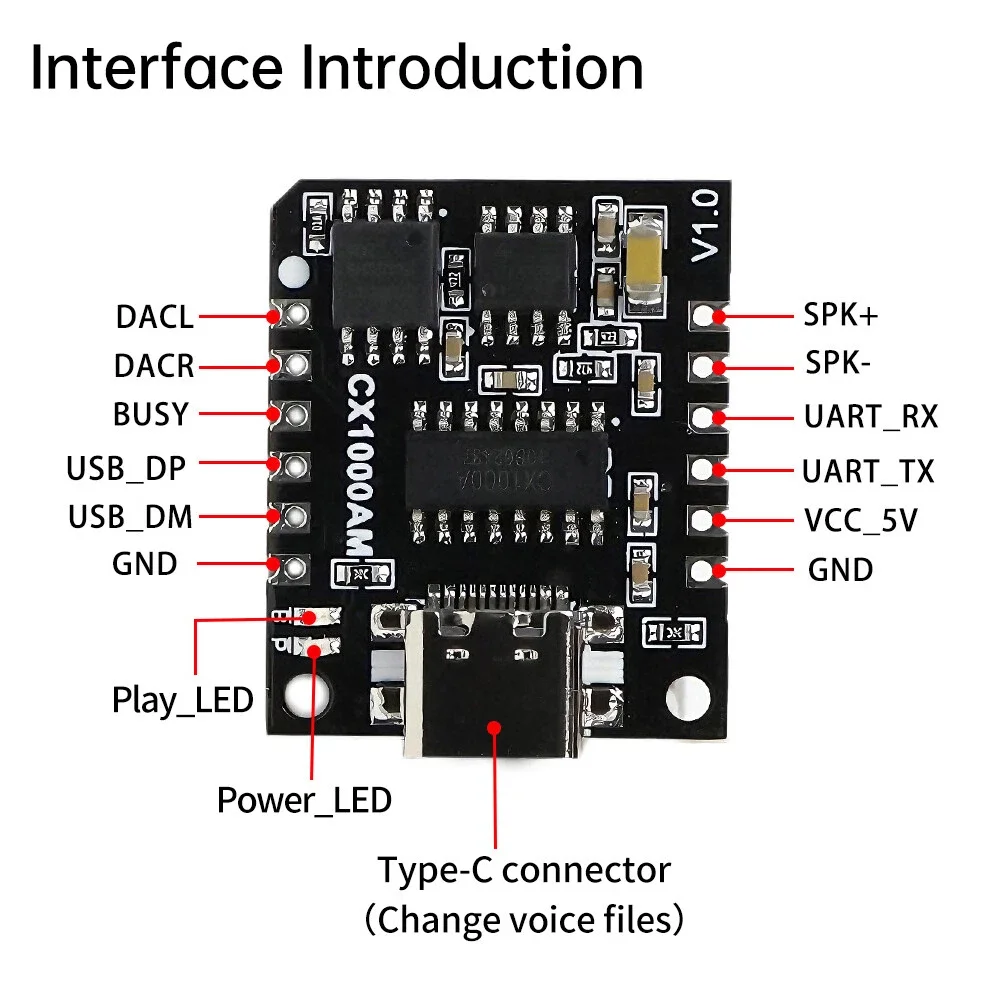

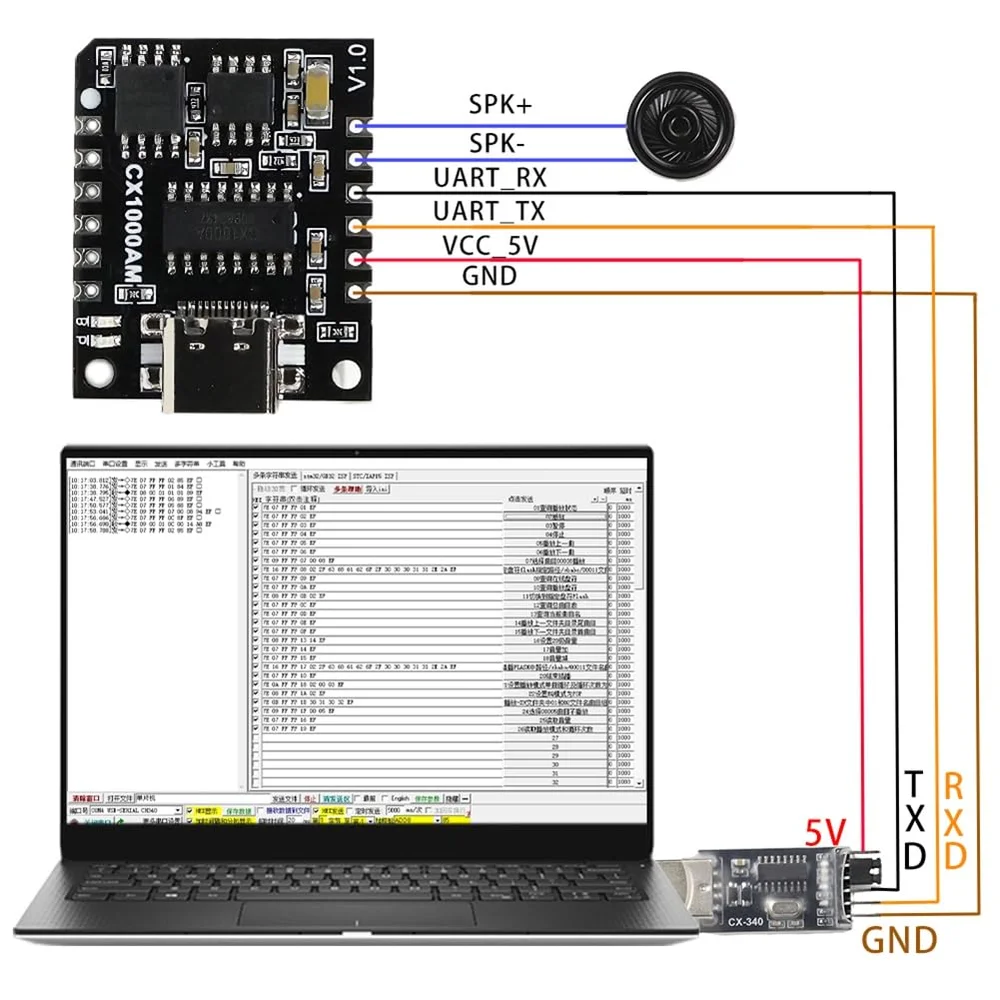

Pinout and Wiring:

• VCC: Connect to the 3.3V to 5.2V DC power supply.
• GND: Connect to the circuit ground reference.
• RX (Receive): Connect to the TX (Transmit) pin of the host microcontroller (MCU). The MCU uses this pin to send commands to the CX1000AM.
• TX (Transmit): Connect to the RX (Receive) pin of the host microcontroller (MCU). The CX1000AM uses this pin to send status or feedback back to the MCU.
• SPK+/SPK−: Connect these pins directly to the positive and negative terminals of a small speaker (e.g., 8 Ω, 1W).
• Wiring Note: Ensure the RX/TX connections are cross-wired (MCU TX to Module RX, MCU RX to Module TX) and that power lines are stable to avoid noise in the audio output.

Datasheet Reference:

• Download CX1000AM Voice Playback Module Datasheet

Commonly Used in:

• Interactive Toys and Games: Providing spoken prompts, character voices, and sound effects.
• Safety Alarms and Warning Systems: Delivering clear, pre-recorded voice alerts instead of simple buzzer tones.
• Home Appliances: Used in smart rice cookers, washing machines, and vending machines for status feedback.

Applications:

• Public Information Kiosks: Playing instruction sets or directions upon user interaction.
• Medical Devices: Generating audible status reports or reminders for patients or caregivers.
• Bus Annunciators and Automotive Electronics: Creating automatic travel or safety announcements.
• DIY Robotics: Adding verbal communication capabilities to custom robotic builds.

Equivalent Models:

• WT588D: A common alternative voice module that often uses a proprietary protocol for control, however, it may require custom software tools for voice file burning.
• YX5300 (MP3 Decoder Module): While focused on MP3, this module also offers serial control, but it requires external amplification and may lack the specialized voice sequencing of the CX1000AM.
• SYN6288: A text-to-speech (TTS) synthesis module which is functionally similar in its goal (voice output) but uses a different mechanism.

Package Includes:

• 1 x CX1000AM Serial Port Control Voice Playback Module
