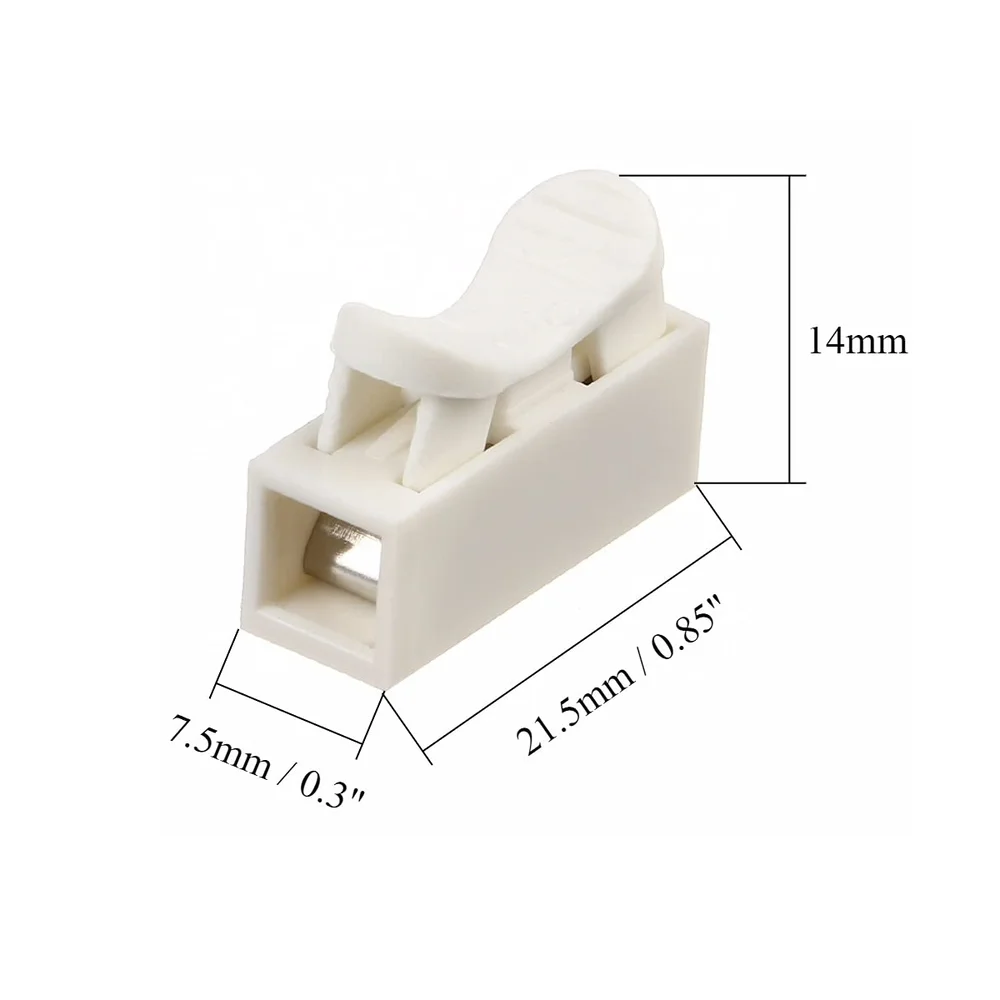

CH-1 Quick Connector Cable Clamp Terminal Block

This is the Quick connector does not need any tool to connect the wire. It is a self-locking type connector. This has a natural spring-loaded wire clamp. This quick connector is a strong, durable, versatile, Modern, and time-saving design. Push Release, Pressure Opening Type Compression Lock, 2 Way Dual Direction Entry Level Connection Pins Inserts.

• •  Material: ABS Plastic
  • Rated Voltage & Current: 50V, 6A
  • Colour: White
  • Wiring Capacity: Wiring capacity from 0.5-2.5 square wire
  • Temperature: -40 to 150 °C

Three steps to finish wire connecting without screws and soldering:

1. 1. Press the spring clip
   2. Insert wires (please correctly connect + and -)
   3. Release the clip

Applications:

• • Lighting, power, and automotive wiring.
  • Suitable for motor
  • Electrical control
  • Power, household appliances
  • Lighting, machinery, and wire joints.

Package Includes:

• • 1 X CH-1 Spring Quick Wire Connector Cable Clamp Terminal Block Connector
