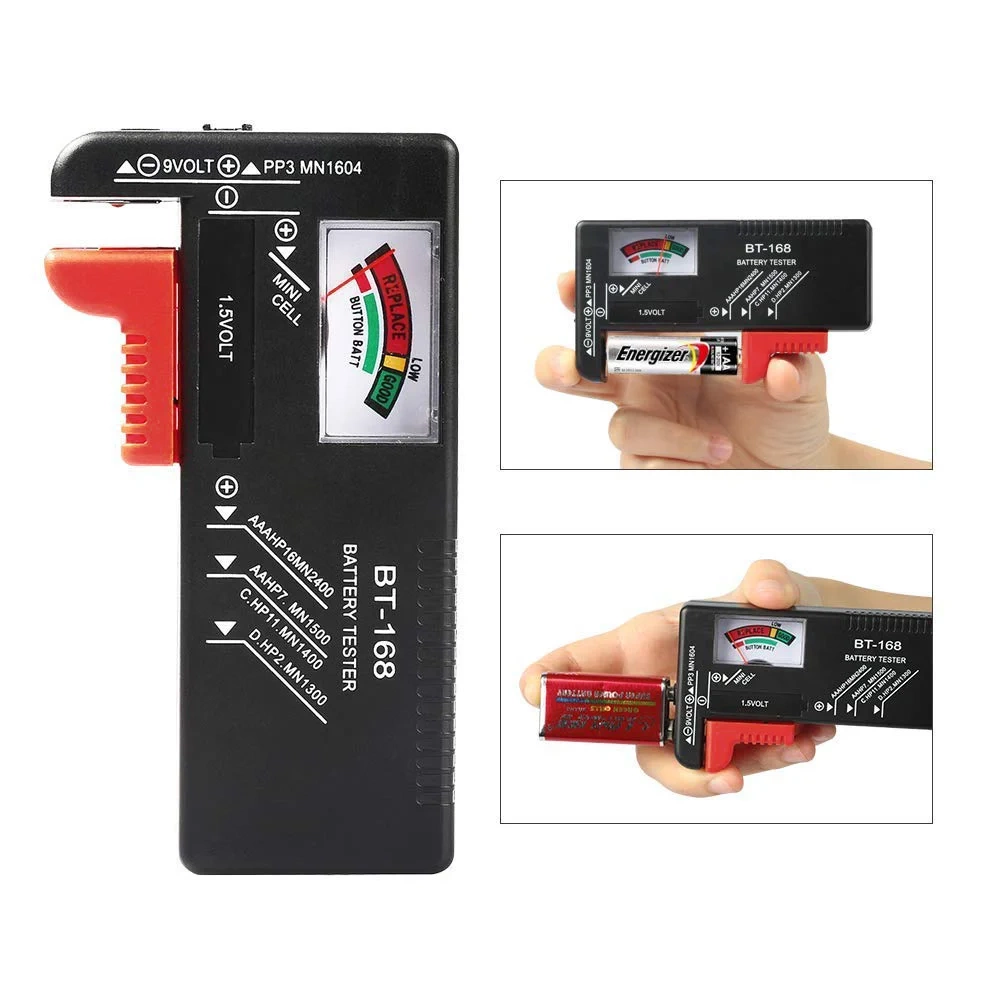

BT-168 Analog Universal Battery Health Checker

BT-168 Analog Universal Battery Health Checker offers an indispensable, straightforward method for quickly determining the charge status of virtually any standard household battery. This tool requires no internal power; instead, the battery under test directly powers the integrated galvanometer, resulting in reliable operation without complexity. Furthermore, its analog meter displays results clearly across a color-coded scale, simplifying battery sorting and replacement decisions. Consequently, homeowners, hobbyists, and technicians use the BT-168 to rapidly assess battery health and prevent component damage from leaked or severely depleted power cells.

Key Features:

• Universal Compatibility: Easily tests a wide range of common household batteries, including AA, AAA, C, D, 9V, and various button cells, making it a versatile tool.
• Analog Display Meter: Features a clear, color-coded analog needle display that instantly classifies the battery state into three zones: Good (Green), Low Power (Yellow), and Replace/Recharge (Red).
• No Internal Power Required: The device operates entirely using the residual voltage of the battery under test, meaning you never need to replace its internal batteries.
• Adjustable Terminal: Incorporates a sliding arm on the positive terminal, which quickly accommodates batteries of different physical sizes.
• Compact and Portable: The small, lightweight design allows you to conveniently carry and store the checker in a toolbox, drawer, or lab coat pocket.

Technical Specifications:

• Testable Voltage Range: 1.5 V to 9 V (Standard tests); 1.2 V minimum (for certain rechargeables).
• Supported Battery Types: Standard 1.5 V (AA, AAA, C, D, N), 9 V (6F22), and smaller 1.5 V button/coin cells.
• Display Type: Analog Galvanometer with Needle Pointer
• Measurement Principle: Measures battery open-circuit voltage under a small, internal load.
• Accuracy: ±0.2 V (Approximate measurement based on color zones).

Mechanical Specifications:

• Body Material: Durable ABS Plastic
• Display Size: ≈ 30 mm x 20 mm
• Contact Terminals: Stainless Steel and Copper Alloy
• Slider Mechanism: Spring-loaded, adjustable positive terminal for secure contact.

Dimensions:

• Body Length: ≈ 110 mm
• Body Width: ≈ 60 mm
• Body Thickness: ≈ 25 mm
• Weight: ≈ 50 g (Extremely lightweight)

Pinout and Wiring:

• Positive Contact (Top Slider): Position the positive terminal of the battery against the adjustable red slider at the top.
• Negative Contact (Bottom Slot): Place the negative terminal of the battery against the fixed contact slot at the base of the checker.
• 9V Terminals: Attach the 9 V battery contacts directly to the snap terminals located on the side of the unit.
• Connection Note: The checker immediately draws power and displays the reading upon connecting the battery, as it requires no turn-on switch.

Datasheet Reference:

• Download BT-168 Battery Tester Instruction Guide

Commonly Used in:

• Household Maintenance: Quickly checking batteries for remote controls, clocks, and smoke detectors.
• Hobby Electronics: Assessing the state of disposable batteries before using them in DIY projects or prototypes.
• Retail and Storage: Sorting new and old battery stock to ensure only fresh cells are used or sold.

Applications:

• Quick Voltage Check: Provides an immediate, visual indication of battery potential without needing a digital multimeter.
• Battery Sorting: Helps users identify which batteries are viable (“Good”) and which require immediate disposal or recharging (“Replace/Recharge”).
• Inventory Management: Technicians often use it to verify the charge status of large quantities of stored batteries.

Equivalent Models:

• BT-168D (Digital Version): A similar model that however, provides a precise numerical LCD reading instead of an analog needle.
• C. Crane CC-3: Another simple, analog battery tester with slightly different battery type support, often used for comparison.
• ZTS Pulse Load Tester: Although much more complex, this professional device tests battery health under load, therefore, offering a more thorough, albeit costly, assessment.

Package Includes:

• 1 x BT-168 Analog Universal Battery Health Checker
