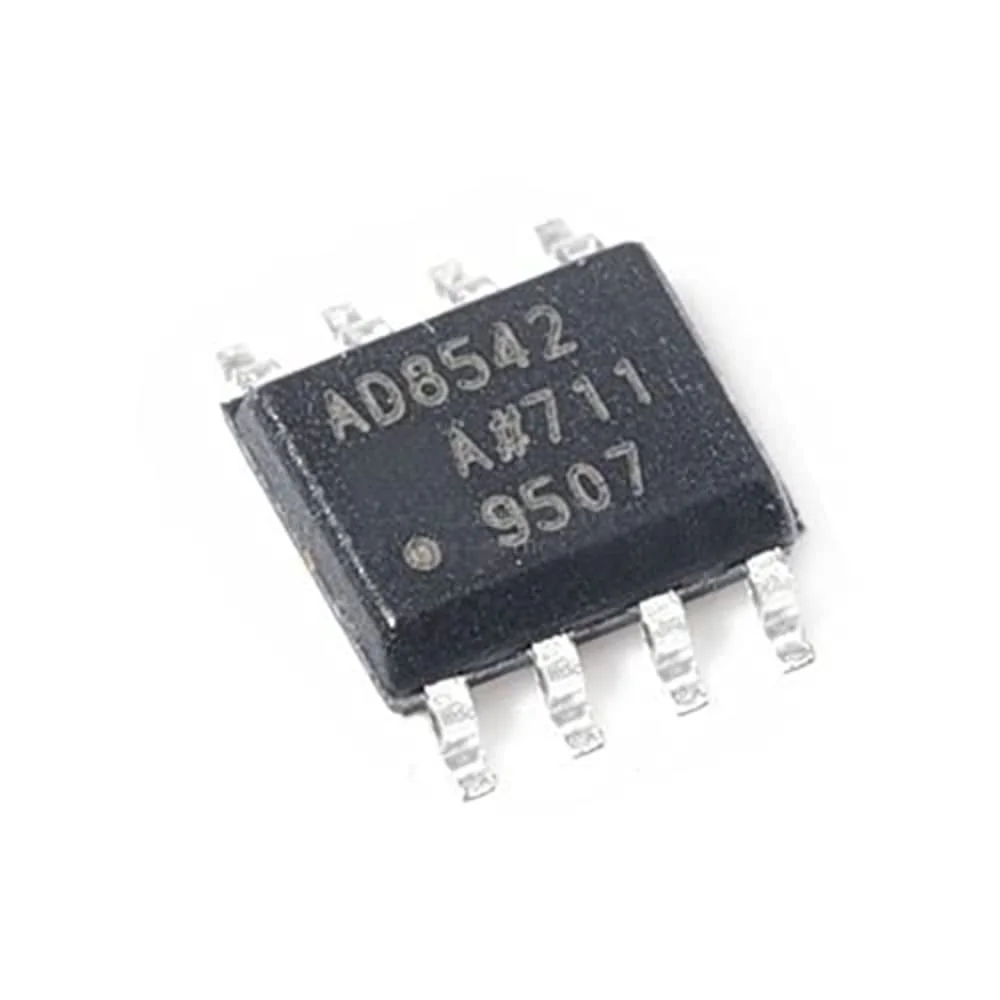

AD8542ARZ-REEL7 Dual Rail-to-Rail 1MHz CMOS Op-Amp IC SOP-8

AD8542ARZ-REEL7 Dual Rail-to-Rail 1MHz CMOS Op-Amp IC SOP-8 provides a high-performance solution for low-power, general-purpose applications that require rail-to-rail input and output capabilities. This dual operational amplifier operates efficiently on a single supply ranging from 2.7 V to 5.5 V, making it ideal for battery-powered systems. Furthermore, the CMOS technology ensures exceptionally low input bias currents, which minimizes errors in high-impedance sensor interfaces. Consequently, engineers often select the AD8542 for portable medical devices and consumer electronics where power efficiency is a primary concern. Therefore, you can rely on this robust IC to deliver stable analog performance while significantly extending the operational life of your portable designs.

Key Features:

• Rail-to-Rail Input and Output: This feature allows the signal to swing very close to both the positive and negative supply rails, maximizing the dynamic range of your circuit.
• Low Power Consumption: The IC draws only 45 μA of supply current per amplifier, significantly reducing the overall energy footprint of the system.
• High Input Impedance: Utilizing a CMOS process, the device exhibits negligible input bias current, which is essential for precision buffering.
• Wide Supply Range: It operates reliably from a single supply as low as 2.7 V, though it remains compatible with standard 5 V logic systems.
• No Phase Reversal: The internal design prevents output phase reversal even when the input voltage exceeds the supply rails slightly.

Technical Specifications:

• Number of Channels: 2 (Dual Op-Amp)
• Gain Bandwidth Product (GBP): 1 MHz
• Slew Rate: 0.4 V/μs
• Supply Voltage Range: 2.7 V to 5.5 V
• Input Bias Current: 4 pA (Typical)
• Input Offset Voltage: 1 mV (Typical)
• Output Current per Channel: 30 mA
• Operating Temperature Range: −40°C to +125°C

Mechanical Specifications:

• Package Type: SOP-8 (Small Outline Package)
• Mounting Style: Surface Mount Device (SMD/SMT)
• Lead Finish: Matte Tin (RoHS Compliant)
• Encapsulation: Plastic molded epoxy

Dimensions:

• Body Length: ≈ 4.90 mm
• Body Width (excluding leads): ≈ 3.90 mm
• Body Width (including leads): ≈ 6.00 mm
• Height: ≈ 1.50 mm
• Lead Pitch: 1.27 mm (Standard SOP-8)

Pinout and Wiring:

• Pin 1 (OUTPUT A): Output of the first operational amplifier.
• Pin 2 (INPUT A−): Inverting input of the first operational amplifier.
• Pin 3 (INPUT A+): Non-inverting input of the first operational amplifier.
• Pin 4 (V−): Negative power supply terminal or ground for single-supply use.
• Pin 5 (INPUT B+): Non-inverting input of the second operational amplifier.
• Pin 6 (INPUT B−): Inverting input of the second operational amplifier.
• Pin 7 (OUTPUT B): Output of the second operational amplifier.
• Pin 8 (V+): Positive power supply terminal (2.7 V to 5.5 V).

Datasheet Reference:

• Download Analog Devices AD8542 Datasheet

Commonly Used in:

• Battery Monitors: High-precision voltage sensing in portable power management units.
• Active Filters: Creating low-pass or high-pass filters for audio and sensor signal processing.
• Sensor Buffers: Providing high-impedance interfaces for photodiode or piezoelectric sensors.

Applications:

• ASIC Input or Output Amplifiers: Conditioning signals before they enter or leave a main digital processor.
• Portable Audio Equipment: Enhancing signals in low-voltage headphone or microphone circuits.
• Photodiode Amplification: Converting tiny currents from light sensors into usable voltage levels.
• Medical Instrumentation: Facilitating reliable signal acquisition in wearable health monitors.

Equivalent Models:

• MCP602 (Microchip): A functionally similar dual CMOS op-amp with rail-to-rail performance.
• LMV358 (TI): A popular low-voltage dual op-amp alternative, however, check specific noise ratings for precision tasks.
• TLV272 (TI): Another high-performance CMOS dual operational amplifier that offers a comparable frequency response.

Package Includes:

• 1 x AD8542ARZ-REEL7 Dual Rail-to-Rail 1MHz CMOS Op-Amp IC SOP-8
