6 Pin 16A 250V DPDT Momentary Spring Action Rocker Switch

Rocker Switch Big 6 Pin 16A 250V DPDT Momentary Spring Action is a robust electrical component that facilitates precise control over high-current circuits by utilizing a spring-loaded momentary mechanism, consequently ensuring that the switch returns to its neutral center position immediately after release. Furthermore, the Double Pole Double Throw (DPDT) configuration allows users to control two separate circuits simultaneously or manage the polarity of a single DC motor for directional movement. Its high 16A current rating provides ample overhead for demanding power loads, therefore preventing premature component failure under extreme operational stress. The flame-retardant housing ensures long-term safety in industrial environments, however, technicians should always verify the specific wiring diagram to avoid short circuits.

Key Features:

• High Capacity Rating: Supports heavy electrical loads up to 16A at 250V AC, therefore accommodating powerful industrial motors and heating elements.
• Momentary Spring Return: Features an internal spring mechanism that automatically returns the actuator to the off position upon release.
• DPDT Architecture: Provides six terminals to control two independent poles, consequently enabling complex switching tasks like motor polarity reversal.
• Industrial Durability: Utilizes high-impact, heat-resistant polymers to maintain structural integrity in harsh operating environments.

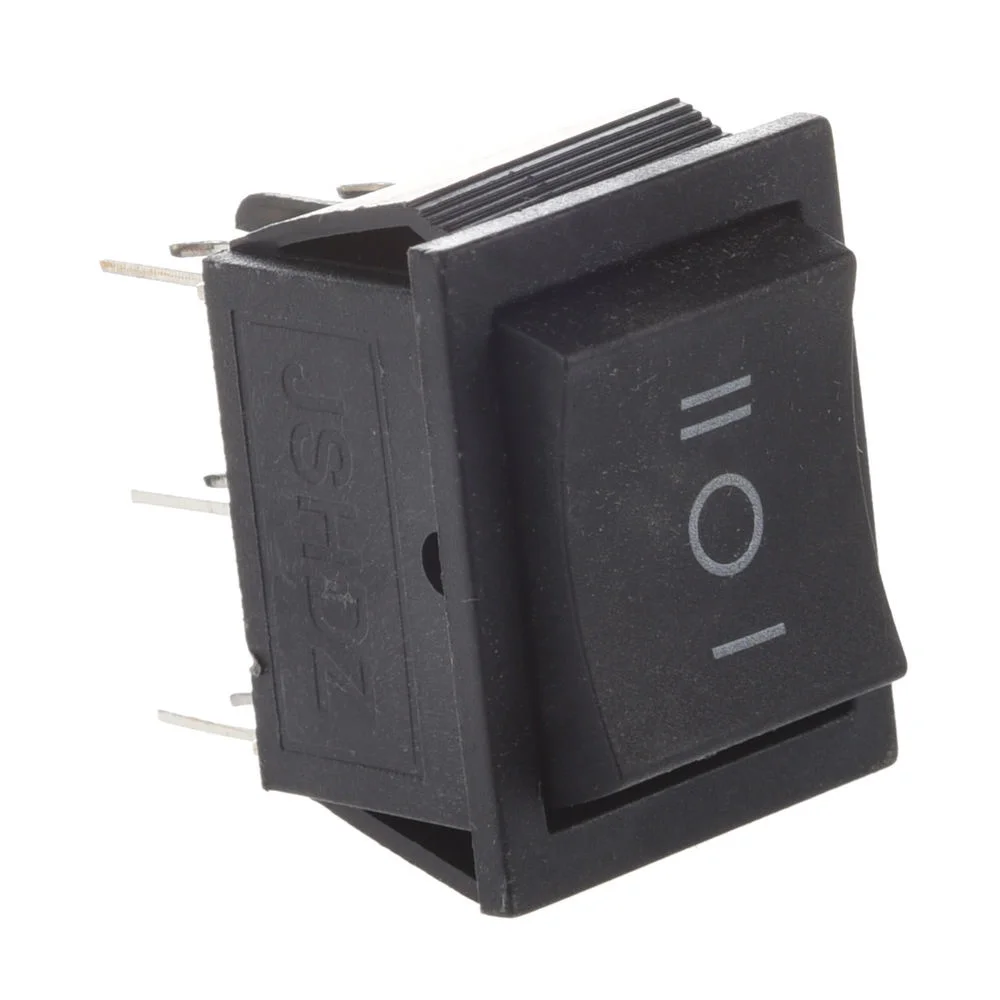

• Clear Operational Symbols: Features laser-etched arrows for directional control and a center circle to indicate the neutral state.

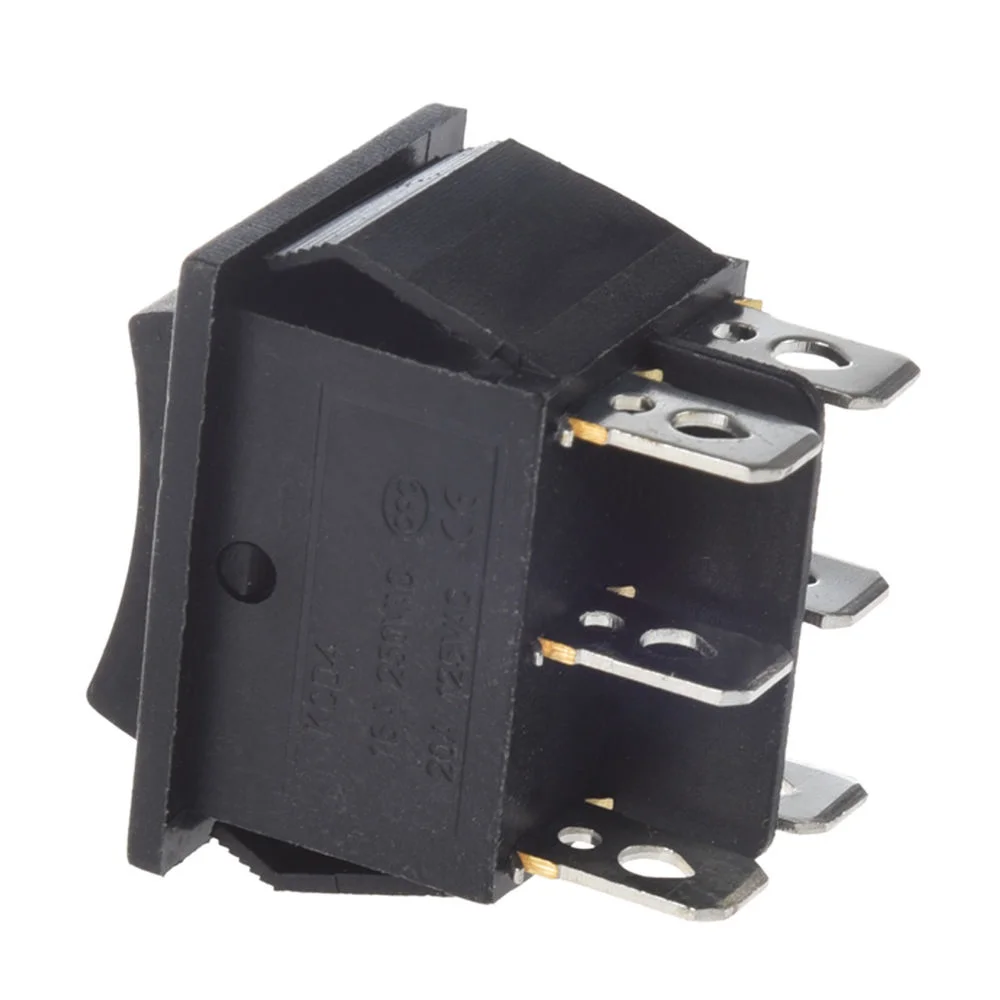

• Secure Spade Terminals: Includes standard 6.3mm male spade connectors to ensure low-resistance electrical connections and easy maintenance.

Technical Specifications:

• Switch Type: Rocker Switch (KCD2 / KCD4 Series)
• Contact Form: DPDT (Double Pole Double Throw)
• Switch Function: (ON) − OFF − (ON) [Momentary Action]
• Voltage/Current Rating 1: 16A 250V AC
• Voltage/Current Rating 2: 20A 125V AC
• Operating Temperature (T₈₅): ≤ 85°C
• Contact Resistance: ≤ 50 mΩ
• Insulation Resistance: ≥ 100 MΩ (at 500V DC)
• Dielectric Strength: ≥ 1500V AC per minute
• Electrical Life: ≥ 10,000 Cycles

Mechanical Specifications:

• Housing Material: Polyamide (Nylon 66) Flame Retardant UL94V−2
• Terminal Material: Silver−Plated Copper Alloy
• Actuator Finish: Matte Black Non−Slip Texture
• Mounting Type: Snap−In Panel Mount
• Number of Pins: 6 Pin Spade Terminals

Dimensions:

• Panel Cutout Size: ≈ 30.0 mm × 22.0 mm
• Overall Height (Including Pins): ≈ 35.5 mm
• Switch Body Depth: ≈ 28.0 mm
• Terminal Size: 6.3 mm (Standard Quick Connect)

Pinout and Wiring:

• Center Terminals: Connect these to the positive and negative power supply lines as the common input source.
• Outer Terminals: Connect these to the load or use cross−wiring for specialized motor reversal tasks.
• Polarity Reversal: Cross-wiring the top and bottom sets of outer terminals creates a H-bridge configuration for directional DC motor control.
• Wiring Safety: Technicians must ensure all connections use insulated female spade crimps to prevent accidental electrical contact or shorts.

Datasheet Reference: Download Datasheet:

• Download 6-Pin DPDT Rocker Switch Technical Specifications

Commonly Used in:

• Linear Actuator Systems: Controlling the extension and retraction of motorized cylinders in furniture and robotics.
• Automotive Accessories: Managing winches, hoists, and power window mechanisms in modified vehicles.
• Industrial Machinery: Serving as manual overrides or positioning switches for conveyors and assembly lines.
• Marine Equipment: Controlling anchor windlasses and hydraulic trim tabs on recreational vessels.

Applications:

• Engineers utilize this switch to implement manual motor reversing in industrial equipment.
• It serves as the primary control for power-actuated furniture requiring precise momentary positioning.
• Furthermore, hobbyists integrate it into custom vehicle modifications for winch control.
• Specifically, it manages the dual-line switching in heavy-duty appliances to ensure complete electrical isolation when off.
• Consequently, this switch effectively manages the high inrush currents often associated with starting large electric motors.

Equivalent Models:

• KCD4−203 Series: A widely available alternative featuring identical footprint and electrical ratings.
• Marquardt 1830 Series: High-end equivalent used in professional-grade power tools and medical equipment.
• Carling Technologies V−Series: Durable rocker switch often used in marine and heavy equipment applications.

Package Includes:

• 1 x Rocker Switch Big 6 Pin 16A 250V DPDT Momentary Spring Action
