5V Boost Step Up Power Module with Battery Charging Protection

35.00
You save

In stock

SKU: 999-5-5 Category: Brand:

Frequently Bought Together

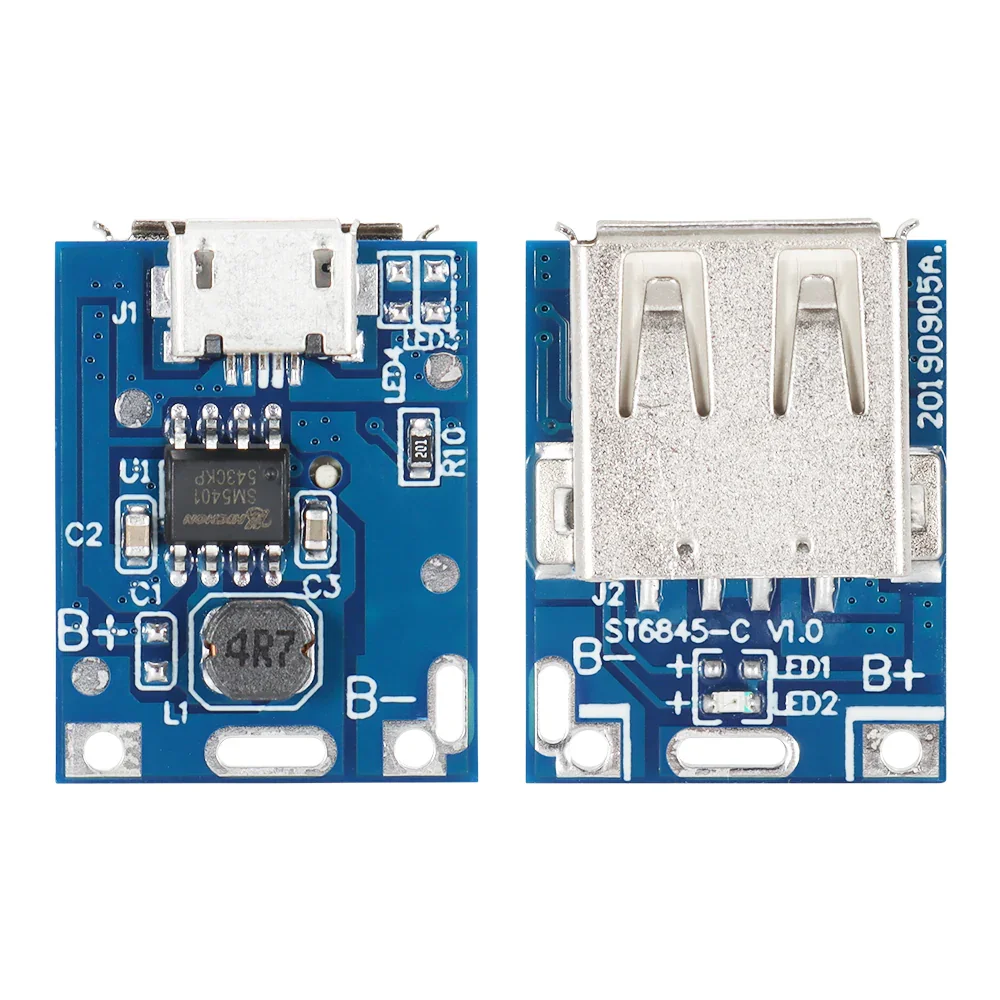

5V Boost Step Up Power Module with Battery Charging Protection is a compact power management board that integrates lithium battery charging and 5V boost conversion in a single module. It is designed for portable electronics, DIY power banks, and embedded projects, offering efficient charging, over-discharge protection, and stable 5V USB output from a single-cell Li-ion/LiPo battery.

Key Features:
  • Integrated Charging and Boost Conversion: Charges 3.7V Li-ion/LiPo batteries and steps up voltage to a regulated 5V output.
  • USB Output Port: Standard USB-A female connector for powering devices directly.
  • Micro USB Input: Convenient battery charging via common micro USB cable.
  • Battery Protection: Overcharge, over-discharge, and short-circuit protection built-in.
  • Compact and Efficient: Small form factor with high power conversion efficiency.
Technical Specifications:
  • Input Voltage (Charging): 5V DC via micro USB
  • Battery Type: 3.7V Li-ion or LiPo single cell
  • Boost Output Voltage: 5V DC regulated
  • Output Current: Up to 1A continuous (boost mode)
  • Charging Current: Approx. 1A
  • Protection: Overcharge, over-discharge, overcurrent, short circuit
Mechanical Specifications:
  • PCB Type: High-quality FR4 with solder mask
  • Connectors: Micro USB input, USB-A output
  • Indicator LEDs: Charging and power status indicators
Dimensions:
  • PCB Size: Approx. 37 mm × 20 mm
  • Mounting Holes: Not included (compact design for integration)
Pinout and Wiring:
  • Micro USB: Connect to 5V power source for charging battery
  • USB-A Output: 5V regulated power output for devices
  • Battery Pads: Solder terminals for Li-ion/LiPo battery connection
  • Wiring Tip: Ensure correct battery polarity to avoid damage
Datasheet Reference:
  • Search online for “5V Boost Step Up Module TP4056 + MT3608 datasheet” for detailed circuit diagrams and performance charts
Applications:
  • Portable Power Banks: Build custom rechargeable USB power sources.
  • DIY Electronics: Power microcontrollers, sensors, and portable projects.
  • Battery-Powered Gadgets: Supply stable 5V output from Li-ion/LiPo cells.
  • Prototyping: Rapid integration into mobile and off-grid systems.
Equivalent Models:
  • TP4056 + MT3608 Modules: Similar combination boards for battery charging and boost conversion.
  • CN3065 + XL6009 Modules: Alternative ICs offering higher output currents.
  • Single-Cell Li-ion Boost Charger Boards: General equivalents for USB-powered portable electronics.
Package Includes:
  • 1 × 5V Boost Step Up Power Module with Battery Charging Protection

Additional information

Weight 5 g
