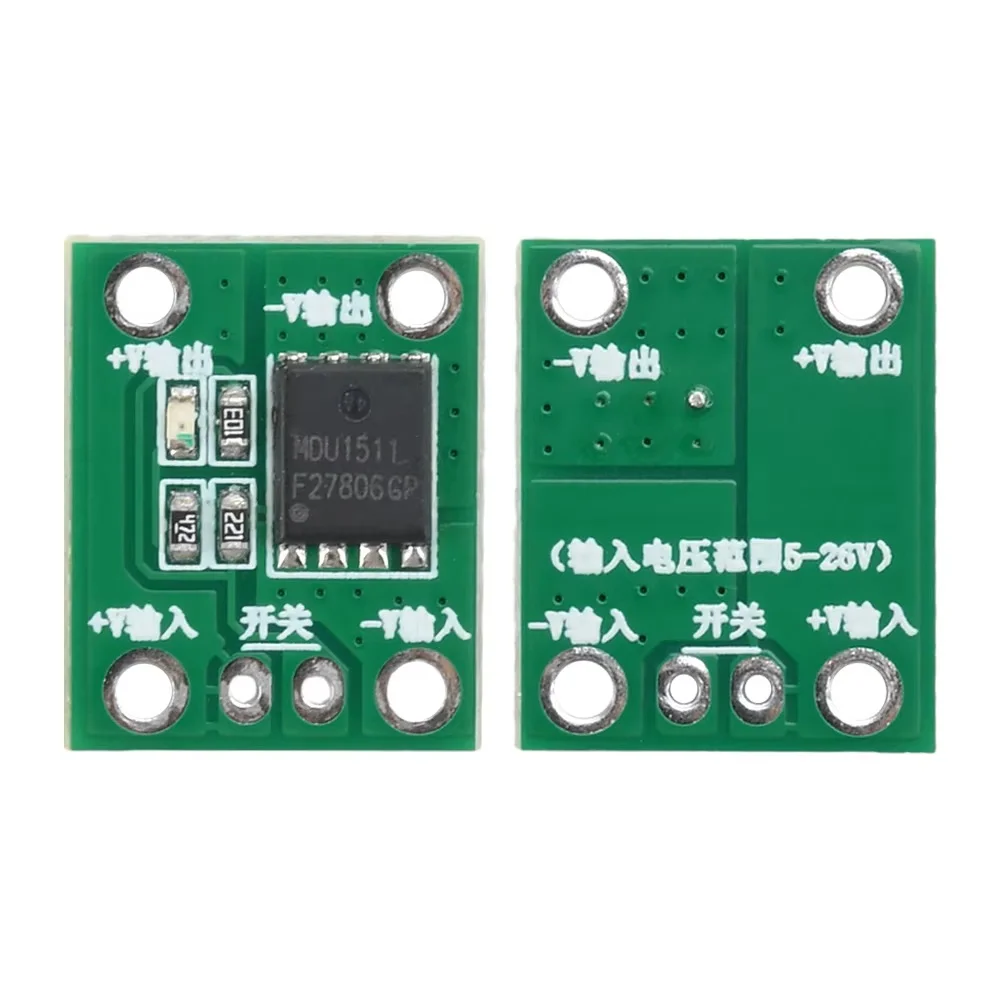

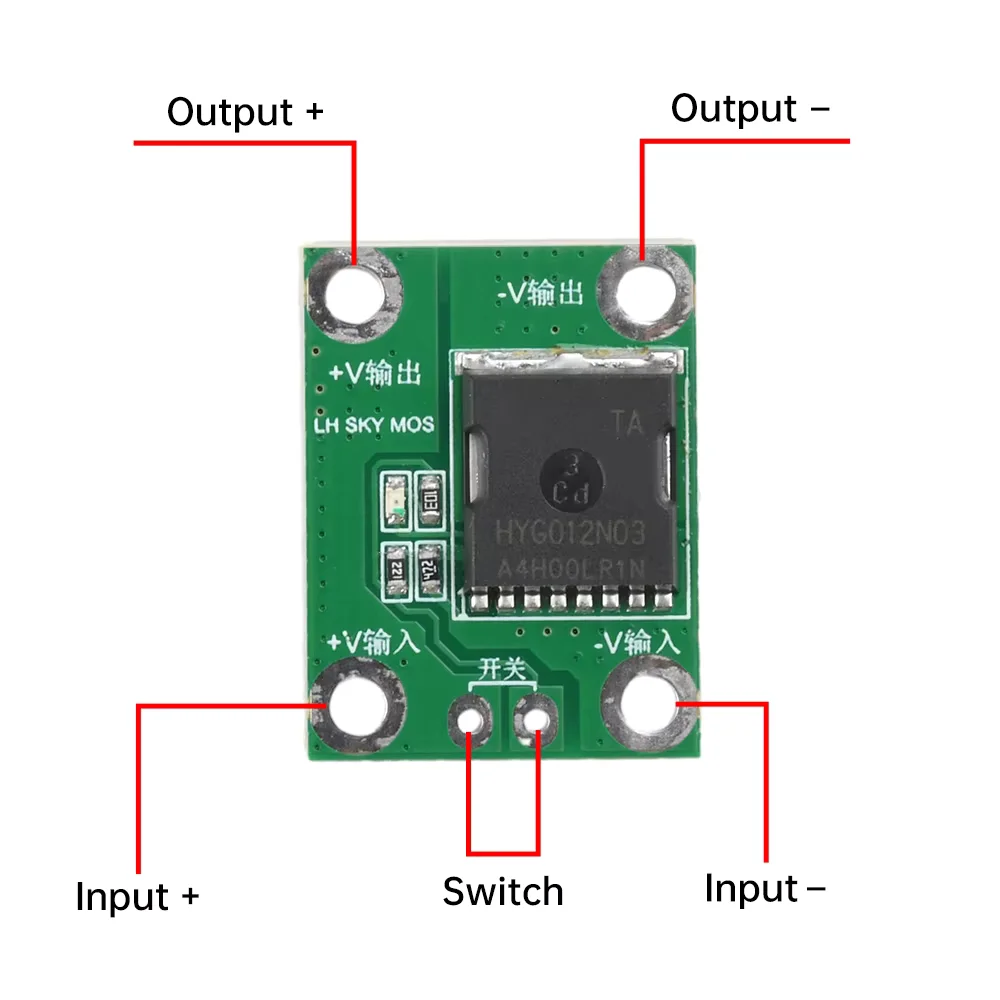

50A High Current PWM Controller MOSFET Driver Board for Motor and Electronic Load

PWM regulation electronic switch control board is used to control analog circuits through the digital output of the microprocessor, which is widely used in many fields, including measurement, communication, power control and conversion, etc.

PWM (Pulse Width Modulation) is a technique that uses the digital output of a microprocessor to control an analog circuit. This technology enables control of analog signals by adjusting the pulse width of the output signal.PWM technology enables control of analog quantities such as motor speed, light brightness, etc. by changing the width of the pulse signal. PWM technology is also widely used in the automotive field, for example, in the charging circuit of electric cars.

Key Features:

• • Support 5 to 26V DC voltage input, suitable for a variety of power supply environment
  • Using high quality high power MOS tube, withstand high current loads
  • Integrate PWM signal input to realize precise adjustment of output current.
  • Small size and easy to install, perfect for compact equipment and DIY projects.
  • Wide range of applications, ideal for electronics enthusiasts and professional engineers Parameters

Technical Specifications:

• • Current :50A
  •  Input Voltage :5-26V
  • Switching voltage: 5-12V (high and low level signal control)
  •  Size :16.7MM*12.7MM

Package Includes:

• • 1 x 50A High Power MOS Trigger Switch Driver Field Effect Tube PWM Regulation Electronic Switch Control 5-26V
