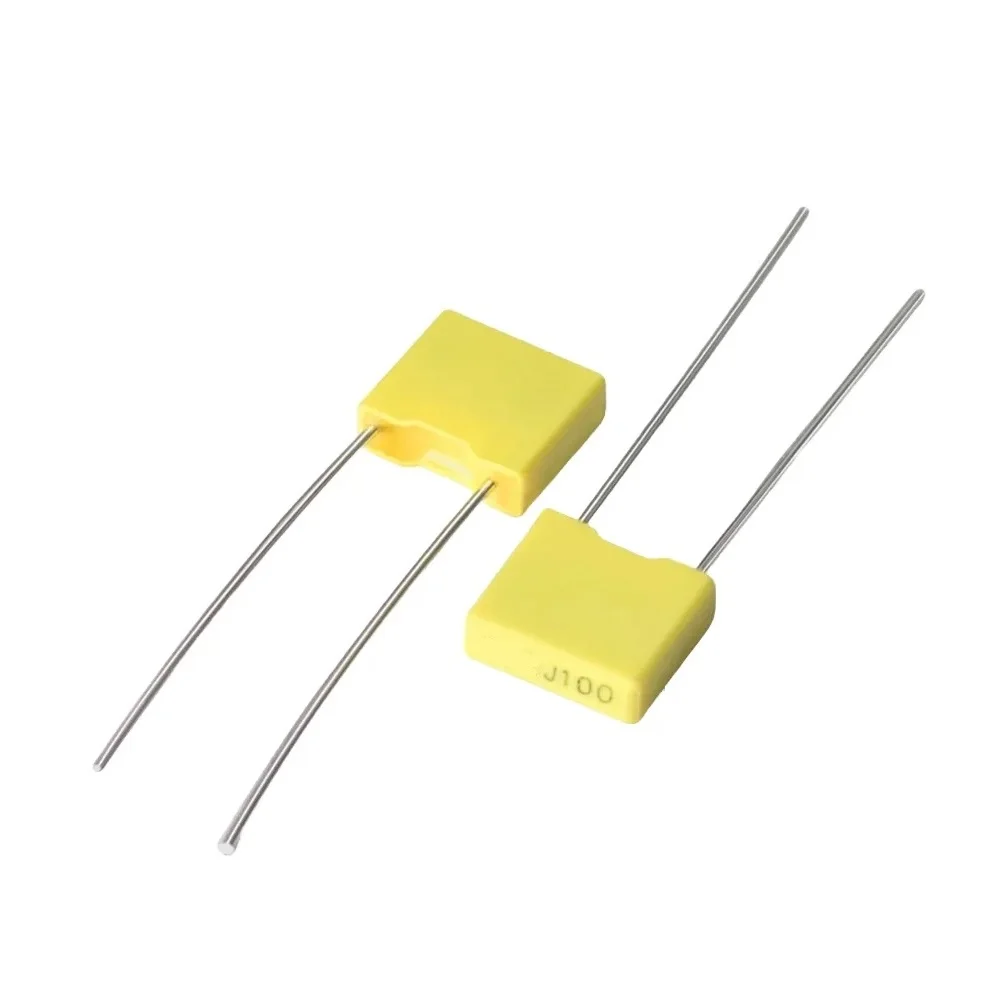

474J 470nF 100V Correction Capacitor

The 474J 470nF 100V Correction Capacitor is a polyester film capacitor designed for energy correction, signal filtering, and bypass applications in analog and digital circuits. It offers high stability, low ESR, and reliable performance in AC and DC circuits. The capacitor is encased in a compact, flame-retardant epoxy-coated box-type package for long-lasting use in electronic devices.

Key Features of 474J 470nF 100V Correction Capacitor:

• High Capacitance Stability: Maintains rated capacitance under various voltage and temperature conditions.
• Rated Voltage: Supports up to 100V DC operation.
• Polyester Film Dielectric: Ensures low dielectric absorption and good frequency response.
• Compact Size: Box-type casing fits easily in tight PCB layouts.
• Low ESR and ESL: Reduces power loss and enhances filtering efficiency.

Technical Specifications of 474J 470nF 100V Correction Capacitor:

• Capacitance: 470nF (0.47µF)
• Tolerance: ±5% (J)
• Rated Voltage: 100V DC
• Dielectric Type: Polyester Film
• Operating Temperature Range: -40°C to +85°C
• Insulation Resistance: >30,000 MΩ
• Lead Spacing: Typically 10mm or as per manufacturer spec

Mechanical Specifications of 474J 470nF 100V Correction Capacitor:

• Package Type: Box-type epoxy coated
• Lead Type: Radial through-hole
• Encapsulation: Flame-retardant epoxy resin
• Marking: Capacitance and voltage value printed on body (e.g., 474J 100V)

Dimensions:

• Length: ~11mm
• Height: ~9mm
• Thickness: ~4mm
• Lead Spacing: 10mm (typical)

Mounting Options:

• Through-Hole Mount: Suitable for wave soldering and standard PCBs.
• PCB Compatible: Designed for compact PCB footprints and leaded pad layouts.

Schematic Diagram, Connection, Wiring and Pinout of 474J Capacitor:

• Connection: Non-polarized – can be connected in either direction in circuit.
• Wiring: Connect across power lines for filtering or between signal lines for coupling.
• Pinout: Two leads – no polarity; use as per circuit requirement.

Datasheet of 474J 470nF 100V Correction Capacitor:

• Download 474J 470nF Datasheet (PDF)

Applications of 474J 470nF 100V Correction Capacitor:

• Signal Coupling: Used to pass AC signals while blocking DC bias.
• Power Supply Filtering: Reduces ripple and noise in DC lines.
• Snubber Circuits: Protects switching elements in SMPS and inverters.
• Timing and Oscillators: Stabilizes frequency in RC timer networks.
• Energy Storage: Used in low-energy correction circuits in lighting and motors.

Equivalent of 474J 470nF 100V Correction Capacitor:

• WIMA MKS2 0.47µF 100V: High-quality polyester film alternative with same specs
• Kemet R82 0.47µF 100V: General purpose film capacitor equivalent
• Panasonic ECQ-E2474JB: Flame-retardant polyester capacitor with similar rating

Package Includes:

• 1 x 474J 470nF 100V Correction Capacitor
