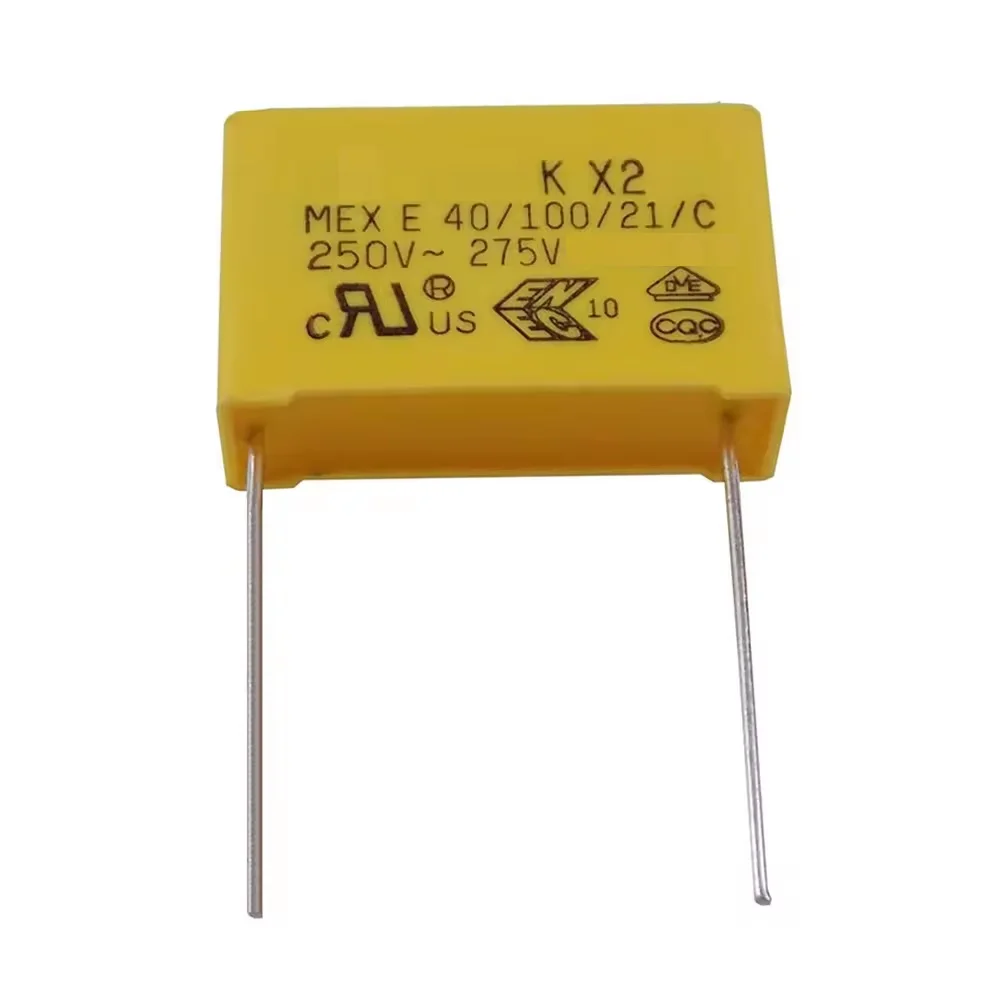

1uF 275VAC MP X2 Safety Capacitor Pitch 22mm

Key Features:

• • Capacitance: 1uF 106 microfarads (uF)
  • Voltage Rating: 275 VAC
  • Type: MKP 40/100/21 (Metallized Polypropylene)
  • Safety Class: X2 (designed for use across the line in AC applications)
  • Pitch: 22 millimeters (mm) (distance between lead centers)

Key Specifications:

• • Maximum AC voltage: 275VAC
  • Peak voltage: 305VAC (estimated based on typical X2 capacitor ratings)
  • Dielectric material: Metallized Polypropylene
  • Lead spacing: 22mm
  • Likely applications: EMI filtering, power factor correction, AC motor starting, and other AC line-connected applications requiring safety-rated capacitors

Additional Information:

• • MKP capacitors: Known for high reliability, low losses, and self-healing properties.
  • X2 safety class: Designed to withstand high voltage transients and ensure safety in the event of a capacitor failure.
  • Pitch: Important for compatibility with circuit board layouts and mounting constraints.

Package Includes:

• • 1 x 1uF 275VAC MP X2 Safety Capacitor Pitch 22mm
