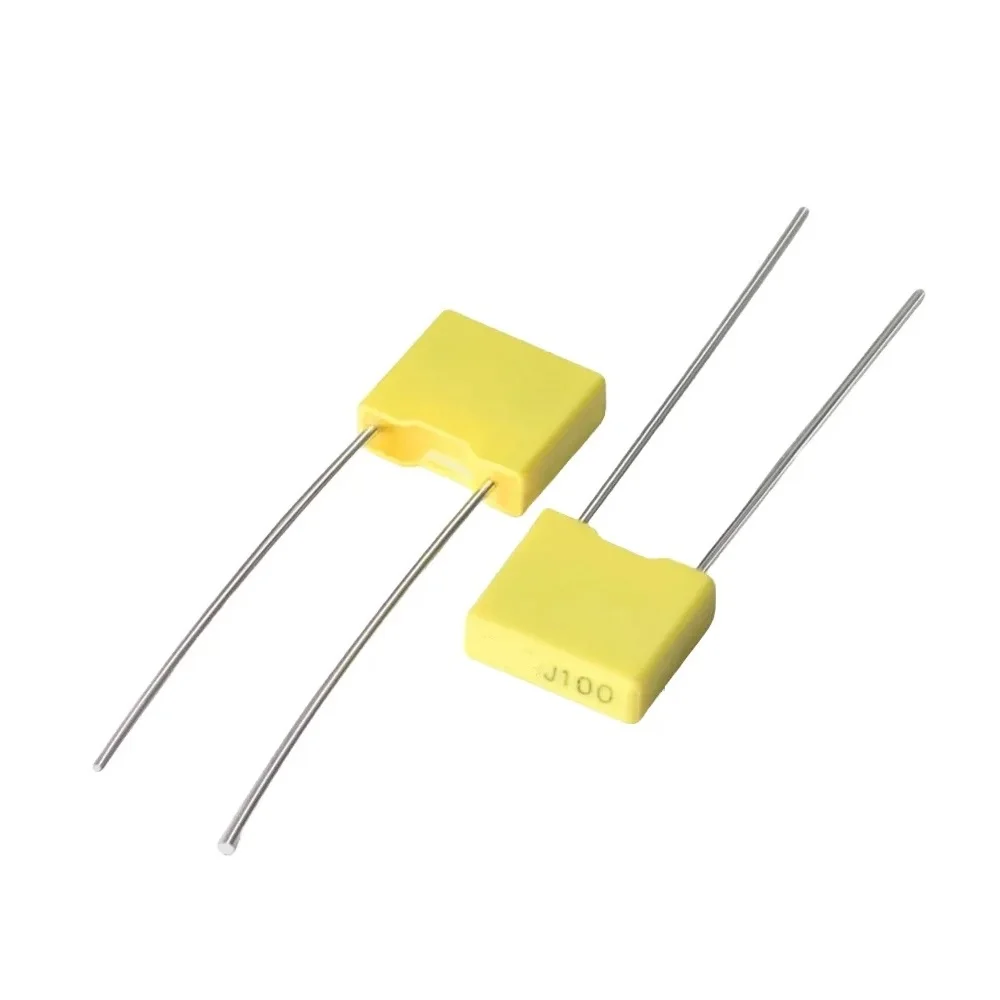

473J 47nF 100V Correction Capacitor

The 473J 47nF 100V Correction Capacitor is a high-stability polyester film capacitor designed for filtering, bypassing, and signal coupling applications. Its compact radial form and high insulation resistance make it suitable for use in power supplies, audio equipment, and general-purpose electronic circuits where moderate capacitance and voltage are required.

Key Features of 473J 47nF 100V Correction Capacitor:

• Capacitance Value: 47nF (0.047µF) ideal for noise suppression and signal coupling.
• Rated Voltage: 100V DC for moderate power applications.
• High Stability: Polyester film dielectric provides consistent performance over time.
• Low ESR and ESL: Supports better performance in high-frequency applications.
• Compact Design: Radial lead configuration fits tightly on PCBs.

Technical Specifications of 473J 47nF 100V Correction Capacitor:

• Capacitance: 47nF (0.047µF)
• Capacitance Tolerance: ±5% (J-code)
• Rated Voltage: 100V DC
• Dielectric Type: Polyester Film (Mylar)
• Lead Spacing: Typically 5mm or 7.5mm
• Operating Temperature Range: -40°C to +85°C
• Insulation Resistance: >30,000 MΩ·µF

Mechanical Specifications of 473J 47nF 100V Correction Capacitor:

• Package Type: Radial box type
• Lead Type: Tinned copper leads for easy soldering
• Body Material: Flame-retardant epoxy resin
• Mounting Style: Through-hole

Dimensions:

• Length: 11.0mm (typical)
• Height: 8.0mm
• Thickness: 4.0mm
• Lead Spacing: 5.0mm or 7.5mm

Mounting Options:

• Through-Hole PCB: Standard radial lead for insertion mount applications.
• Wire Wrap or Terminal Block: Suitable for educational and experimental boards.

Schematic Diagram, Connection, Wiring and Pinout of 473J Capacitor:

• Connection: Non-polarized — can be connected in either direction.
• Wiring: Lead 1 to signal/input; Lead 2 to ground/output as per application.
• Pinout: Two radial leads for easy placement on breadboards or PCBs.

Datasheet of 473J 47nF 100V Correction Capacitor:

• Download 473J Capacitor Datasheet (PDF)

Applications of 473J 47nF 100V Correction Capacitor:

• Snubber Circuits: Reduces switching noise in power circuits.
• Decoupling and Filtering: Used in power supply rails to smooth voltage spikes.
• Signal Coupling: Ideal for passing AC signals between amplifier stages.
• Timing Circuits: Forms RC time constants with resistors.
• General-Purpose Electronics: Suitable for DIY, audio, and embedded projects.

Equivalent of 473J 47nF 100V Correction Capacitor:

• WIMA MKS2 473J100V: German-quality equivalent film capacitor
• Panasonic ECQ-E: High-performance polyester capacitor series
• EPCOS B32529C: Industrial-grade capacitor with same rating
• Kemet R82: General purpose polyester film capacitor

Package Includes:

• 1 x 473J 47nF 100V Correction Capacitor
