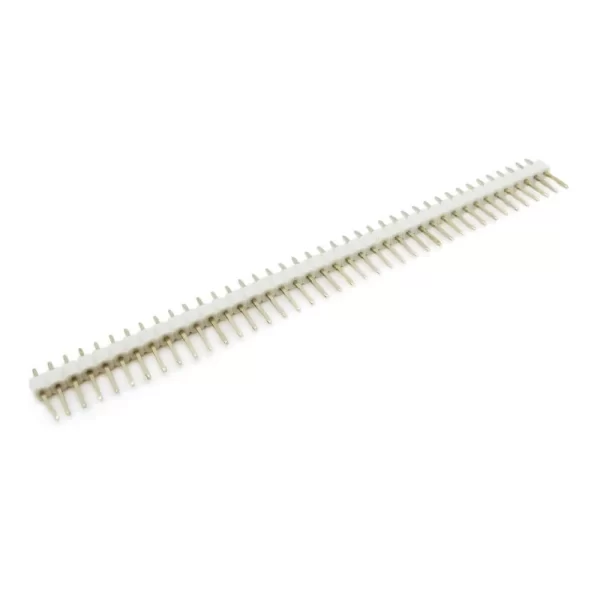

40P X 1 Berg Strip Male Straight 2.54mm – White

40P X 1 Berg Strip Male Straight 2.54mm – White is a versatile and high-quality interconnect solution designed for secure electrical connections between printed circuit boards and peripheral modules. This single-row header features a standard 2.54mm pitch, which ensures seamless compatibility with most breadboards, prototyping shields, and female headers. Furthermore, the distinct white insulator provides a clear visual coding option for complex assemblies, helping technicians distinguish different power or signal rails at a glance. Consequently, engineers often utilize these breakable strips to customize pin counts for specific project requirements. Therefore, you can rely on this robust berg strip to maintain signal integrity while offering the flexibility needed for rapid prototyping and mass production alike.

Key Features:

• Customizable Length: The plastic carrier features notches between each pin, allowing users to easily snap the strip into smaller segments without damaging the terminals.
• Standard Pitch: A precise 2.54 mm (≈ 0.1 inch) spacing guarantees a perfect fit for universal PCBs, Arduino shields, and standard ribbon cable connectors.
• High-Temperature Insulator: The white thermoplastic body withstands standard soldering temperatures, preventing melting or pin misalignment during assembly.
• Corrosion Resistance: High-quality plating on the brass pins ensures long-term conductivity and minimizes contact resistance in humid environments.
• Visual Identification: The white color simplifies cable management and troubleshooting by providing a sharp contrast against standard green or black PCBs.

Technical Specifications:

• Number of Pins: 40 Pins
• Number of Rows: Single Row (1×40)
• Pin Spacing (Pitch): 2.54 mm
• Current Rating: 3 A maximum
• Insulation Resistance: ≥ 1000 MΩ
• Contact Resistance: ≤ 20 mΩ
• Dielectric Withstanding Voltage: 500 V AC/DC
• Operating Temperature: −40°C to +105°C

Mechanical Specifications:

• Orientation: Straight (Vertical)
• Pin Shape: Square (0.64 mm)
• Base Material: Brass or Copper Alloy
• Insulator Material: Polyester (UL94V-0 Rated)
• Termination Style: Through-hole (Solder)

Dimensions:

• Overall Length: ≈ 101.6 mm
• Insulator Height: ≈ 2.5 mm
• Long Pin Length (Mating Side): ≈ 6.0 mm
• Short Pin Length (Solder Side): ≈ 3.0 mm
• Total Pin Height: ≈ 11.5 mm

Pinout and Wiring:

• Pin Configuration: This is a 1:1 pass-through connector where each pin acts as an independent conductive path.
• Solder Side: Insert the shorter end into the PCB copper pads and apply solder to create a permanent mechanical and electrical bond.
• Mating Side: Connect female jumper wires or female berg strips to the longer exposed pins to bridge signals.
• Wiring Note: However, always ensure that the pin headers sit flush against the PCB surface before soldering to avoid slanted connections.

Datasheet Reference:

• Download 2.54mm Male Header Strip Datasheet

Commonly Used in:

• Development Boards: Providing I/O access points for ESP32, STM32, and Arduino-compatible microcontrollers.
• TFT LCD Modules: Connecting display data buses to main control boards via ribbon cables.
• Modular Electronics: Facilitating the “stacking” of various sensor shields and power modules.

Applications:

• DIY Robotics: Organizing servo motor connections and sensor arrays on a central chassis.
• Custom PCB Prototyping: Creating removable test points or jumper settings for hardware debugging.
• Industrial Control Panels: Bridging internal logic circuits to external interface buttons and switches.

Equivalent Models:

• Molex 0022284400: A premium alternative often found in high-reliability industrial machinery.
• Amphenol 68000-140HLF: A functionally identical 40-pin header strip from a reputable manufacturer.
• Samtec TSW Series: Professional-grade headers that offer similar electrical characteristics, although they are available in various plating options.

Package Includes:

• 1 x 40P X 1 Berg Strip Male Straight 2.54mm – White
