4 Channel Infrared Sensor Tracking Module

₹110.00

In stock ?

In stock

SKU: BR1-IFT-03-05 Category: Brand:

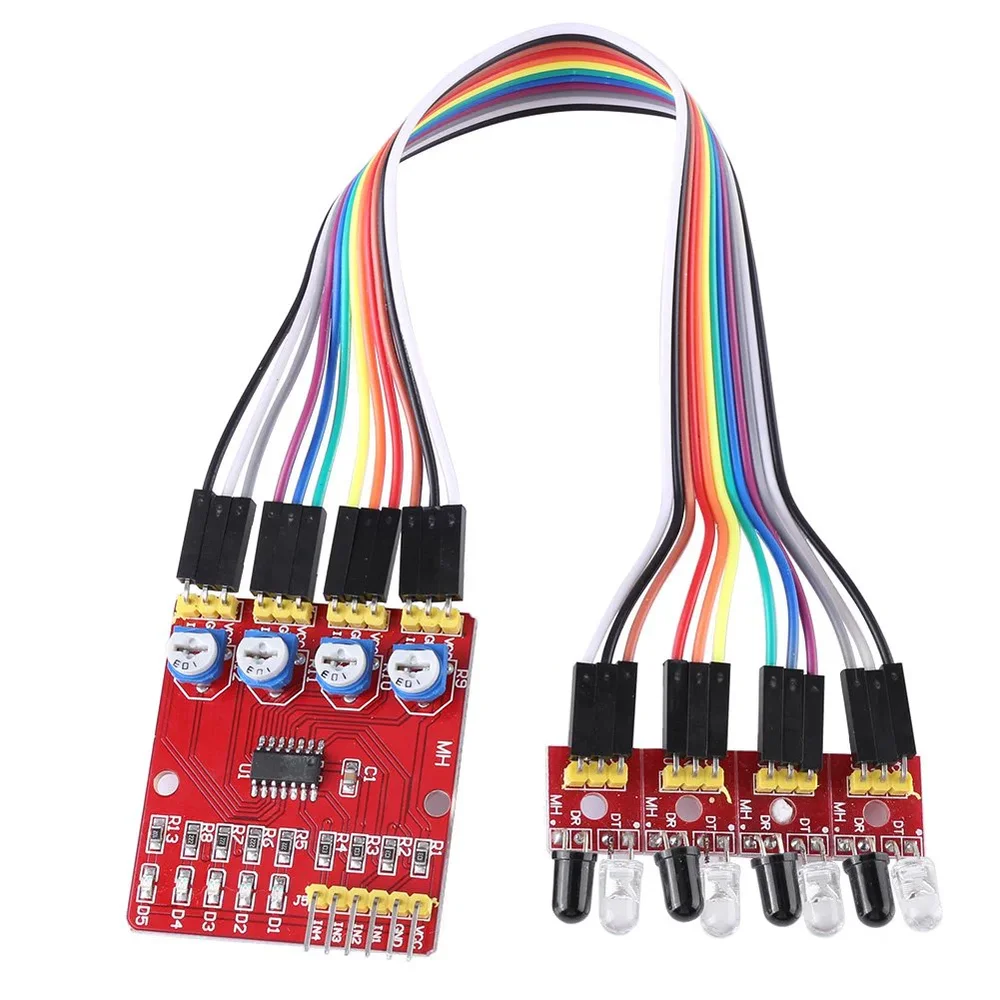

4-Channel Infrared Sensor Line Tracking Module (LM339) is an intelligent multi-channel optoelectronic sensing solution engineered for high-precision autonomous ground navigation, automated guided vehicles (AGVs), and smart robotic chassis. Utilizing four independent pairs of matched infrared emitter diodes and high-sensitivity phototransistors coupled with an onboard LM339 quad comparator, this tracking module detects variations in surface reflectivity between contrasting colors such as black guide tracks and white running surfaces. Furthermore, each individual channel features an onboard high-precision multiturn trimmer potentiometer allowing dynamic calibration of sensitivity thresholds, guaranteeing dependable line acquisition across diverse ambient illumination conditions and varying surface textures. Consequently, this module provides discrete TTL-compatible digital outputs that interface directly with standard microcontrollers without requiring external signal conditioning hardware.

Key Features:
  • Multi-Channel Tracking: Features 4 independent infrared reflection channels providing granular spatial resolution for complex line navigation.
  • Independent Calibration: Equipped with individual onboard trimmer potentiometers to independently fine-tune the trigger threshold for each optical channel.
  • Onboard Voltage Comparator: Incorporates the industry-standard LM339 quad differential comparator IC ensuring noise-immune digital switching.
  • Active LED Indicators: Includes individual surface-mount status LEDs for every channel to provide real-time visual feedback during track alignment.
  • Universal Microcontroller Compatibility: Directly compatible with 3.3V and 5V logic architectures including Arduino, ESP32, STM32, and Raspberry Pi.
Technical Specifications:
  • Operating Voltage: 3.3V to 5.0V DC
  • Operating Current: 40mA to 80mA (all channels active)
  • Detection Range: 1mm to 25mm (optimal performance at 8mm to 12mm)
  • Output Signal: 4-Channel Active-Low Digital TTL (0V when surface reflects, VCC when track absorbs)
  • Comparator IC: LM339 Quad Differential Comparator
  • Operating Temperature: -10°C to +50°C
Mechanical Specifications:
  • PCB Material: FR-4 Industrial Flame-Retardant Glass Epoxy
  • Mounting Holes: 2 × 3.0mm diameter mechanical securing holes for rigid chassis fixation
  • Connector Header: Standard 2.54mm pitch 6-pin male header (VCC, GND, OUT1, OUT2, OUT3, OUT4)
  • Optical Alignment: Linear array arrangement with uniform 15mm inter-sensor spacing
Dimensions:
  • Overall Length: 68mm
  • Overall Width: 42mm
  • Overall Height: 12mm
  • Module Weight: ≈ 14g
Pinout and Wiring:
  • VCC: Connect to regulated DC power supply positive (+3.3V to +5V DC).
  • GND: Connect to common system ground (0V reference).
  • OUT1: Digital output pin for Channel 1 phototransistor sensor.
  • OUT2: Digital output pin for Channel 2 phototransistor sensor.
  • OUT3: Digital output pin for Channel 3 phototransistor sensor.
  • OUT4: Digital output pin for Channel 4 phototransistor sensor.
Datasheet Reference:
Commonly Used in:
  • Autonomous line-following mobile robots and robotics competition platforms.
  • Automated guided vehicle (AGV) warehouse logistics and factory floor transit carts.
  • Industrial conveyor belt item sorting and material transfer alignment systems.
  • Educational STEM robotics laboratory training kits and microcontroller experimental platforms.
Applications:
  • Robotic Path Tracing: Enabling differential-drive rovers to precisely navigate sharp turns and intersections along predefined black track lines.
  • Edge and Drop-off Detection: Serving as table-edge fall-prevention sensors for tabletop cleaning robots and inspection rovers.
  • Object Proximity Sensation: Monitoring short-range reflective barriers in automated packaging and carton sealing machines.
Equivalent Models:
  • TCRT5000 4-Channel Line Tracking Module
  • Funduino 4-Way Line Tracker Sensor Board
  • Waveshare Tracker Sensor 4-Channel Array
  • Pololu QTR-3A / QTR-3RC Reflectance Sensor Array
Package Includes:
  • 1 × 4 Channel Infrared Sensor Tracking Module
  • 1 × 6-Pin Female-to-Female Dupont Jumper Ribbon Cable
