4.45 Inch TFT LCD Display Module ST7701 Driver 480*854 RGB Interface Color Screen

4.45 Inch TFT LCD Display Module ST7701 Driver 480*854 Resolution RGB Interface Color Screen For Arduino delivers sharp, high-resolution graphics and vibrant color rendering for embedded systems, smart control panels, and maker projects. This display features an IPS panel driven by the robust Sitronix ST7701 controller, supporting a crisp 480×854 pixel FWVGA resolution. Furthermore, the module utilizes a high-speed parallel RGB interface alongside a 3-wire SPI configuration channel to ensure fluid video playback and responsive graphical refresh rates. Consequently, users experience smooth animations and clear text rendering across broad viewing angles. Therefore, this color screen serves as an excellent upgrade for advanced microcontroller and microprocessor platforms including the ESP32-S3, STM32, Arduino, and single-board computers.

Key Features:

• High-Resolution Visuals: Delivers 480×854 pixels on a 4.45-inch display surface, ensuring crisp text, icons, and graphical user interfaces.
• Full-View IPS Technology: Offers wide symmetrical viewing angles up to ≈ 160° with consistent color accuracy and strong contrast.
• Dual Interface Architecture: Combines a 3-wire SPI bus for initial register setup with a high-throughput parallel RGB interface for continuous video streaming.
• Rich Color Depth: Renders up to 16.7 million colors (24-bit RGB) to reproduce vivid photographs, gauges, and interactive menus.
• Integrated Backlight: Features a high-efficiency white LED backlight array that provides clear visibility under various ambient lighting conditions.

Technical Specifications:

• Driver IC: Sitronix ST7701 / ST7701S
• Screen Size: 4.45 Inch diagonal
• Resolution: 480 × 854 pixels (FWVGA)
• Display Interface: 3-Wire SPI + 16/18/24-bit RGB Parallel
• Operating Logic Voltage (VDD/VDDI): 2.8 V to 3.3 V ±5%
• Backlight Voltage (VBL): ≈ 12.0 V to 13.5 V
• Backlight Current (IBL): ≈ 20 mA to 40 mA
• Display Type: Transmissive IPS TFT LCD
• Operating Temperature: -20°C to +70°C

Mechanical Specifications:

• Display Orientation: Portrait (software configurable to Landscape)
• Connection Type: Flat Printed Circuit (FPC) Ribbon Cable
• Pixel Pitch: ≈ 0.115 mm × 0.115 mm
• Glass Structure: Slim Chip-On-Glass (COG) construction

Dimensions:

• Active Area (W × H): ≈ 55.4 mm × 98.6 mm

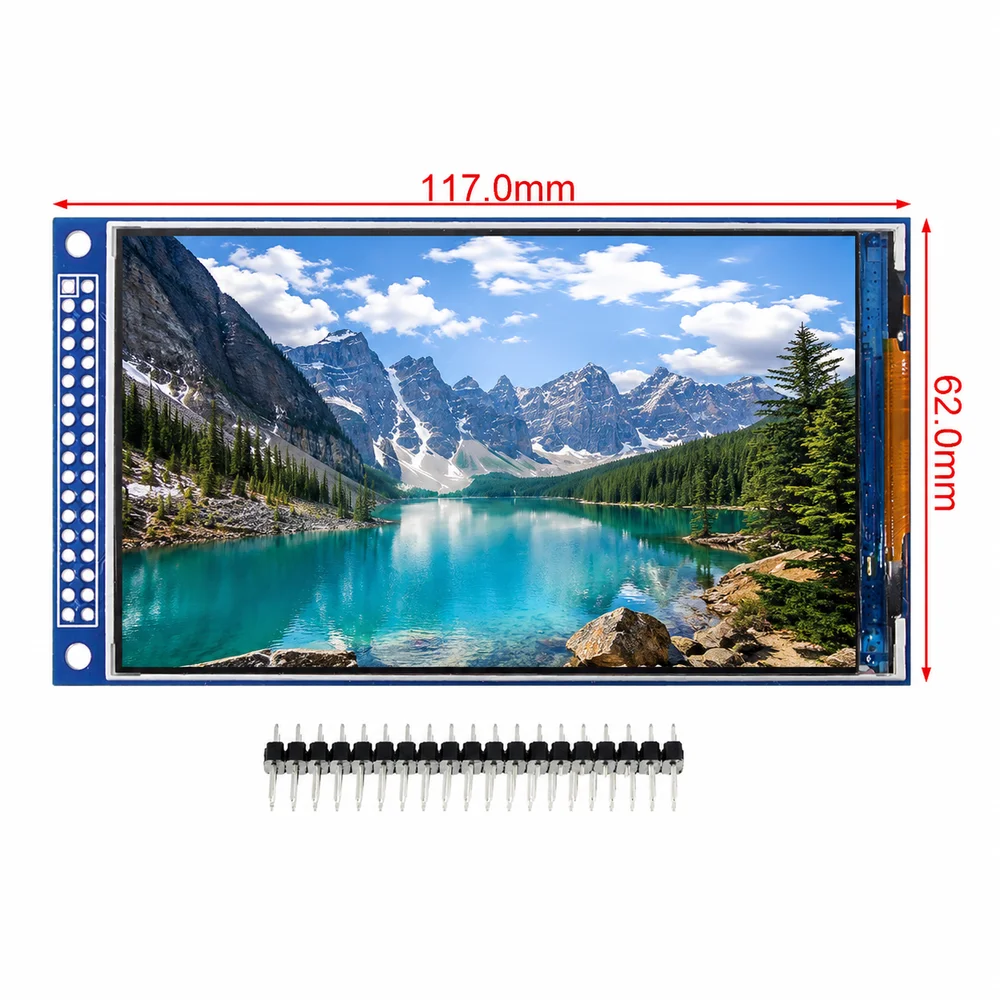

• Module Outline (W × H): ≈ 61.5 mm × 108.2 mm
• Module Thickness: ≈ 2.2 mm (excluding FPC bend)
• Total Weight: ≈ 28.0 g

Pinout and Wiring:

• VDD / VDDI: Supplies 3.3V power to the ST7701 logic core and I/O lines.
• GND: Connects to the system common ground reference.
• CS / SDA / SCL: Provide the 3-wire SPI communication lines to configure registers upon system startup.
• RESET: Serves as the active-low hardware reset signal to initialize display registers.
• PCLK / DOTCLK: Receives the pixel clock synchronization pulse for continuous RGB data streaming.
• HSYNC / VSYNC: Receive horizontal and vertical sync pulses for raster framing.
• ENABLE (DE): Receives the data enable strobe to define active pixel scan regions.
• R0-R7, G0-G7, B0-B7: Transmit 24-bit parallel color data directly to the display buffer.
• LEDA / LEDK: Supply power to the anode and cathode lines of the LED backlight string.
• Note: However, standard 8-bit Arduino boards lack sufficient memory and high-speed RGB pins; therefore, use 32-bit controllers like ESP32-S3 or STM32 with dedicated LCD peripheral interfaces.

Datasheet Reference:

• Download Sitronix ST7701 Driver Datasheet

Commonly Used in:

• Smart Home Automation: Building wall-mounted touch panels, thermostat displays, and central room dashboards.
• Automotive Instruments: Creating custom auxiliary digital dashboards, EV telemetry monitors, and speedometers.
• Handheld Test Equipment: Serving as the main visual readout for portable oscilloscopes, network analyzers, and multimeters.

Applications:

• Industrial HMI Panels: Rendering real-time process monitoring graphics and machine telemetry.
• DIY Gaming Consoles: Powering portable retro emulation systems that require high frame rates.
• Medical Diagnostic Monitors: Presenting patient vital signs, wave data, and configuration menus with sharp clarity.

Equivalent Models:

• 3.97 Inch ST7701 480×800 TFT Module: A slightly smaller IPS display variant sharing the same ST7701 RGB architecture.
• 4.3 Inch ST7701S 480×800 TFT Display: A popular standard widescreen format offering comparable pixel resolution and SPI+RGB control.
• 4.0 Inch ST7701 480×480 Square Display: A square format alternative from the identical driver family for rotary or symmetrical housings.

Package Includes:

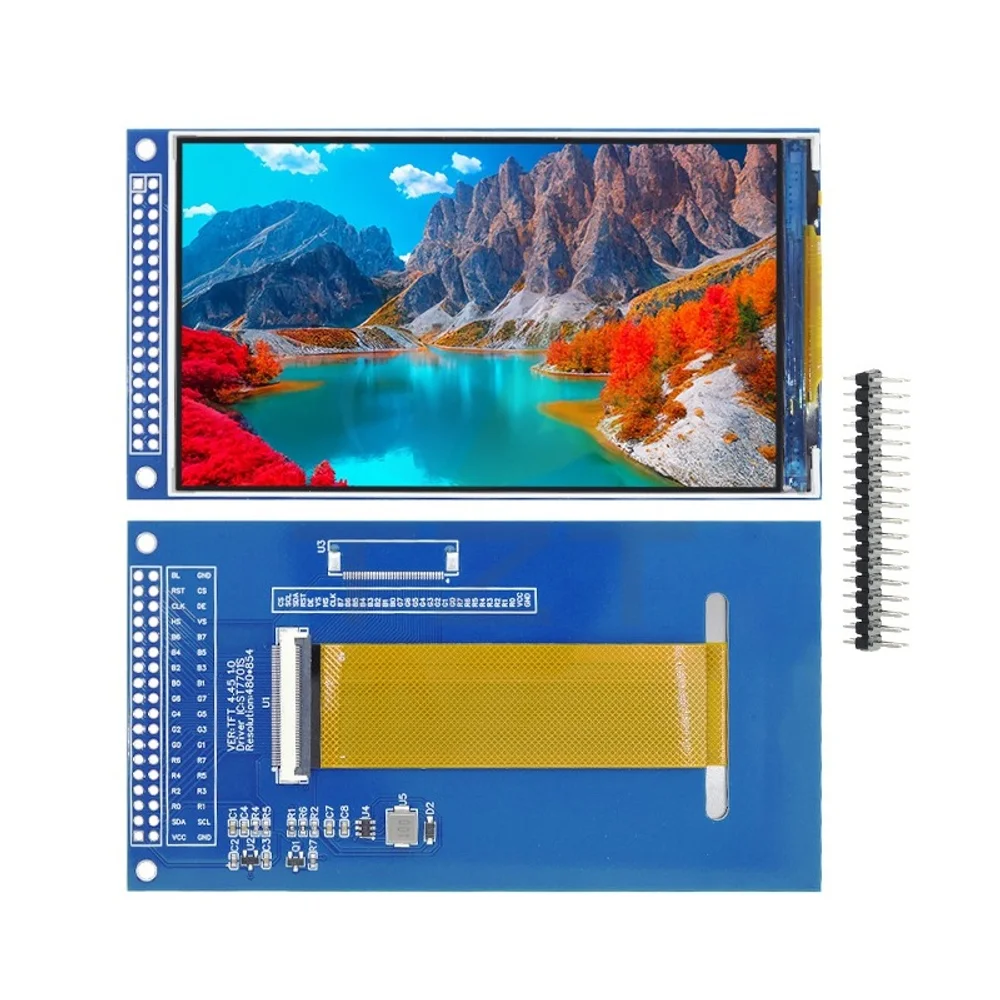

• 1 x 4.45 Inch TFT LCD Display Module (ST7701 Driver, 480×854 Resolution, RGB Interface)
