3dBi 2.4G/4G RP-SMA Male Omni Directional Antenna

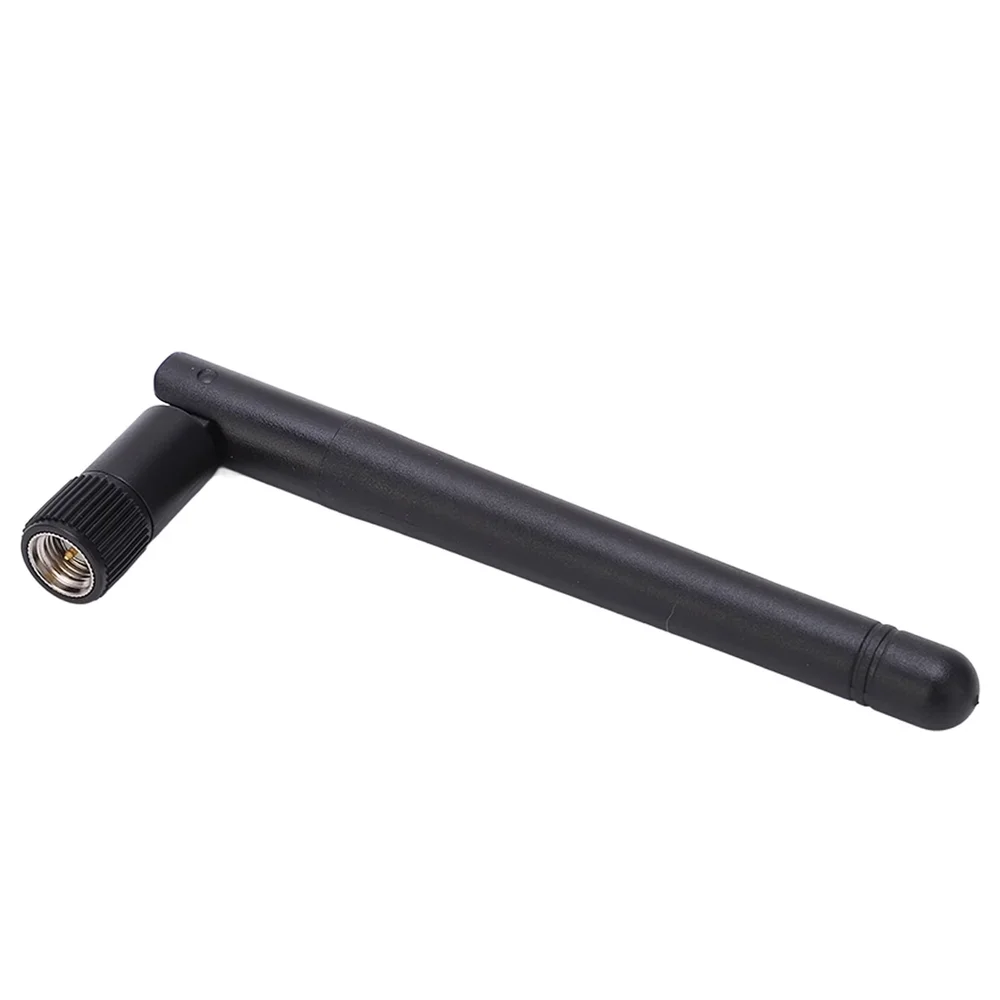

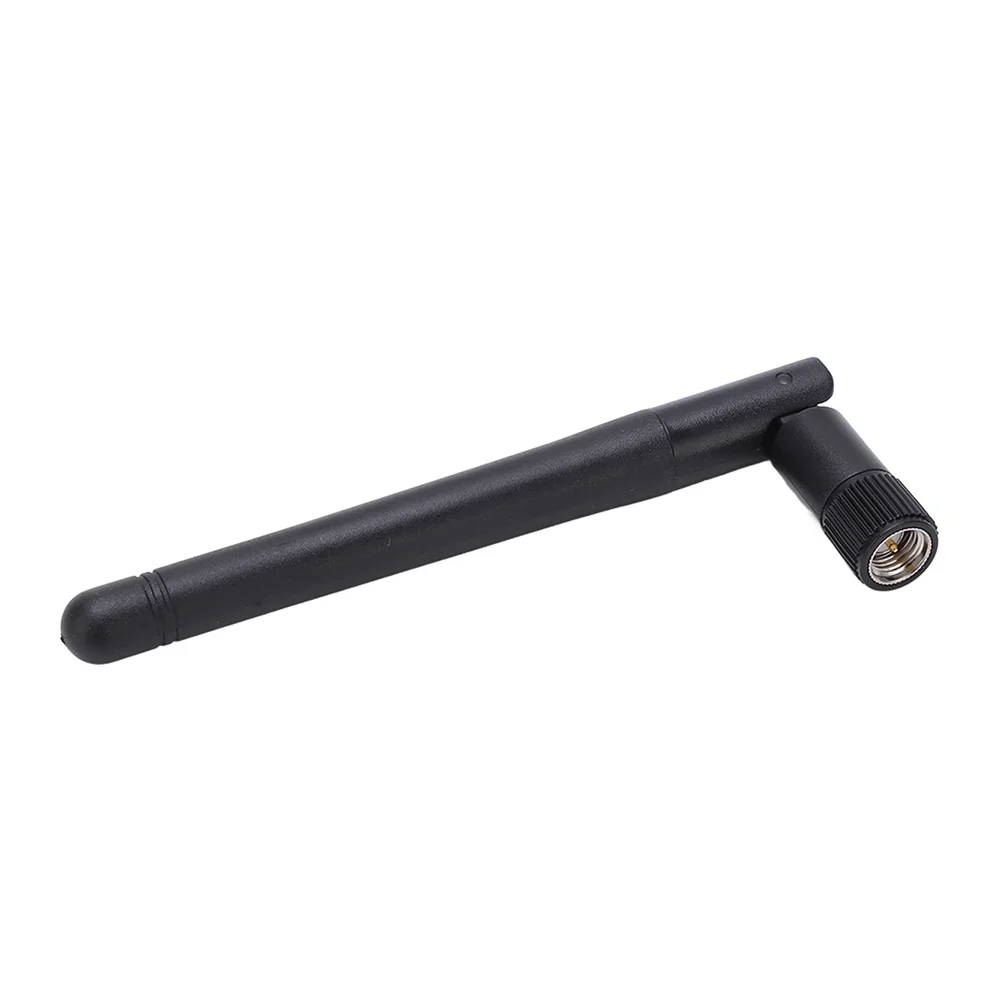

3dBi 2.4G/4G RP-SMA Male Omni Directional Antenna is a compact and versatile communication component designed to significantly enhance wireless signal strength for IoT devices, routers, and wireless modules. This antenna operates effectively across the 2.4 GHz and 4G frequency bands, providing a reliable 3dBi gain to expand your network’s coverage area. Furthermore, its omni-directional radiation pattern ensures consistent signal reception and transmission in all horizontal directions. Consequently, you can achieve more stable data rates and reduced latency without needing to precisely align the antenna with the signal source. Therefore, integrating this antenna into your wireless system represents a cost-effective way to overcome signal interference and physical obstructions in residential or industrial environments.

Key Features:

• Dual-Band Compatibility: Supports both 2.4 GHz Wi-Fi and 4G LTE frequency ranges, allowing for broad application across different wireless standards.
• 3dBi Signal Gain: Provides a moderate gain boost that increases the effective range of wireless modules without introducing excessive noise.
• Omni-Directional Pattern: Radiates and receives signals in a 360° horizontal plane, ensuring maximum flexibility in device placement.
• RP-SMA Connector: Features a standard Reverse Polarity SMA male connector, making it compatible with most Wi-Fi routers and RF development boards.
• Adjustable Tilt: The integrated hinge allows the antenna to rotate and fold, however, it maintains a rigid position once set to your desired angle.

Technical Specifications:

• Frequency Range: 2400-2500 MHz / 700-2700 MHz (4G LTE)
• Gain: 3 dBi
• V.S.W.R: ≤ 1.5
• Input Impedance: 50 Ω
• Radiation: Omni-directional
• Maximum Power: 50 W
• Polarization: Vertical Linear

Mechanical Specifications:

• Connector Type: RP-SMA Male (Hole in center, internal threads)
• Radome Material: High-quality TPE / ABS Plastic
• Color: Black
• Mounting Style: Screw-on (Directly to bulkhead or module)

Dimensions:

• Total Length: ≈ 110 mm (Extended)
• Diameter: ≈ 10 mm
• Weight: ≈ 12 g

Pinout and Wiring:

• Center Interface: Features a receptacle (hole) to accept the pin from an RP-SMA Female bulkhead.
• Outer Shell: Uses internal threads to secure the connection to the RF port.
• Wiring Note: Simply thread the antenna onto the RP-SMA female jack of your device until finger-tight; moreover, avoid using tools to prevent over-tightening the connector.

Datasheet Reference:

• Download 2.4GHz/4G Omni Antenna Datasheet

Commonly Used in:

• Wireless Routers: Upgrading stock antennas on consumer or industrial Wi-Fi routers for better indoor coverage.
• IoT Development Boards: Connecting to ESP32, ESP8266, and Raspberry Pi modules equipped with u.FL to RP-SMA pigtails.
• 4G LTE Modems: Improving signal stability in areas with weak cellular reception.

Applications:

• Smart Home Systems: Ensuring reliable connectivity for smart hubs and security cameras located far from the router.
• Industrial Telemetry: Providing a robust wireless link for remote sensor nodes and data loggers.
• Robotics: Maintaining control signals for FPV drones and ground-based robots operating in high-interference zones.

Equivalent Models:

• Linx Technologies ANT-2.4-CW-RH: A similar high-performance 2.4GHz antenna with a compact form factor.
• PulseLarsen W1010: A trusted alternative for 2.4GHz applications, although it may offer different gain characteristics.
• Taoglas TG.09: A high-quality small-profile 4G/Wi-Fi antenna suitable for multi-band environments.

Package Includes:

• 1 x 3dBi 2.4G/4G RP-SMA Male Omni Directional Antenna
