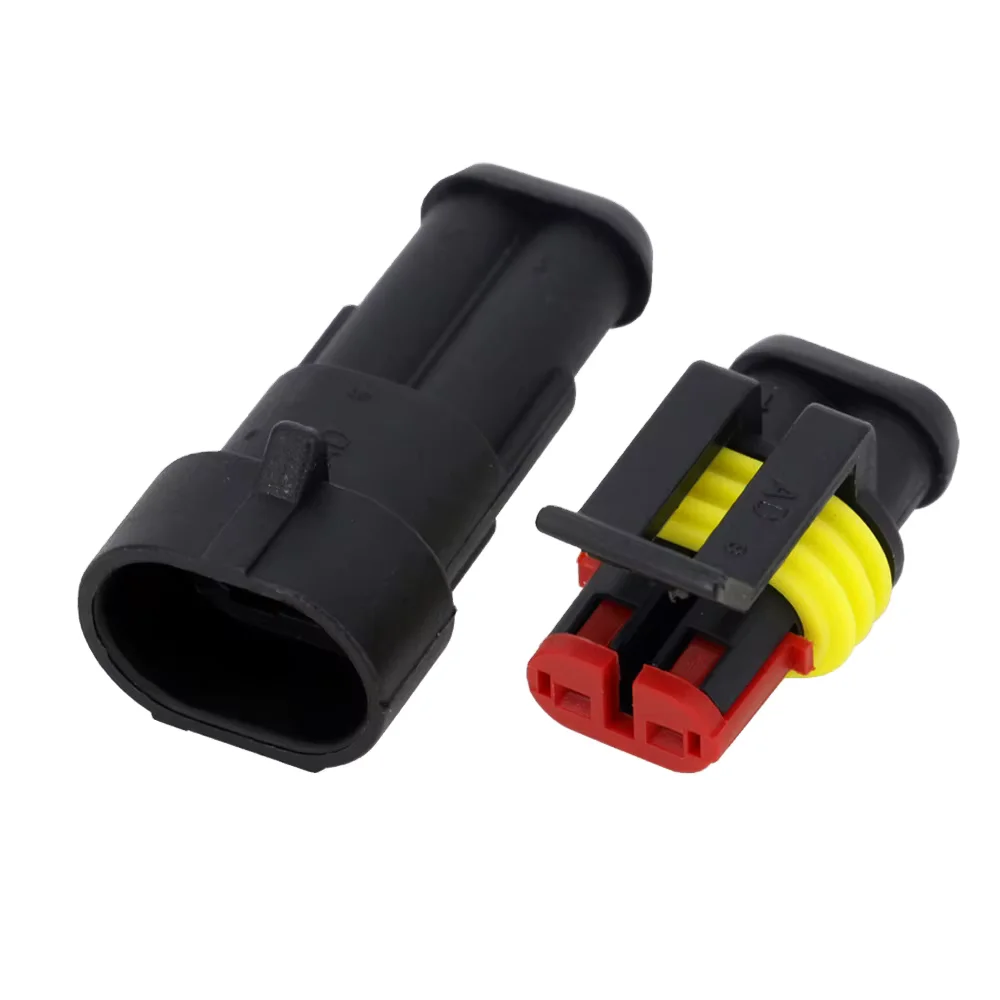

2P Waterproof Automotive Connector Pair

2P Waterproof Automotive Connector PairThis high-quality 2P Waterproof Automotive Connector Pair provides a reliable, environmentally sealed electrical connection for demanding vehicle and marine applications. Furthermore, the connector features a robust snap-lock mechanism that prevents accidental disconnection during high-vibration scenarios. Consequently, it ensures long-term signal integrity by protecting internal contacts from dust, water, and debris. Therefore, technicians prefer this Superseal-style connector for custom wiring harnesses and aftermarket electronic installations. However, proper crimping of the terminals is essential to maintain the integrity of the moisture-resistant seal. Additionally, the compact design allows for easy integration into tight engine bays or chassis spaces. Ultimately, this connector pair offers a professional-grade solution for protecting critical electrical circuits in harsh outdoor environments.

Key Features

• Environmental Sealing: Utilizes high-quality silicone rubber seals to achieve superior resistance against moisture and dust ingress.
• Secure Locking Mechanism: Includes a primary locking tab that ensures a tight, vibration-proof mating between the male and female housings.
• Corrosion Resistance: Features tin-plated copper terminals that prevent oxidation in salty or humid conditions.
• Easy Installation: Designed for quick assembly using standard automotive crimping tools for a secure wire-to-wire connection.
• High-Temperature Tolerance: Constructed from durable nylon material capable of withstanding the heat typically found in engine compartments.
• Universal Compatibility: Follows standard 1.5mm series specifications, consequently allowing for use in a wide variety of automotive brands.

Technical Specifications

• Series Type: Superseal 1.5mm Series
• Number of Positions: 2 Pin (2P)
• Maximum Current Rating: ≈ 14A (Depending on wire gauge)
• Operating Voltage: ≤ 24V DC (Optimized for 12V and 24V systems)
• Ingress Protection Rating: IP67 (Dust tight and protected against temporary immersion)
• Dielectric Strength: ≥ 1000V AC
• Insulation Resistance: ≥ 100 MΩ
• Wire Size Range: 0.5 mm² to 1.5 mm² (20-16 AWG)

Mechanical Specifications

• Housing Material: PA66 Polyamide (Nylon) with high impact resistance
• Terminal Material: Tin-plated Copper Alloy
• Seal Material: High-grade Silicone Rubber
• Connector Color: Black with yellow seals and red locking accents
• Mating Force: ≤ 80 N

Dimensions

• Assembled Length: ≈ 54.0 mm
• Housing Width: ≈ 20.0 mm
• Housing Height: ≈ 18.0 mm
• Terminal Size: 1.5 mm series tab and receptacle

Pinout and Wiring

• Pin 1: Primary signal or positive power line
• Pin 2: Return path or ground line
• Wiring Note: Always slide the silicone wire seals onto the wire before crimping the terminals. Furthermore, ensure the terminal clicks firmly into the housing to guarantee a waterproof fit.

Datasheet Reference: Download Datasheet

Superseal 1.5mm Series Connector Specifications

Commonly Used in

• Automotive Engine Bay Wiring
• Marine Electronics and Bilge Pumps
• Motorcycle Aftermarket Lighting
• Off-Road Vehicle Accessories
• Agricultural Machinery Sensors

Applications

• Technicians install these connectors to create weatherproof junctions for external vehicle lighting like LED bars.
• They serve as the standard interface for engine sensor connections where exposure to fluids is likely.
• Consequently, marine engineers utilize them for corrosion-resistant wiring on boat trailers and navigation systems.
• Therefore, DIY enthusiasts employ them for reliable electrical repairs in rugged outdoor equipment.
• Furthermore, the modular design facilitates easy component replacement in complex industrial harnesses.

Equivalent Models

• TE Connectivity 282080-1: The original industry standard for the Superseal 1.5mm 2-way series.
• Amphenol AT Series: A heavy-duty alternative often found in heavy equipment applications.
• Deutsch DT Series: A similar high-performance waterproof connector, though utilizing a different pin shape.

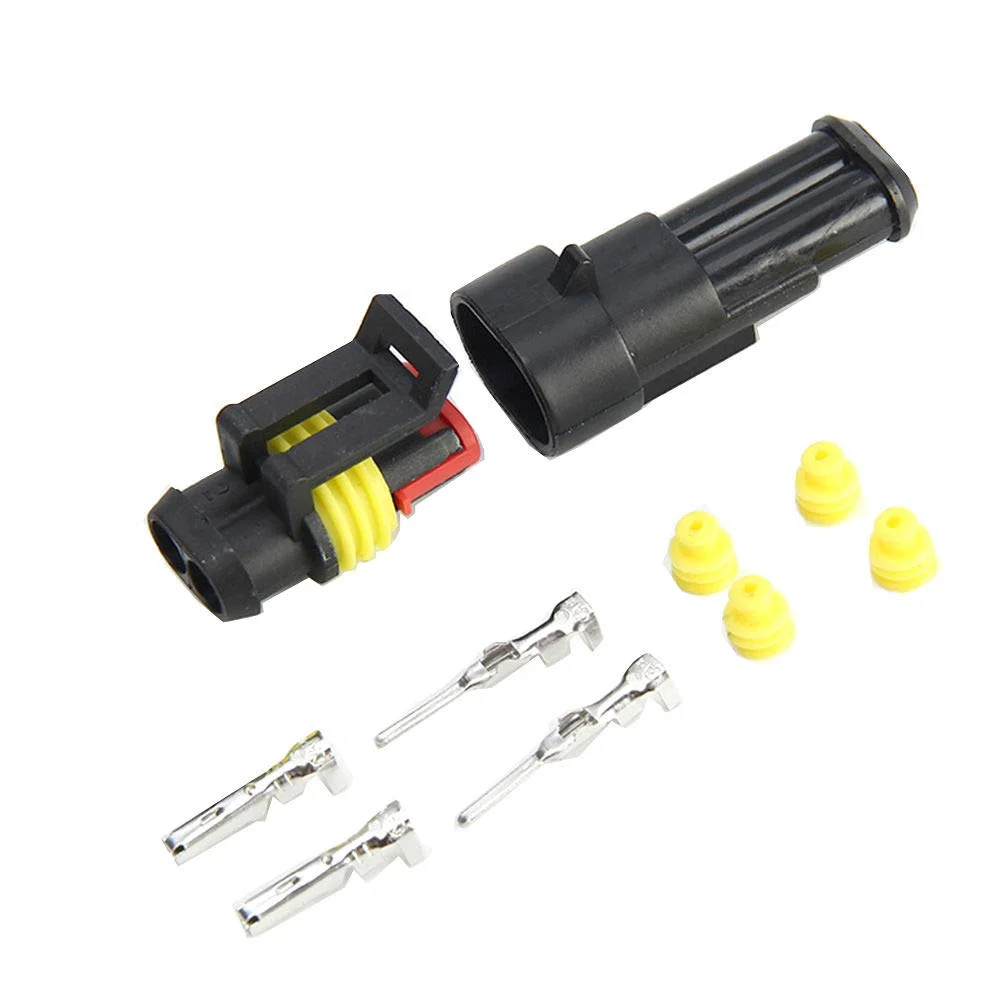

Package Includes

• 1 x 2-Pin Male Connector Housing
• 1 x 2-Pin Female Connector Housing
• 2 x Male Metal Terminal Pins
• 2 x Female Metal Terminal Pins
• 4 x Yellow Silicone Rubber Wire Seals
