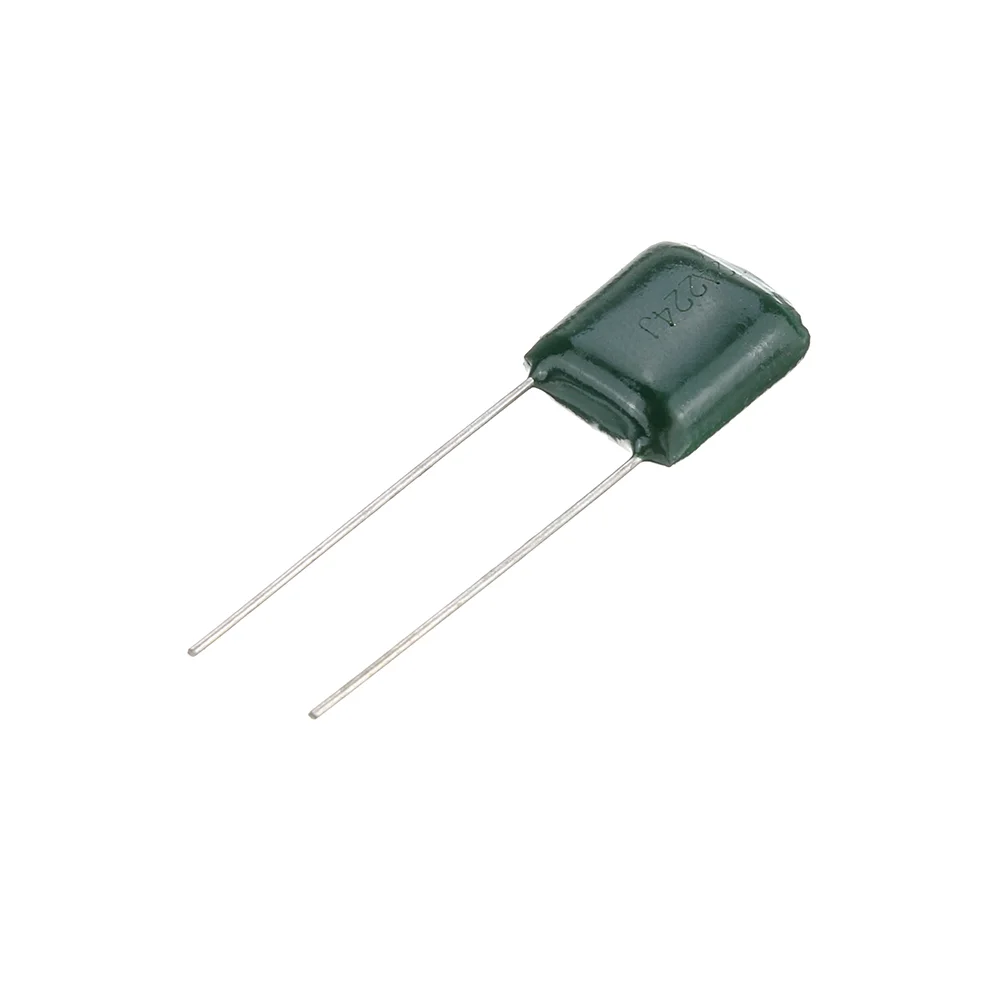

2A224J 100V Mylar Polyester Film Capacitor

2A224J 100V Polyester Film Capacitor provides a highly reliable and stable capacitive solution for general-purpose electronic filtering, coupling, and decoupling applications. This 0.22 μF (220nF) component utilizes a non-inductive construction with a metallized polyester film dielectric to ensure excellent self-healing properties. Consequently, the capacitor maintains its integrity even after internal dielectric breakdowns caused by transient overvoltages. Furthermore, its compact “Green Drop” or “Mylar” style epoxy coating offers robust protection against humidity and mechanical stress. Therefore, you should choose the 2A224J for precision timing or noise suppression tasks where space and cost-efficiency are paramount.

Key Features:

• High Insulation Resistance: The polyester film ensures minimal leakage current, making it suitable for high-impedance circuit applications.
• Self-Healing Dielectric: This feature allows the capacitor to recover from localized internal discharges, significantly extending the component’s operational lifespan.
• Low Dissipation Factor: It exhibits minimal energy loss during operation, which reduces heat generation in high-frequency signal environments.
• Broad Operating Temperature: The robust epoxy resin coating enables stable performance across a wide range of environmental conditions.
• Non-Polarized Design: However, unlike electrolytic types, this capacitor is non-polar, which simplifies installation as it functions in either direction.

Technical Specifications:

• Capacitance Value: 0.22 μF (indicated by code 224)
• Voltage Rating (DC): 100 V (indicated by code 2A)
• Tolerance: ±5% (indicated by code J)
• Dielectric Material: Polyester (Mylar) Film
• Dissipation Factor (tan δ): ≤ 1.0% (at 1 kHz)
• Insulation Resistance: ≥ 30,000 MΩ
• Operating Temperature: −40°C to +105°C

Mechanical Specifications:

• Coating Type: Flame Retardant Epoxy Resin (UL 94V-0)
• Lead Type: Radial Tinned Copper Wires
• Construction: Non-inductive wound metallized film
• Color: Typically Green or Dark Brown

Dimensions:

• Body Width (W): ≈ 12.5 mm
• Body Height (H): ≈ 10.0 mm
• Body Thickness (T): ≈ 5.5 mm
• Lead Pitch (P): ≈ 10.0 mm
• Lead Diameter: ≈ 0.6 mm

Pinout and Wiring:

• Connection 1: Either lead (Non-polar)
• Connection 2: Either lead (Non-polar)
• Wiring Note: Ensure the leads remain as short as possible during installation to minimize parasitic inductance in high-frequency applications.

Datasheet Reference:

• Download General Polyester Film Capacitor Datasheet

Commonly Used in:

• Audio Equipment: Blocking DC signals in pre-amplifiers and power amplifier stages.
• Power Supplies: Filtering high-frequency ripple in low-voltage DC-DC converters.
• Communication Gear: Serving as frequency-determining elements in oscillators and filters.

Applications:

• Signal Coupling: Passing AC signals between different stages of a circuit while blocking DC offsets.
• Bypass Filtering: Shunting unwanted high-frequency noise to ground to protect sensitive ICs.
• Snubber Circuits: Absorbing voltage spikes in switching power supplies to protect transistors.

Equivalent Models:

• CBB21 224J 100V: A polypropylene film alternative that offers lower dissipation but larger physical size.
• MKT 224J 100V: The European standard designation for metallized polyester film capacitors of this value.
• CL21 224J 100V: A direct technical equivalent often produced by specialized Chinese manufacturers.

Package Includes:

• 1 x 2A224J 100V Polyester Film Capacitor (0.22μF / 220nF)
