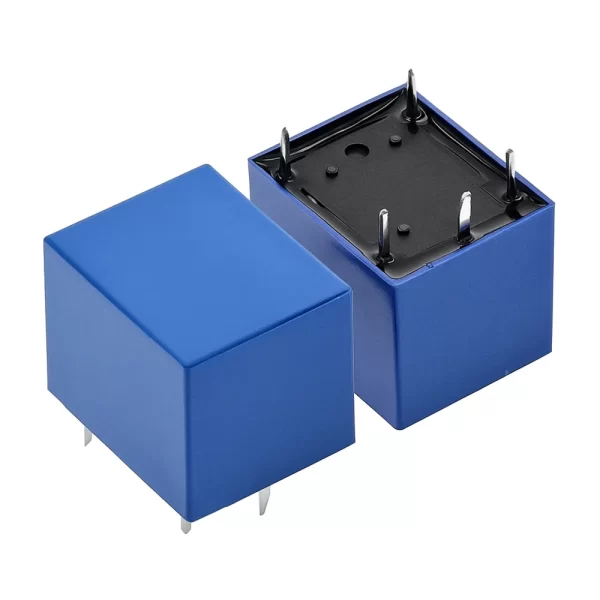

24V Sugar Cube Relay

Save 39% 12.3020.00
You save

Out of stock

SKU: IFT00216 Category: Tag: Brand: ,

24V Sugar Cube Relay is a compact electromagnetic switch designed for switching AC or DC loads using a low-power 24V control signal. Commonly used in home automation, control systems, and industrial equipment, this relay offers reliable switching in a small form factor known as the “sugar cube” due to its size and shape.

Key Features:
  • 24V Coil Voltage: Operates efficiently with 24V DC trigger signal.
  • Compact Size: Sugar cube design fits easily on PCBs or control panels.
  • High Load Capacity: Typically supports up to 10A at 250VAC or 30VDC.
  • SPDT/SPST Configuration: Available in both single pole single throw and single pole double throw options.
  • Isolation: Electrically separates control circuit from load circuit.
Technical Specifications:
  • Coil Voltage: 24V DC
  • Contact Rating: 10A @ 250VAC / 30VDC
  • Contact Configuration: SPDT or SPST
  • Coil Resistance: ~1440Ω ±10%
  • Operate Time: ≤ 10ms
  • Release Time: ≤ 5ms
  • Insulation Resistance: ≥ 100MΩ (at 500VDC)
  • Dielectric Strength: 1500VAC between coil and contacts
Mechanical Specifications:
  • Dimensions: Approx. 19mm x 15.5mm x 15.3mm
  • Weight: Approx. 6g
  • Mounting: PCB through-hole
  • Enclosure: Plastic dustproof housing
Mounting Options:
  • Through-Hole: Fits directly into PCB slots
  • Soldering: Compatible with manual or wave soldering
  • Socket Base: Optional for replaceable installations
Schematic Diagram, Connection, Wiring and Pinout:
  • Coil Pins: Connect to 24V DC power source
  • Common (COM): Main input terminal for switching
  • Normally Open (NO): Connected to COM when relay is energized
  • Normally Closed (NC): Connected to COM when relay is idle
  • Typical Pin Layout: 5-pin configuration: 2 coil, 1 COM, 1 NO, 1 NC
Datasheet and Documentation:
  • Download 24V Sugar Cube Relay Datasheet (PDF)
Applications:
  • Home Automation: Switching lights, fans, and appliances
  • Industrial Control: Relay control panels and PLC systems
  • Security Systems: Alarm triggers and door locks
  • Automotive: Used in car electronics for controlling loads
  • Smart Devices: Microcontroller-based switching projects
Equivalent Models:
  • JQC-3FF-24VDC: Common 24V SPDT sugar cube relay
  • SRD-24VDC-SL-C: Blue housing relay widely used in Arduino and IoT applications
  • OMRON G5LE-1-24DC: Premium alternative with longer lifespan
Package Includes:
  • 1 x 24V Sugar Cube Relay

Additional information

Weight 10 g
Dimensions 18 × 15 × 15 mm
INPUT VOLTAGE

24v

Be the first to review “24V Sugar Cube Relay”

Reviews

There are no reviews yet.
