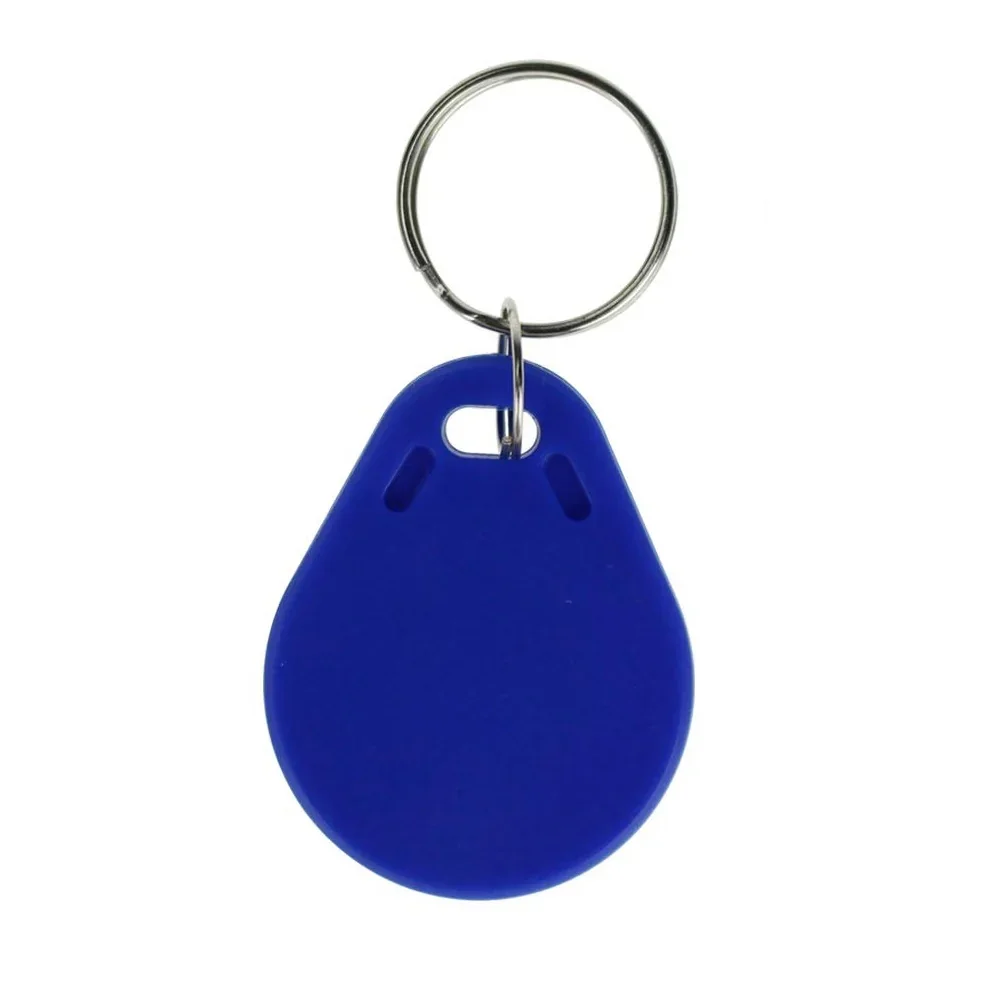

13.56MHz RFID Tag with Keychain

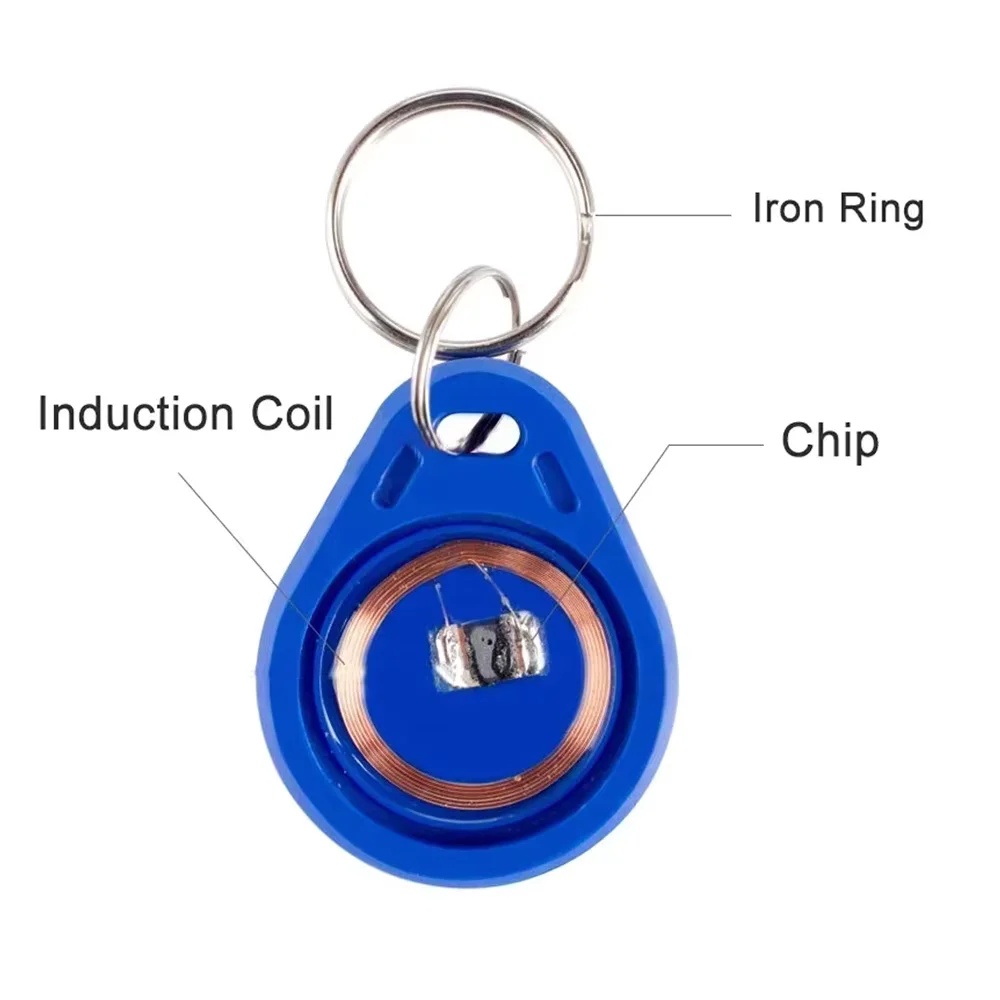

13.56MHz RFID Tag with Keychain is a highly reliable, compact contactless token designed for seamless integration with modern access control and automated tracking systems. This durable transponder communicates over a High-Frequency (HF) wireless band, utilizing standard proximity protocols to interact effortlessly with compatible readers. Consequently, it eliminates the mechanical wear associated with traditional magnetic stripe or physical key systems. The lightweight ABS shell protects the internal copper antenna and silicon chip from everyday environmental hazards. Furthermore, the attached metal split ring permits easy fastening to personal keychains. Therefore, you can rapidly deploy this key fob to enhance security, track attendance, or streamline contactless ticketing processes across your facility.

Key Features:

• High-Frequency Performance: Operates at a precise 13.56MHz frequency to ensure rapid data transfer rates and robust anti-collision capabilities during scans.
• Rugged Waterproof Housing: Features a sealed ABS plastic casing that resists moisture, dust, and physical impacts during daily handling.
• Unique Identification: Contains a pre-programmed, unique identifier (UID) code to secure access points and eliminate the risk of duplication.
• Passive Power Supply: Operates entirely without batteries, drawing its necessary power directly from the electromagnetic field of the reader.
• Convenient Form Factor: Incorporates a strong iron split ring, making it highly portable and instantly accessible for users on the move.

Technical Specifications:

• Operating Frequency: 13.56 MHz
• Standard Protocol: ISO/IEC 14443 Type A
• Chip Type: Classic 1K Compatible Silicon Chip
• Memory Capacity: 1K Byte (8 kbit) EEPROM organized in 16 sectors
• Read Distance: ≈ 2 cm to 5 cm (Depends on reader antenna design and power output)
• Data Retention: ≥ 10 Years
• Write Endurance: ≥ 100,000 Cycles

Mechanical Specifications:

• Enclosure Material: Waterproof Acrylonitrile Butadiene Styrene (ABS)
• Ring Material: Zinc-plated Iron or Stainless Steel
• Ingress Protection: Rated at IP67 / IP68 (Fully dustproof and water-resistant)
• Color: Standard Blue (High visibility)

Dimensions:

• Fob Length: ≈ 40.5 mm
• Fob Width: ≈ 32.0 mm
• Fob Thickness: ≈ 4.2 mm
• Split Ring Diameter: ≈ 20.0 mm
• Weight: ≈ 4.5 g (Including the metal keychain attachment)

Pinout and Wiring:

• Wireless Interface: This device does not have physical pins or wires. It connects exclusively via an RF induction loop antenna.
• Coupling Method: Bring the tag face parallel to the reader antenna array to establish the best magnetic coupling.
• Alignment Note: However, mounting the tag directly onto large metal surfaces will shield the RF field and severely reduce the read range.

Datasheet Reference:

• Download NXP MIFARE Classic 1K IC Datasheet

Commonly Used in:

• RFID Interfacing Modules: Pairing directly with popular development boards utilizing the RC522 or PN532 transceiver chipsets.
• Electronic Door Strikes: Providing authorized personnel access through commercial electronic gates and office security doors.
• Time Clock Terminals: Logging employee start and finish times at automated attendance tracking hardware stations.

Applications:

• Commercial Security: Restricting access to sensitive zones like server rooms, storage bays, and laboratory facilities.
• Membership Management: Verifying credentials at gym turnstiles, public swimming pools, and community clubs.
• Public Transit Ticketing: Serving as a reloadable commuter pass for bus and subway fare gates.
• Asset Tracking: Identifying specialized tools or equipment inside logistics depots and manufacturing plants.

Equivalent Models:

• MIFARE Classic 1K Fob: The original industry standard token from NXP offering matching functional specs and protocol compatibility.
• S50 Proximity Tag: A generic alternative designation for 13.56MHz 1K storage tokens used interchangeably across global markets.
• FM11RF08 Keyfob: A compatible equivalent manufactured by Fudan Microelectronics that executes the identical command set, although sub-register timings might vary slightly.

Package Includes:

• 1 x 13.56MHz RFID Tag with Keychain
