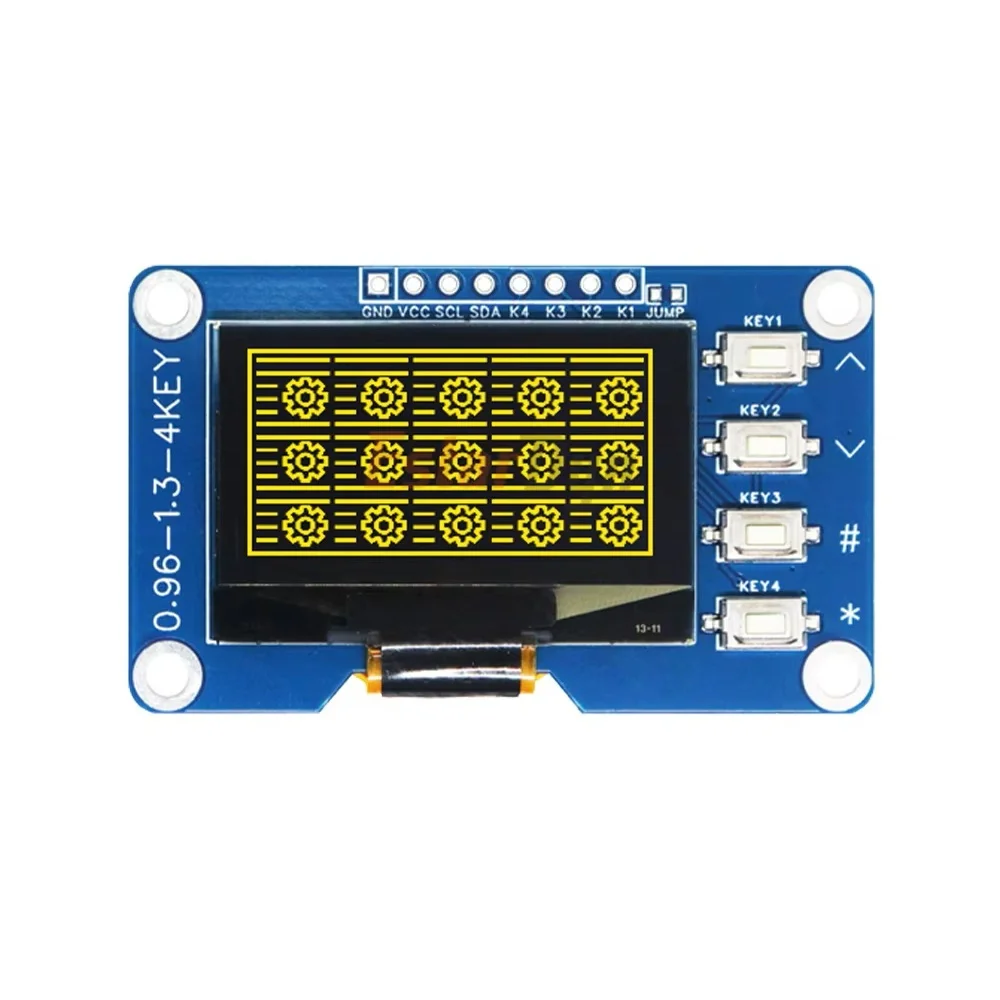

1.3 Inch OLED Display Module 4-KEY Yellow Keyboard SH1116 128×64 I2C Interface

1.3 Inch OLED Display Module 4-KEY Yellow Keyboard SH1116 128×64 I2C Interface is a highly integrated display and control solution designed for interactive embedded systems and smart hardware prototypes. This module combines a crisp 1.3-inch OLED screen driven by the efficient SH1116 controller with an integrated 4-key yellow tactile keyboard. Consequently, developers can implement both visual feedback and user navigation without needing separate control boards. The 128×64 pixel resolution delivers sharp, self-illuminating graphics with high contrast, making the text easily readable even in low-light environments. Furthermore, the simplified I2C interface requires minimal GPIO pins from your microcontroller. Therefore, you can easily connect this module to Arduino, ESP32, or Raspberry Pi boards to build portable devices, custom menu systems, and compact instruments.

Key Features:

• Integrated 4-Key Keypad: Features four yellow tactile push buttons on board, enabling direct menu control and navigation without external switches.
• High-Contrast OLED Screen: Emits light independently without requiring a backlight, providing exceptionally high contrast, deep blacks, and wide viewing angles.
• Efficient SH1116 Driver: Uses the reliable SH1116 display driver IC to render 128×64 pixels smoothly over a standard 2-wire serial bus.
• Simplified I2C Interface: Communicates via I2C protocol, which conserves valuable GPIO pins on your host microcontroller.
• Low Power Consumption: Consumes very little power during operation, making it an ideal choice for battery-powered handheld equipment.

Technical Specifications:

• Display Technology: OLED (Organic Light-Emitting Diode)
• Screen Size: 1.3 Inch (Diagonal)
• Resolution: 128 x 64 Pixels
• Driver IC: SH1116
• Communication Protocol: I2C Interface
• Operating Voltage: 3.3 V to 5.0 V DC
• Display Color: White / Blue (depending on specific screen glass option)
• Viewing Angle: > 160°
• Operating Temperature: −30°C to +70°C

Mechanical Specifications:

• Display Module Type: PCB Integrated Board with OLED Glass and Tactile Buttons
• Button Color: Yellow Cap Tactile Switches
• Mounting Holes: Four corner mounting holes for secure enclosure installation
• Connector Type: Standard 2.54 mm pitch pin headers

Dimensions:

• PCB Outer Dimensions: ≈ 65 mm x 37 mm
• Display Active Area: ≈ 29.42 mm x 14.7 mm
• Pin Pitch: 2.54 mm (0.1 inch)
• Board Thickness: ≈ 1.6 mm (excluding screen and buttons)

Pinout and Wiring:

• VCC: Connect to 3.3V or 5V power supply.
• GND: Connect to system power ground.
• SCL: Serial Clock Line for I2C bus communication.
• SDA: Serial Data Line for I2C bus communication.
• K1 to K4: Key output pins corresponding to the four yellow switches; connect these to microcontroller GPIO pins with internal pull-up resistors enabled.
• Wiring Note: However, ensure you verify the I2C address (typically 0x3C) in your software code prior to compiling your program.

Datasheet Reference:

• Download SH1116 Display Driver IC Datasheet

Commonly Used in:

• Handheld Controllers: Serving as the main user interface for field testing tools and portable diagnostic kits.
• Smart Home Interfaces: Providing display and button feedback for wall-mounted thermostat and lighting control panels.
• DIY Electronics: Integrating screens and inputs seamlessly into custom Arduino, ESP8266, and ESP32 projects.

Applications:

• Menu Navigation: Scrolling through system settings and selecting operating modes via the four tactile keys.
• Parameter Tuning: Adjusting thresholds, sensor calibration values, or timer durations on embedded systems.
• Status Monitoring: Displaying real-time telemetry, battery levels, and sensor readings in compact enclosures.

Equivalent Models:

• 1.3 Inch SSH1106 I2C OLED: A similar 128×64 display module using the SSH1106 controller, although it usually lacks the integrated 4-key keyboard.
• 0.96 Inch SSD1306 OLED with Keypad: A smaller display variant with integrated buttons for extra compact builds.
• 1.3 Inch SH1106 Keypad Shield: A shield form-factor version offering similar screen and key functionality for development boards.

Package Includes:

• 1 x 1.3 Inch OLED Display Module 4-KEY Yellow Keyboard SH1116 128×64 I2C Interface
