1.3 Inch OLED Display Module 16-KEY Yellow Keyboard SH1116 128×64 I2C Interface

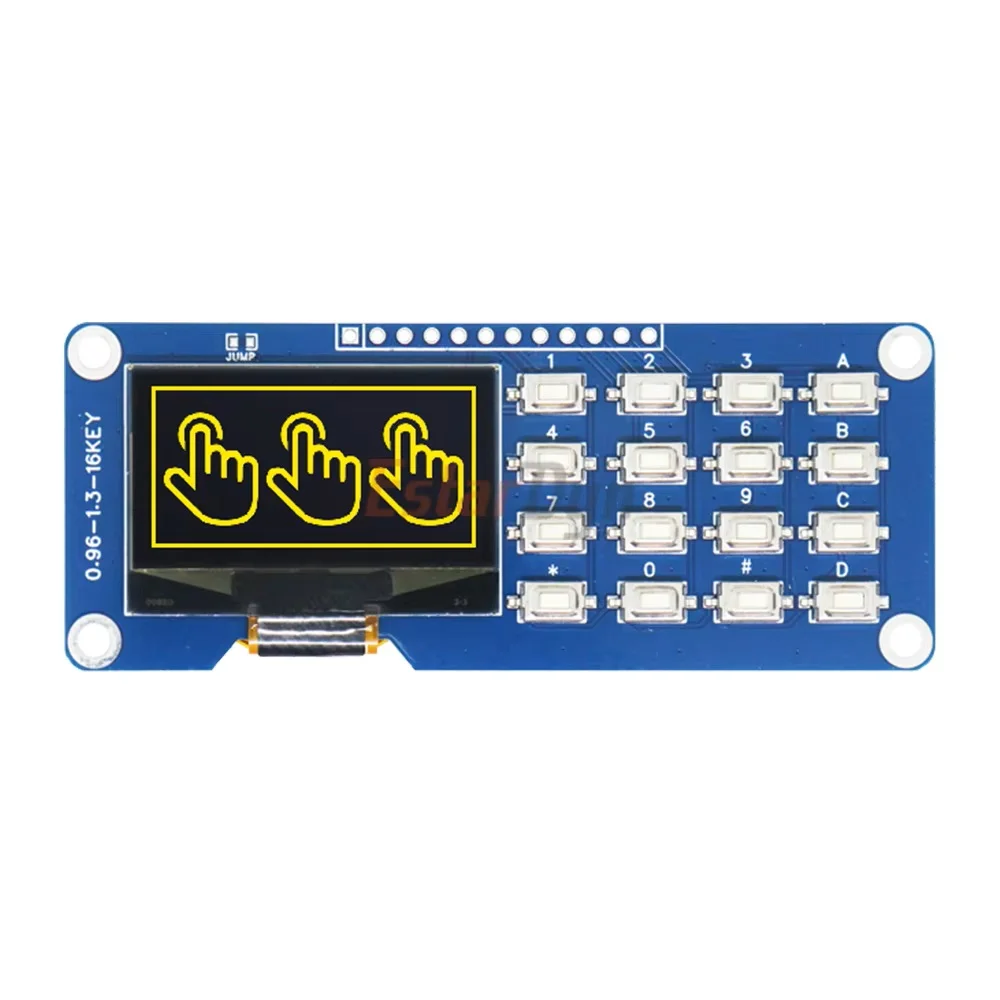

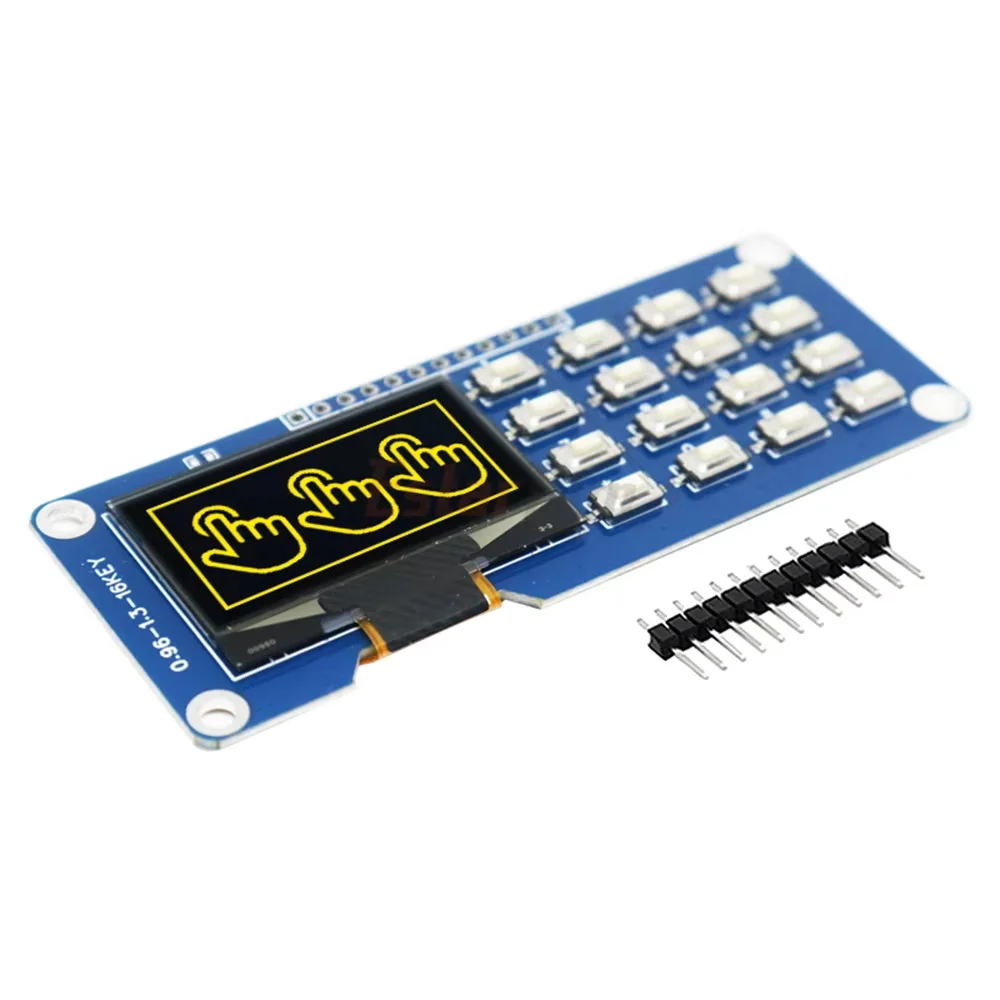

1.3 Inch OLED Display Module 16-KEY Yellow Keyboard SH1116 128×64 I2C Interface is a highly integrated human-machine interface (HMI) component designed to combine visual output and user input into a single compact board. This innovative module features a high-contrast 1.3-inch OLED screen driven by the advanced SH1116 controller, delivering crisp 128×64 resolution graphics without requiring a backlight. Consequently, it provides exceptional readability from extreme viewing angles while maintaining ultra-low power consumption. Furthermore, the built-in 16-key matrix keypad featuring distinct yellow keycaps allows users to enter numeric data and navigate menus effortlessly. Therefore, developers can significantly simplify their circuit design and save valuable micro-controller I/O pins by using this unified display and keypad module over a streamlined I2C bus interface.

Key Features:

• High-Contrast OLED Screen: Emits self-illuminating light to ensure vibrant visuals, deep blacks, and sharp text readability under various lighting conditions.
• Integrated 16-Key Keypad: Incorporates a full 4×4 matrix keyboard with eye-catching yellow keys, enabling immediate user input for menu selection and password entry.
• Efficient I2C Interface: Communicates over a simple 2-wire serial bus, which drastically reduces the required GPIO connections on host microcontrollers.
• Low Power Consumption: Consumes minimal electrical power because OLED technology lights only the active pixels, extending battery life in portable setups.
• Wide Viewing Angle: Offers an expansive viewing angle exceeding 160°, ensuring clear visual feedback from virtually any position.

Technical Specifications:

• Display Size: 1.3 Inch Diagonal
• Resolution: 128 x 64 Pixels
• Display Controller IC: SH1116 (Compatible with standard SH1106 command sets)
• Display Color: White or Blue on Black Background
• Keyboard Configuration: 16 Keys (4×4 Matrix) with Yellow Keycaps
• Operating Voltage: 3.3 V to 5.0 V DC
• Communication Protocol: I2C / I²C (Fast Mode support up to 400 kHz)
• Operating Temperature: −40°C to +70°C

Mechanical Specifications:

• Display Technology: Passive Matrix OLED (PMOLED)
• Keypad Type: Tactile Push-Button Switches with Molded Caps
• Substrate Material: FR-4 Glass Epoxy Printed Circuit Board
• Mounting Options: Integrated corner mounting holes for secure enclosure installation

Dimensions:

• PCB Board Size: ≈ 65 mm x 50 mm
• Active Display Area: ≈ 29.42 mm x 14.7 mm
• Pixel Pitch: ≈ 0.23 mm x 0.23 mm
• Header Pin Pitch: Standard 2.54 mm (0.1 inch)
• Total Thickness: ≈ 11.5 mm (Including buttons and rear component height)

Pinout and Wiring:

• VCC: Connect to 3.3V or 5V positive power supply rail.
• GND: Connect to main system ground (0 V).
• SCL: Connect to microcontroller I2C Serial Clock line (e.g., A5 on Arduino Uno / SCL on ESP32).
• SDA: Connect to microcontroller I2C Serial Data line (e.g., A4 on Arduino Uno / SDA on ESP32).
• INT / KEY_OUT: Interrupt signal output pin to alert the host controller when a key press occurs.
• Wiring Note: However, always ensure appropriate pull-up resistors are attached to the SCL and SDA lines if your microcontroller development board does not provide internal pull-ups.

Datasheet Reference:

• Download Sino Wealth SH1116 Controller Datasheet

Commonly Used in:

• Embedded Control Panels: Serving as the main user interface for customized industrial machines and DIY instrumentation.
• Access Control Systems: Functioning as a PIN entry terminal combined with live status displays for electronic door locks.
• Prototyping Platforms: Accelerating project development with Arduino, ESP32, and Raspberry Pi platforms.

Applications:

• Security Keypads: Entering passcodes and system parameters securely while receiving instant visual confirmation.
• Smart Home Interfaces: Adjusting environmental settings, timers, and lighting modes directly from a wall-mounted panel.
• Laboratory Test Equipment: Setting calibration factors, frequency values, and measurement modes on custom benchtop instruments.
• Portable Data Terminals: Capturing handheld user inputs and displaying real-time metrics in battery-operated field tools.

Equivalent Models:

• SH1106 1.3-Inch I2C Module: A stand-alone 1.3″ OLED module sharing identical display driver commands, however, it lacks the integrated 16-key matrix keyboard.
• SSD1306 0.96-Inch OLED with Keypad Shield: A similar HMI combination board featuring a smaller screen size and differing display memory layout.
• 1602 LCD with 4×4 Keypad Shield: A classic liquid crystal display combined with keypad input, offering lower resolution and larger physical dimensions.

Package Includes:

• 1 x 1.3 Inch OLED Display Module 16-KEY Yellow Keyboard SH1116 128×64 I2C Interface
