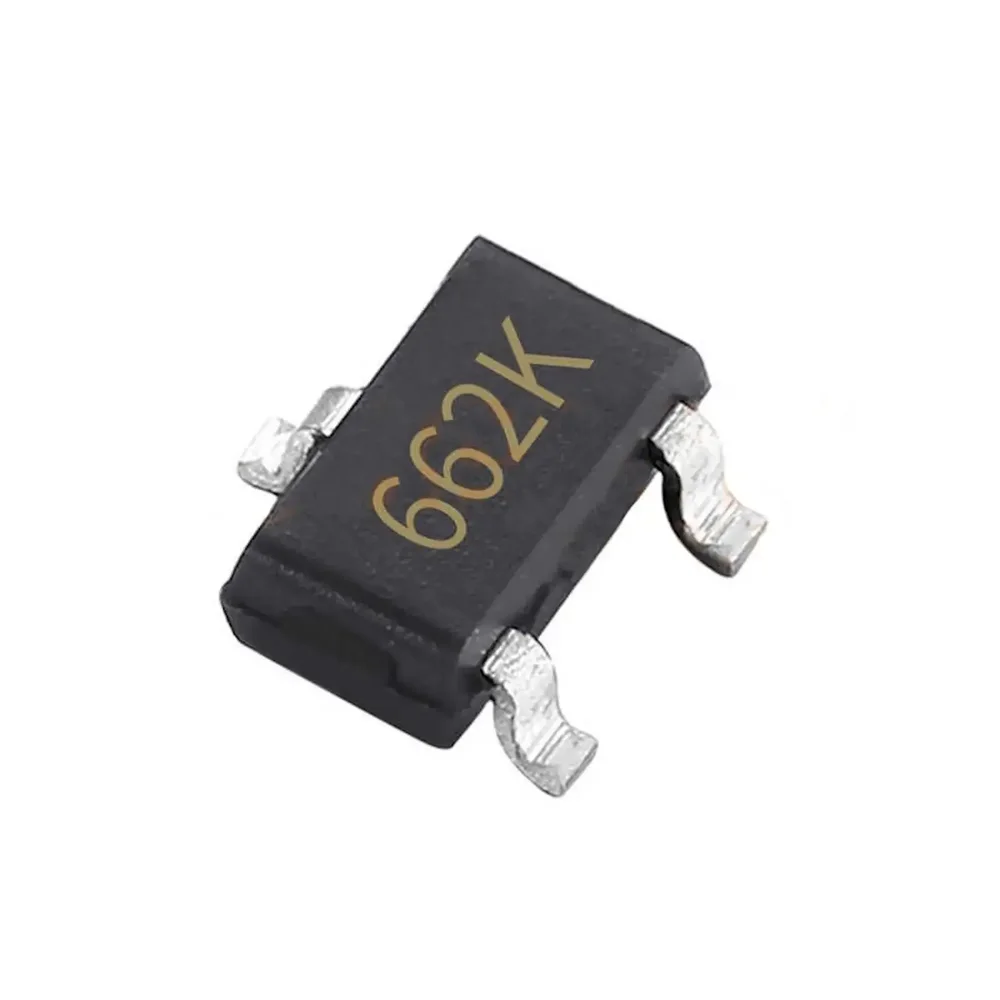

XC6206P332MR (662K) 3.3V 200MA LDO POSITIVE VOLTAGE REGULATOR SOT-23

10.00
You save

In stock

  •  Input Voltage Min: 1.8V
  •  Input Voltage Max: 6V
  •  Output Voltage Nom.: 3.3V
  •  Output Current: 200mA
  •  IC, POS VOLT REG, 0.3A, 3.3V, SOT23-3
  •  Dropout Voltage Vdo: 250mV
SKU: IFT00143-11 Category: Tag:
Quantity Discount (%) Price
1 - 9 10.00
10 - 19 1 % 9.90
20 - 29 2 % 9.80
30 - 49 3 % 9.70
50 - 99 5 % 9.50
100+ 10 % 9.00

Frequently Bought Together

This low dropout voltage regulator (LDO), housed in a compact SOT-23 package, offers a fixed output voltage of 3.3V and a maximum output current of 200mA. This article delves into the intricacies of the XC6206P332MR, exploring its key features, technical specifications, and potential applications.

The XC6206P332MR is a fixed output positive voltage regulator manufactured by Torex Semiconductor. It utilizes CMOS technology and laser trimming to achieve high precision and efficiency. Additionally, the device incorporates features like current limiting and over-temperature protection, ensuring safe and reliable operation in various applications.

Key Features of XC6206P332MR (662K) 3.3V 200mA LDO Positive Voltage Regulator SOT-23:
    • Fixed Output Voltage: Delivers a consistent voltage of 3.3V, ideal for powering various low-power electronics.
    • Low Dropout Voltage: Maintains high efficiency even with a small voltage difference between the input and output.
    • 200mA Output Current: Provides sufficient current to power a wide range of low-power devices.
    • Compact SOT-23 Package: Enables space-saving integration into printed circuit boards (PCBs).
    • Current Limiting: Protects the device from excessive current draw.
    • Over-Temperature Protection: Safeguards the regulator from overheating conditions.
Technical Specifications of XC6206P332MR (662K) 3.3V 200mA LDO Positive Voltage Regulator SOT-23:
    • Input Voltage Range: 1.8V to 6V
    • Output Voltage: 3.3V (Typ.)
    • Output Current: 200mA (Max.)
    • Dropout Voltage: 250mV (Typ.) at 100mA output current
    • Operating Temperature Range: -40°C to +85°C
    • Package: SOT-23
Mechanical Specifications of XC6206P332MR (662K) 3.3V 200mA LDO Positive Voltage Regulator SOT-23:
    • Package: SOT-23
    • Dimensions: Refer to datasheet for specific dimensions
    • Weight: 0.1g
    • Mounting Options: Surface Mount
    • XC6206P332MR 662K XC6206 3.3V/0.5A SOT-23
DataSheet:
Package Includes:
    • 1 X XC6206P332MR SOT XC6206P332 SOT23 XC6206 SMD(662K) 3.3V/0.5A Positive Fixed LDO Voltage regulator

Additional information

Weight .1 g
INPUT VOLTAGE

6V

OUTPUT CURRENT

200 mA

Warranty

  • This item is protected with a supplier warranty of 5 days from the time of delivery against manufacturing defects only.
  • Reimbursement or Replacement will be done against manufacturing defects only.
  • This warranty is void if the device has been damaged by negligence, mishandling, acts of third parties, accident, fire, Flood, lightning, power surges or outages, or other events or circumstances outside the control.
Be the first to review “XC6206P332MR (662K) 3.3V 200MA LDO POSITIVE VOLTAGE REGULATOR SOT-23”

Reviews

There are no reviews yet.
