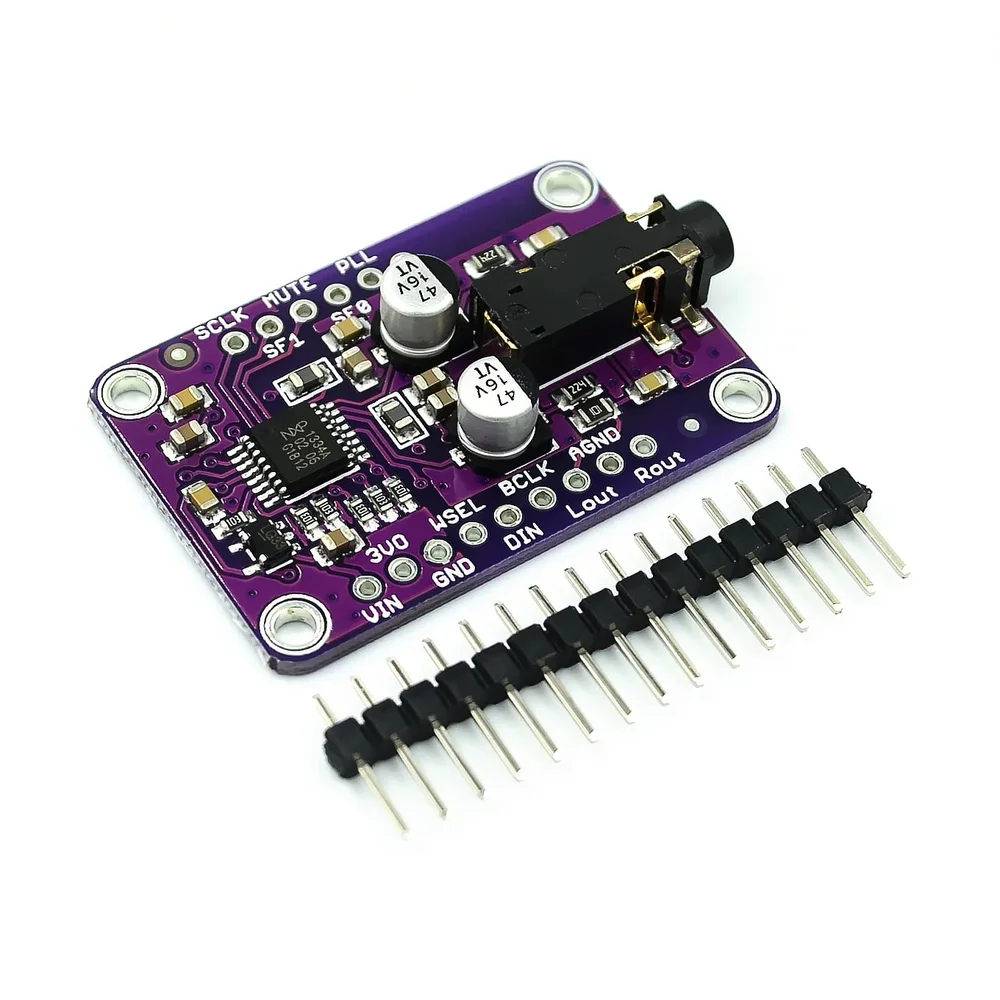

UDA1334A I2S DAC Stereo Decoder Module

310.00
You save

In stock

Category: Brand:

UDA1334A I2S DAC Stereo Decoder Module is a high-performance digital-to-analog converter (DAC) module based on the NXP UDA1334A chipset. It allows high-quality audio output from digital I2S sources such as Raspberry Pi, ESP32, STM32, or other microcontrollers with I2S support. This compact board offers 24-bit stereo audio playback with low distortion and noise, ideal for embedded audio systems and Hi-Fi applications.

Key Features:
  • I2S Input: Supports standard 3-wire I2S digital audio input (LRCK, BCLK, DATA).
  • High-Quality Audio: 24-bit resolution and up to 96kHz sample rate.
  • Built-in Headphone Amp: Supports direct headphone or amplifier connection.
  • Low Power Consumption: Ideal for battery-powered or portable systems.
  • Compact Size: Fits easily in embedded or DIY audio projects.
Technical Specifications:
  • DAC Chip: NXP UDA1334A
  • Input Interface: I2S (BCLK, LRCK, DIN)
  • Audio Output: Stereo Line Out (L/R)
  • Sampling Rate: Up to 96kHz
  • Bit Depth: 16, 18, 20, or 24-bit
  • THD+N: < 0.02%
  • Dynamic Range: 98 dB typical
  • Operating Voltage: 3.3V–5V DC
  • Power Consumption: Low power, < 10mA typical
Mechanical Specifications:
  • Board Dimensions: Approx. 25mm x 20mm
  • Mounting Holes: 2x M2 holes for secure mounting
  • Connectors: Standard 2.54mm pitch headers
Pinout and Connections:
  • GND: Ground
  • VCC: 3.3V to 5V power supply
  • BCLK: Bit Clock
  • LRCK: Left-Right Clock
  • DATA: I2S Serial Audio Input
  • OUT L: Left Audio Output
  • OUT R: Right Audio Output
Connection Guide:
  • Connect VCC and GND to 3.3V or 5V regulated supply.
  • Connect BCLK, LRCK, and DATA to I2S pins of microcontroller.
  • Connect OUT L and OUT R to amplifier or headphones.
Datasheet and Documentation:
  • Download UDA1334A Datasheet for electrical and timing specs
Applications:
  • Raspberry Pi Audio Output: Enhance Pi audio with Hi-Fi quality.
  • ESP32 Audio Projects: Add stereo DAC to ESP32 with I2S.
  • DIY Hi-Fi Systems: Used in custom Bluetooth or Wi-Fi speakers.
  • Portable Audio Players: Low-power stereo output for music devices.
  • Embedded Sound Systems: Used in vending machines, kiosks, etc.
Equivalent Models:
  • PCM5102A I2S DAC: Alternative DAC with similar specs.
  • MAX98357A: I2S DAC with built-in Class D amplifier.
  • ES9023: High-fidelity 24-bit DAC module.
Package Includes:
  • 1 x UDA1334A I2S DAC Stereo Decoder Module

Additional information

Weight 10 g
Be the first to review “UDA1334A I2S DAC Stereo Decoder Module”

Reviews

There are no reviews yet.
