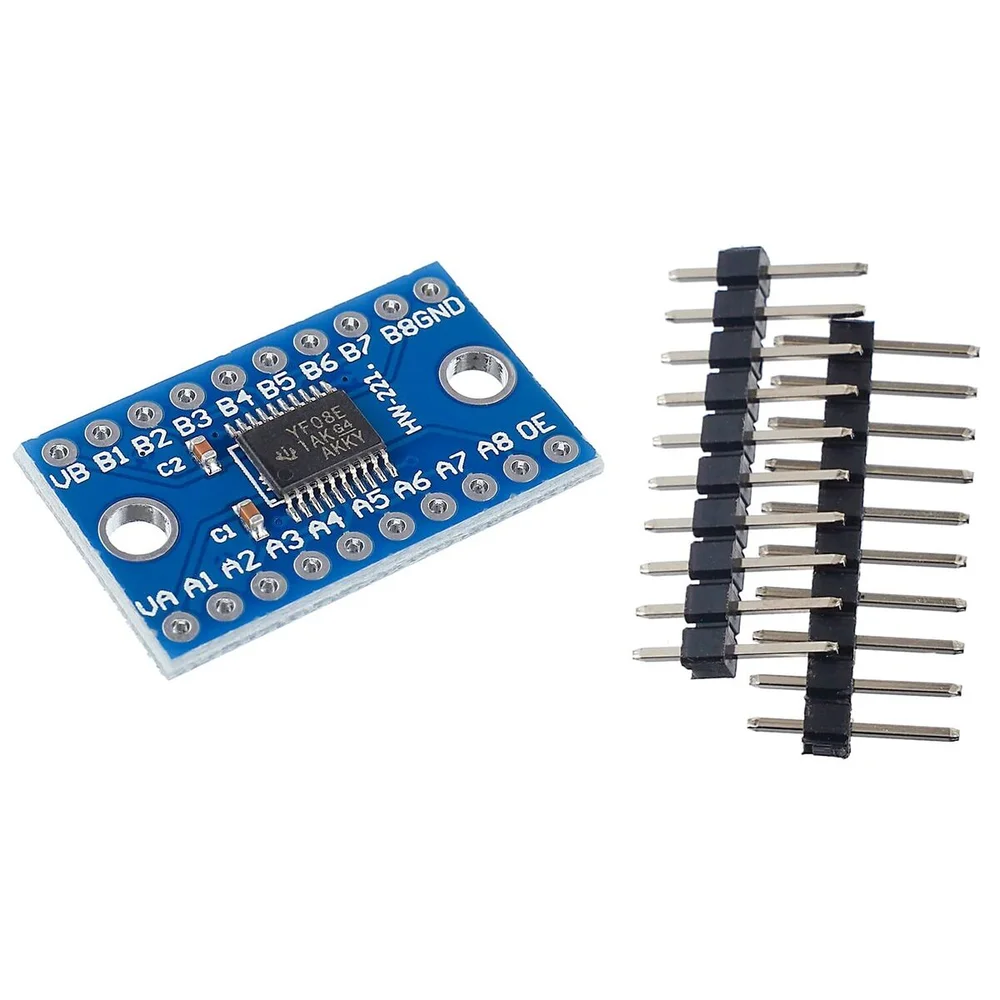

TXS0108E 8 CHANNEL LOGIC LEVEL CONVERTER

TXS0108E High-Speed Full-Duplex 8 Channel Logic Level Converter is a bi-directional voltage-level translator module designed for high-speed data transfer between systems operating at different logic levels. It supports voltage translation between 1.2V to 3.6V on the low-voltage side and 1.65V to 5.5V on the high-voltage side, making it ideal for interfacing 3.3V and 5V devices.

Key Features of TXS0108E:

• • 8 Independent Channels: Allows level shifting for 8 separate signals.
  • Bi-Directional Communication: Supports full-duplex voltage translation automatically.
  • High-Speed Operation: Up to 110 Mbps for push-pull applications.
  • Auto Direction Sensing: No need for a direction control pin.
  • Wide Voltage Compatibility: 1.2V–3.6V (LV1 side), 1.65V–5.5V (LV2 side).

Technical Specifications of TXS0108E:

• • Operating Voltage: 1.2V to 3.6V (VCCA), 1.65V to 5.5V (VCCB)
  • Channels: 8
  • Communication Speed: Up to 110 Mbps (push-pull), 2 Mbps (open-drain)
  • Power Supply: Dual supply (VCCA for low voltage, VCCB for high voltage)
  • Standby Current: Typically <1 µA
  • Package Type: SOP-20 (on module)
  • Board Size: Approx. 28mm x 18mm

Schematic Diagram and Pinout of TXS0108E:

• • Pinout:
    • VCCA: Lower voltage side (e.g., 1.8V or 3.3V)
    • VCCB: Higher voltage side (e.g., 5V)
    • GND: Ground connection
    • A1–A8: Low voltage logic pins
    • B1–B8: High voltage logic pins
  • Schematic Diagram: Internally uses TXS0108E IC to sense direction and handle automatic voltage translation per channel.

Applications of TXS0108E:

• • I2C/SPI/UART Level Shifting: Interface devices with different logic levels.
  • Microcontroller Interfacing: Connect 5V Arduino to 3.3V modules like ESP8266, NRF24L01, etc.
  • SD Card Communication: Safely communicate with 3.3V SD cards from 5V microcontrollers.
  • Sensor/Display Interfacing: Bridge different logic levels for sensors, TFT displays, and other modules.

Equivalent Models of TXS0108E:

• • TXB0108: Similar 8-channel level shifter with slightly different drive characteristics.
  • 74LVC245: Octal bus transceiver for voltage level shifting applications.

Datasheet:

• • Download TXS0108E Datasheet

Keywords for TXS0108E:

• • TXS0108E
  • Logic Level Converter
  • 8 Channel Level Shifter
  • Bi-directional Level Shifter
  • 5V to 3.3V Converter

Package Includes:

• • 1 x TXS0108E 8 Channel Bi-Directional Logic Level Converter Module
