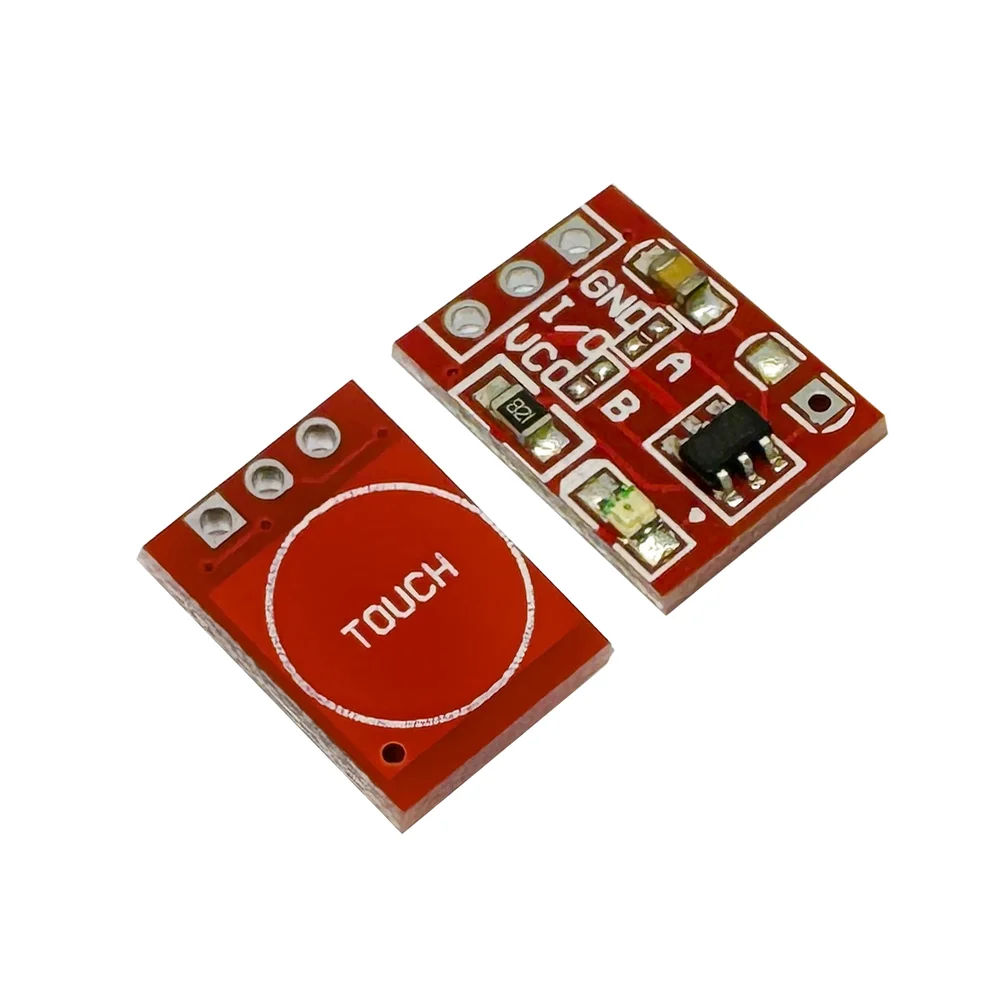

TTP223 CAPACITIVE TOUCH SENSOR MODULE
₹12.00
You save
- Simple to Use, Auto Calibration
- Output Status Indicator LED
- Output can configured be Active High or Low
- Output Mode can be configured to Toggle or Momentary
- Easy to replace mechanical key outputs
- Output can be directly connected to Microcontroller’s Input pins
| Quantity | Discount (%) | Price |
|---|---|---|
| 1 - 19 | — | ₹12.00 |
| 20 - 39 | — | ₹13.85 |
| 40 - 49 | — | ₹13.70 |
| 50 - 99 | — | ₹13.50 |
| 100+ | — | ₹12.00 |
The TTP223 Capacitive Touch Sensor Module is a compact, user-friendly sensor designed to detect touch input through capacitive sensing. It replaces traditional mechanical buttons with a touch-sensitive interface, enhancing durability and aesthetics in interactive electronic projects.
Key Features of TTP223 Capacitive Touch Sensor Module:
- Touch Detection: Uses capacitive sensing to detect human touch input.
- Digital Output: Provides a high or low signal on touch.
- Compact Size: Small PCB design ideal for embedded applications.
- Low Power Consumption: Suitable for battery-powered devices.
- Adjustable Sensitivity: Sensitivity can be configured via onboard components.
Technical Specifications of TTP223 Capacitive Touch Sensor Module:
- Operating Voltage: 2.0V to 5.5V DC
- Output Type: Digital (Active High by default)
- Response Time: 60ms (Fast Mode), 220ms (Low Power Mode)
- Current Consumption: 1.5µA (Low Power Mode), 3.5mA (Fast Mode)
- Output Pin Drive Capacity: Up to 500mA
Mechanical Specifications of TTP223 Capacitive Touch Sensor Module:
- Module Dimensions: 15mm x 11mm (L x W)
- Mounting Holes: None
- PCB Color: Typically Blue or Red
- Weight: Approximately 1 gram
Pinout and Connection of TTP223 Capacitive Touch Sensor Module:
- OUT: Digital Output (High on touch)
- VCC: Power Supply (+2V to +5.5V)
- GND: Ground
Schematic Diagram and Wiring of TTP223 Capacitive Touch Sensor Module:
- Connection: Connect VCC to 3.3V/5V, GND to ground, and OUT to microcontroller input pin.
- Wiring Tips: Keep touch pad surface unobstructed and avoid noise-prone wiring for accuracy.
Datasheet of TTP223 Capacitive Touch Sensor Module:
Applications of TTP223 Capacitive Touch Sensor Module:
- Touch-activated Switches: Ideal for modern user interfaces.
- Home Automation: Used in lighting and control systems.
- Consumer Electronics: Integrated in smart gadgets and toys.
- DIY Projects: Popular in Arduino and Raspberry Pi applications.
Equivalent of TTP223 Capacitive Touch Sensor Module:
- TTP224: 4-channel variant for multiple touch inputs
- AT42QT1010: Advanced capacitive touch sensor with similar functionality
Package Includes:
- 1 x TTP223 Capacitive Touch Sensor Module
