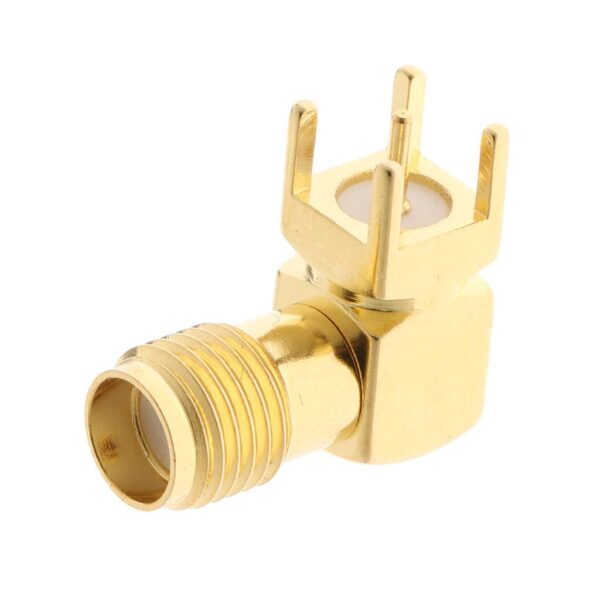

SMA-KWE FEMALE RF ANTENNA CONNECTOR – RIGHT ANGLE

Reverse-polarity SMA (RP-SMA or RPSMA) is a variation of the SMA connector specification which reverses the gender of the interface. This non-standard type SMA connector finds common applications in WiFi and WLAN systems and is the most popular reverse polarity RF connector. The reverse polarity characteristic is achieved with a reverse mating interface in which the RP-SMA connector male houses the female receptacle while the RP-SMA connector female/jack houses the center pin. SMA Connector Female – Right Angle, This is an SMA right-angled connector, highly suitable for prototyping with cellular devices and GPS that needs an antenna connection.

The female signal pin present in this connector correctly mate with the original SMA type antenna and ensures reliable functioning. This product know as 3DBI Antenna connector, Antenna connector, Antenna Connector, Antenna Female Connector, ESP8266 Serial WIFI wireless Gain Antenna, ESP8266 serial WIFI wireless transceiver module MT7681 3DBI gain antenna connector, Gain Antenna, GPRS Antenna, GPS Antenna connector, GSM Antenna connector, MT7681 3DBI gain antenna connector, SMA Connector Female, SMA Female Connector.

Electrical Characteristics:

• • Impedance：50 ohm
  • Frequency Range: 0~6 GHz
  • VSWR: Straight type ≦ 1.3max / R/A type ≦ 1.5max
  • Dielectric Withstanding Voltage:1000 V rms min for RG142, RG405
  • 750 V rms min. for RG316, RG402
  • 500v rms min. for RG178
  • Working Voltage: 500 V rms max. for RG142, RG405
  • 375 V rms max. for RG316, RG402
  • 170 V rms max. for RG178
  • Center Contact Resistance ≦ 6.0 mΩ  (Milliohms max.)
  • Outer Contact Resistance ≦ 2.0 mΩ  (Milliohms max.)
  • Insultation Resistance ≧ 5 x 10³ mΩ (Megohms min.)

Mechanical Characteristics:

• • Coupling: 1/4-36 thread
  • Contact Retention: 15 in-lbs min.
  • Coupling nut torque: 30 in-lbs. min.
  • Durability(mating) ≧ 500 cycles (For Beryllium Copper Contact).

Environmental Characteristics:

• • Temperature Range: -55°C ~ +155°C
  • Vibration: MIL-STD-202 Method204
  • Corrosion resistance: MIL-STD-202 Method 101

Package Includes:

• • 1 x PCB Mount SMA Connector Angled DIP Type Female
