SMA ANTENNA SOCKET EXTERNAL THREAD-MALE

These connectors are designed to provide compatibility with industry-grade 50 ohm and 75-ohm cables for longer operational life with gold and nickel plating for environmental protections.

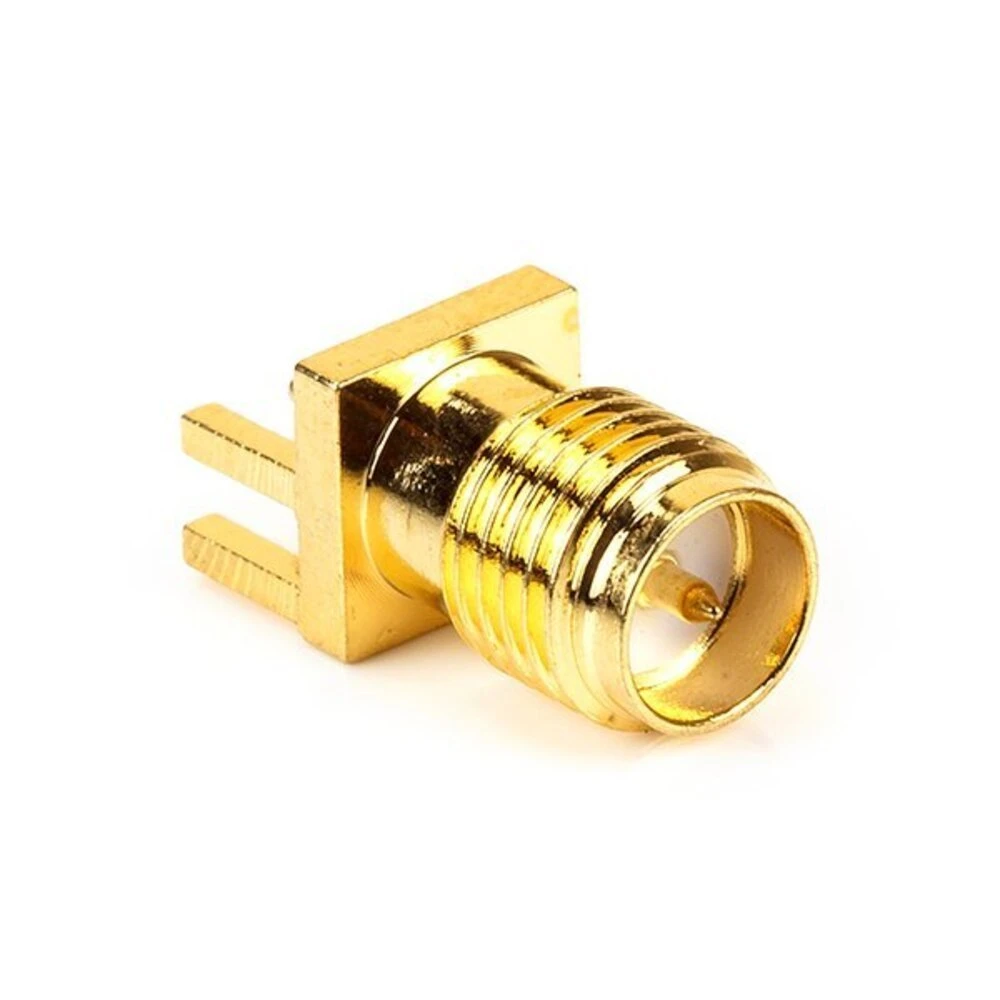

• • SMA male Connector, Straight,50Ohm, Through Hole, PCB Mount, Copper, Gold Plating
  • Excellent electrical performance up to 18GHz with low reflection
  • Thread type coupling mechanism ensure small loss and high security in a compact design

Electrical Characteristics:

• • Impedance 50 ohm
  • Frequency Range: 0~6 GHz
  • VSWR: Straight type 1.3max / R/A type 1.5max
  • Dielectric Withstanding Voltage: 1000 V rmsmin for RG142, RG405
  • 750 V rms min. for RG316, RG402
  • 500v rms min. for RG178
  • Working Voltage: 500 V rms max. for RG142, RG405
  • 375 V rms max. for RG316, RG402
  • 170 V rms max. for RG178
  • Center Contact Resistance 6.0 m (Milliohms max.)
  • Outer Contact Resistance 2.0 m (Milliohms max.)
  • Insulation Resistance 5 x 10 m (Megohms min.)

Mechanical Characteristics:

• • Coupling: 1/4-36 thread
  • Contact Retention: 15 in-lbs min.
  • Coupling nut torque: 30 in-lbs. min.
  • Durability(mating) 500 cycles (For Beryllium Copper Contact)

Package Includes:

• • 1 X SMA male PCB Connector Vertical Type 50Ohm Gold Plating
